Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI RF 600 1995

CYLINDER

Item numbers

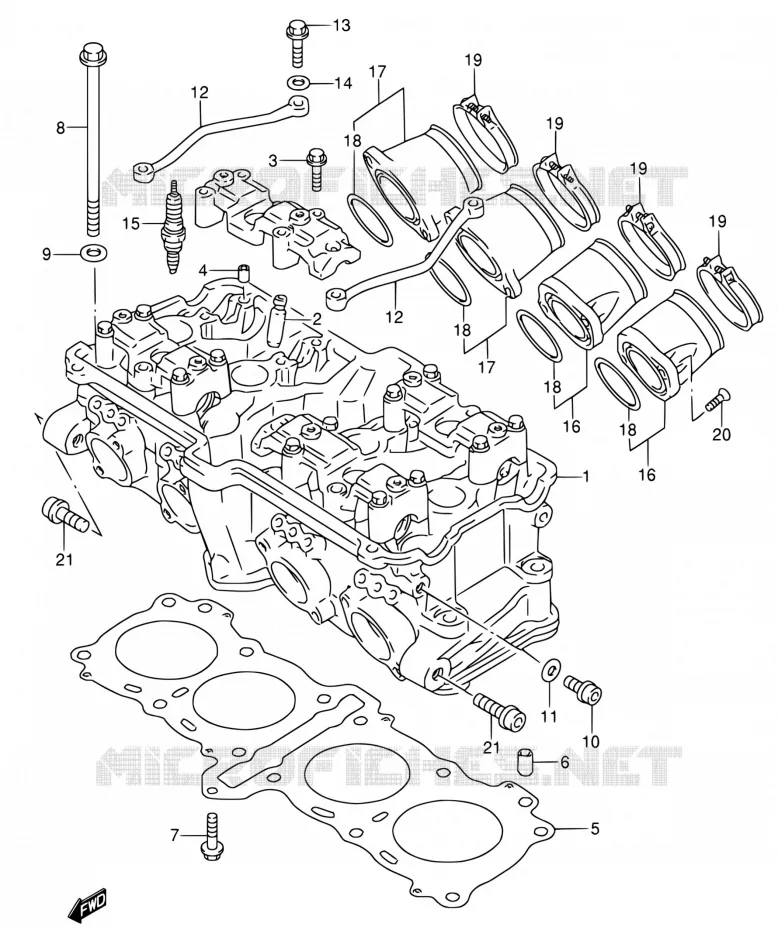

CYLINDER HEAD Suzuki MOTO 600 RF 1995 RF600RS/RF600RUS
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
15
15
15
15
16
16
16
16
17
17
17
17
18
18
18
18
19
19
19
19
20
21
21
1
HEAD ASSY, CYLINDER

11100-21E00-000   1110021E00000

1110021E00000
Not available
1
HEAD ASSY, CYLINDER

11100-21E10-000   1110021E10000

1110021E10000
Not available
2
.GUIDE, VALVE

11115-17E70-000   1111517E70000

1111517E70000

Unit Price

3
.BOLT (6X45)
.BOLT (6X45)

09103-06165-000   0910306165000

0910306165000

Unit Price

4
PIN(8X11)<br />.PIN
PIN(8X11)
.PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
DISCONTINUE
GASKET, CYLINDER HEAD

11141-18E01-000   1114118E01000

1114118E01000
Not available
6
DOWEL PIN<br />PIN
DOWEL PIN
PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

7
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

8
BOLT (10X160)
BOLT (10X160)

09103-10272-000   0910310272000

0910310272000

Unit Price

9
WASHER(10.5X19X2)<br />WASHER
WASHER(10.5X19X2)
WASHER

09160-10082-000   0916010082000

0916010082000

Unit Price

10
BOLT

07120-08163-000  

07120-0816A-000
 0712008163000

Unit Price

11
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

12
PIPE, OIL

11131-17E00-000   1113117E00000

1113117E00000
Not available
13
CAM SFT HOUSING BOLT<br />BOLT (6X39)
CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price

14
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

15
CR8E, NGK<br />SPARK PLUG (NGK,CR8E)
CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000   0948200456000

0948200456000

Unit Price

15
CR9E, NGK<br />SPARK PLUG (NGK,CR9E)
CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000   0948200458000

0948200458000

Unit Price

15
CR10E, NGK<br />SPARK PLUG (NGK,CR10E)
CR10E, NGK
SPARK PLUG (NGK, CR10E)

09482-00460-000   0948200460000

0948200460000

Unit Price

16
DISCONTINUE
PIPE, INTAKE NO.1

13101-21E00-000   1310121E00000

1310121E00000
Not available
16
PIPE, INTAKE NO.1

13101-21E11-000   1310121E11000

1310121E11000
Not available
17
DISCONTINUE
PIPE, INTAKE NO.2

13102-21E00-000   1310221E00000

1310221E00000
Not available
17
PIPE, INTAKE NO.2

13102-21E11-000   1310221E11000

1310221E11000
Not available
18
O RING
.O RING (D:2.4, ID:41.7)

09280-42003-000   0928042003000

0928042003000

Unit Price

19
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price

20
SCREW, 6X16

09120-06010-000  

09120-06010-XC0
 0912006010000

Unit Price

21
BOLT

07120-10303-000  

07120-1030B-000
 0712010303000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of RF. Let us know if you have any questions.

Genuine parts for Suzuki 600 RF 1995

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 600 RF 1995

Select your Suzuki 1995 model

600 RF 1995 RF600RS/RF600RUS

Suzuki RF

Displacement: 600 cc
Year: 1995
Model code RF600RS / RF600RUS
