Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL COOLER - OIL FILTER

WATER PUMP FOR SUZUKI RF 600 1995

RADIATOR

Item numbers

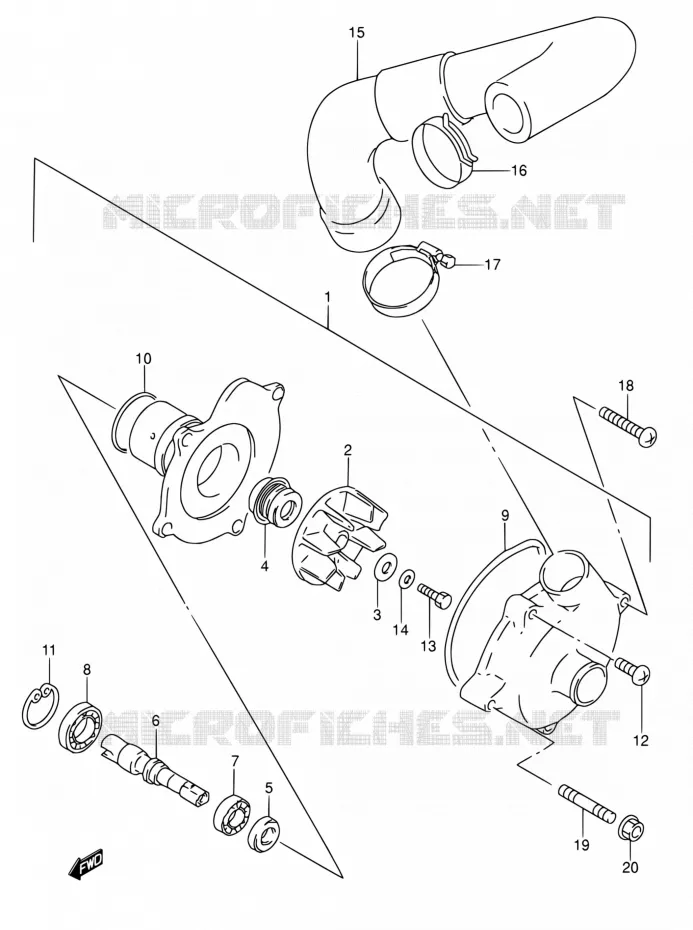

WATER PUMP Suzuki MOTO 600 RF 1995 RF600RS/RF600RUS
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
1
DISCONTINUE
PUMP ASSY, WATER

17400-17E01-000  

1740017E01000
Not available
2
IMPELLER

17491-17E00-000  

17491-17E01-000
 1749117E00000

Unit Price

3
WASHER<br />.GASKET
WASHER
.GASKET

09168-06025-000   0916806025000

0916806025000

Unit Price

4
SEAL, MECHANICAL

17470-46A00-000  

17470-02F11-000
 1747046A00000

Unit Price

5
OIL SEAL, WATER PUMP

17461-38A00-000  

09283-10004-000
 1746138A00000

Unit Price

6
DISCONTINUE
.SHAFT, WATER PUMP

17511-17E01-000   1751117E01000

1751117E01000
Not available
7
.BEARING (10X26X8)
.BEARING (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

8
BALL BEARING<br />.BEARING (12X28X8)
BALL BEARING
.BEARING (12X28X8)

09262-12001-000   0926212001000

0926212001000

Unit Price

9
O RING
O RING

17418-33400-000  

17418-33401-000
 1741833400000

Unit Price

10
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

12
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

13
BOLT,WATER PUMP<br />.BOLT (6X13)
BOLT, WATER PUMP
.BOLT (6X13)

09100-06099-000   0910006099000

0910006099000

Unit Price

14
ENG OIL CASE WA **S1<br />.LOCK WASHER
ENG OIL CASE WA **S1
.LOCK WASHER

09164-06006-000   0916406006000

0916406006000

Unit Price

15
DISCONTINUE
HOSE, WATER PUMP OUTLET

17854-17E01-000   1785417E01000

1785417E01000
Not available
16
CLIP

09401-26404-000  

09401-26407-000
 0940126404000

Unit Price

17
CLAMP
CLAMP

09402-38511-000   0940238511000

0940238511000

Unit Price

18
02112-0635B
SCREW

02112-06353-000  

0211206353000
Not available
19
BOLT (6X35)

09108-06117-000   0910806117000

0910806117000
Not available
20
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki of RF. Let us know if you have any questions.

Genuine parts for Suzuki 600 RF 1995

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 600 RF 1995

Select your Suzuki 1995 model

600 RF 1995 RF600RS/RF600RUS

Suzuki RF

Displacement: 600 cc
Year: 1995
Model code RF600RS / RF600RUS
