Displacement

Model

Year

Finish line

Parts catalogue

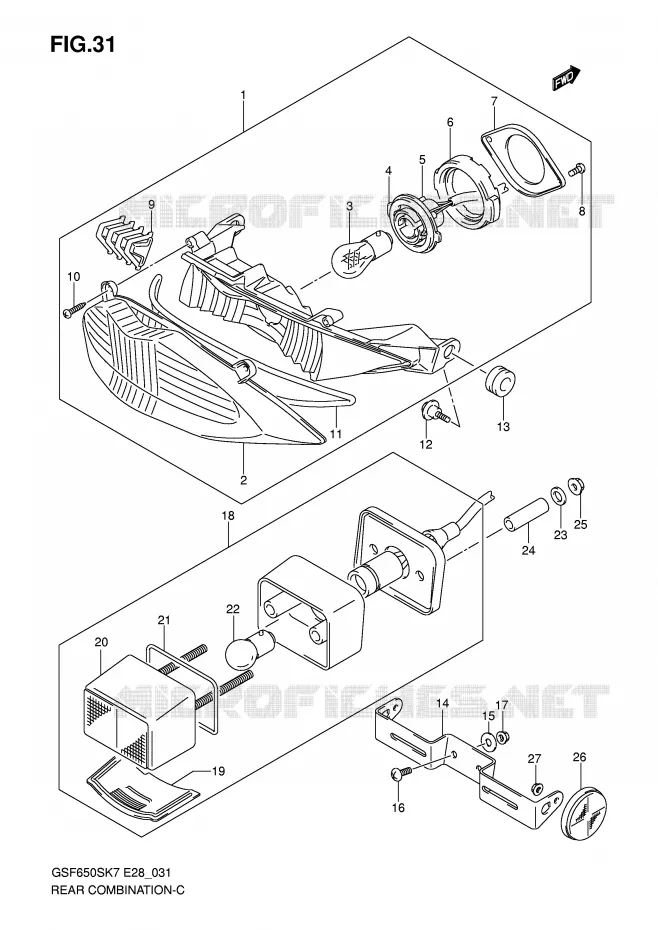

Parts diagram

INDICATORS

TAIL LIGHT FOR SUZUKI BANDIT 650 2007

WIRING HARNESS

LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-38G51-000 3571038G51000

$308,97

Unit Price

LENS

35712-38G50-000 3571238G50000

$99,97

Unit Price

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

PLATE, NO.1

35716-48B21-000 3571648B21000

$30,97

Unit Price

SOCKET & CORD

35718-38G00-000 3571838G00000

$51,97

Unit Price

CUSHION

35765-48B21-000 3576548B21000

$16,97

Unit Price

PLATE, NO.2

35736-48B21-000 3573648B21000

$21,97

Unit Price

SCREW

03211-0412A-000 032110412A000

$3,97

Unit Price

CUSHION

35716-38G00-000 3571638G00000

$34,97

Unit Price

SCREW

03211-0416A-000 032110416A000

$2,97

Unit Price

GASKET

35713-38G00-000 3571338G00000

$26,97

Unit Price

SCREW(5X16.2)
SCREW, REAR COMB

09139-05080-000 0913905080000

$5,97

Unit Price

CUSHION, REAR COMB LAMP

09320-10054-000

09320-10073-000

$4,97

Unit Price

BRACKET, LICENSE PLATE

35927-38G50-000 3592738G50000

$20,97

Unit Price

WASHER 6.5X10X1.2
WASHER, BRACKET

09160-06077-000 0916006077000

$3,97

Unit Price

SCREW
SCREW, BRACKET

02142-0616B-000 021420616B000

$3,97

Unit Price

NUT
NUT, LICENSE PLATE BRK

08316-1006B-000 083161006B000

$3,97

Unit Price

35910-41G51
LAMP ASSY, LICENSE

35910-41G50-000 3591041G50000

Not available

LENS, LICENSE LAMP

35912-41G00-000

35912-41G01-000

$33,97

Unit Price

COVER, LICENSE LAMP
COVER

35917-41G00-000 3591741G00000

$42,97

Unit Price

GASKET

35913-41G00-000 3591341G00000

$23,97

Unit Price

BULB(12V10W)
BULB (12V 5W)

09471-12140-000

Not available

WASHER 6.5X10X1.2
WASHER, LICENSE

09160-06077-000 0916006077000

$3,97

Unit Price

DISCONTINUE
SPACER, LICENSE

09180-06344-000 0918006344000

Not available

NUT
NUT, LICENSE

08316-1006B-000 083161006B000

$3,97

Unit Price

REFLECTOR ASSY, RR SIDE
REFLEX REFLECTOR ASSY, RR SIDE

35970-14A20-000 3597014A20000

$20,97

Unit Price

NUT

08316-1005B-000 083161005B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.

Select your Suzuki 2007 model
