LEVERS - HANDGRIPS

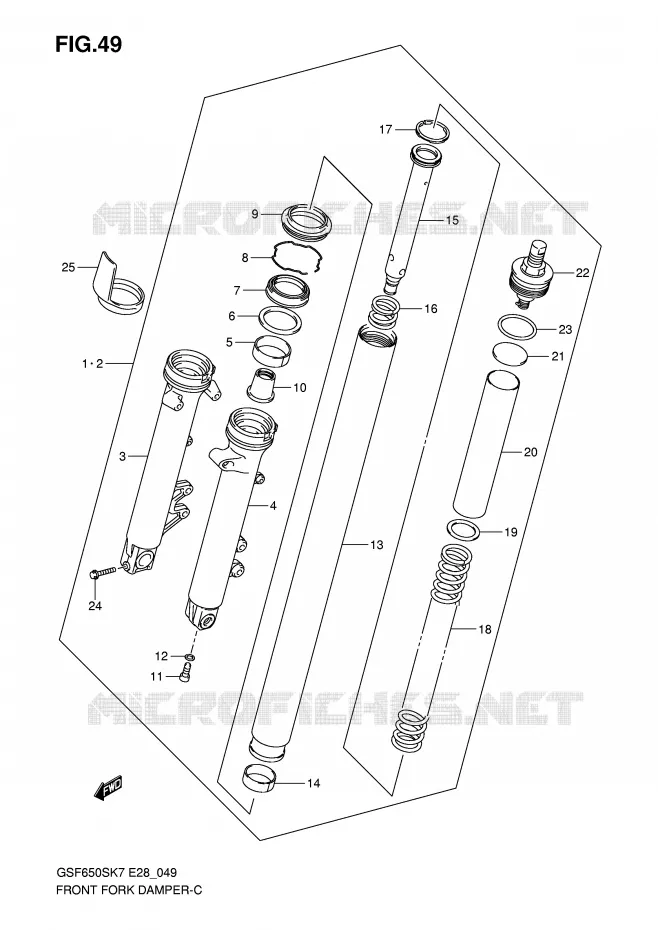

FRONT FORK FOR SUZUKI BANDIT 650 2007

STEERING COLUMN

DISCONTINUE
DAMPER ASSY, FRONT FORK RH (SILVER)

51103-17H20-000 5110317H20000

Not available

DAMPER ASSY, FRONT FORK RH (BLACK)

51103-17H50-000 5110317H50000

Not available

DAMPER ASSY, FRONT FORK LH (SILVER)

51104-17H20-000 5110417H20000

Not available

DAMPER ASSY, FRONT FORK LH (BLACK)

51104-17H50-000 5110417H50000

Not available

TUBE, OUTER, R
TUBE, OUTER RH (BLACK)

51130-17H30-000 5113017H30000

$643,97

Unit Price

DISCONTINUE
TUBE, OUTER RH (SILVER)

51130-17H00-000 5113017H00000

Not available

TUBE, OUTER, L
TUBE, OUTER LH (BLACK)

51140-17H30-000 5114017H30000

$643,97

Unit Price

DISCONTINUE
TUBE, OUTER LH (SILVER)

51140-17H00-000 5114017H00000

Not available

METAL, SLIDE
METAL, SILDE

51167-26E10-000 5116726E10000

$27,97

Unit Price

WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL

51153-10G50-000 5115310G50000

$19,97

Unit Price

RING, OIL SEAL STOPPER
RING, STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, DUST

51173-14F00-000 5117314F00000

$20,97

Unit Price

PIECE, OIL LOCK

51195-33D10-000 5119533D10000

$24,97

Unit Price

BOLT

51147-05H00-000 5114705H00000

$8,97

Unit Price

GASKET
WASHER

51148-41310-000 5114841310000

$3,97

Unit Price

TUBE, INNER

51110-17H00-000 5111017H00000

$579,97

Unit Price

PISTON
BUSH, SLIDE

51121-23EA0-000 5112123EA0000

$27,97

Unit Price

CYLINDER

51146-17H20-000 5114617H20000

Not available

SPRING, REBOUND
SPRING

51177-06C00-000 5117706C00000

$16,97

Unit Price

RING, PISTON

51196-31F00-000 5119631F00000

$13,97

Unit Price

SPRING
SPRING, FRONT

51171-17H20-000 5117117H20000

$146,97

Unit Price

WASHER, STEM HEAD(24.5X34X1.6)
SEAT, SPRING LOWER

51356-27C00-000 5135627C00000

$8,97

Unit Price

COLLAR, SPRING

51176-12D10-000 5117612D10000

Not available

WASHER, FR FORK SPRING
O RING

51192-27A00-000 5119227A00000

$10,97

Unit Price

CAP

51351-31FA0-000

Not available

O RING

09280-32001-000 0928032001000

$3,97

Unit Price

BOLT

51166-24F50-000 5116624F50000

$20,97

Unit Price

PROTECTOR

51201-31F00-000 5120131F00000

$22,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
