SPEEDOMETER

HEADLIGHT FOR SUZUKI BOULEVARD 650 1991

INDICATORS

Item numbers

35100-38A30-999

Not available

DISCONTINUE
UNIT, LAMP

35121-38A30-000 3512138A30000

Not available

RIM

35111-38A00-000 3511138A00000

$60,97

Unit Price

RING, MOUNTING

35130-38A00-000 3513038A00000

$25,97

Unit Price

COVER, SOCKET

35173-38A00-000 3517338A00000

$19,97

Unit Price

SCREW

09125-05102-000

02112-05167-000

$2,97

Unit Price

WASHER(5.5X18X1)

35138-45230-000

09160-05045-000

$3,97

Unit Price

SPACER

35133-45230-000 3513345230000

$4,97

Unit Price

CUSHION

35139-45230-000 3513945230000

$2,97

Unit Price

NUT

35155-48510-000 3515548510000

$3,97

Unit Price

CLAMP(L:65)

09404-05401-000

09404-06039-000

$3,97

Unit Price

SCREW , 4X50

35151-49430-000

09125-04020-000

$4,97

Unit Price

HEADLAMP ADJUSTER SPRING

35154-49430-000 3515449430000

Not available

NUT

35135-45600-000 3513545600000

$6,97

Unit Price

SOCKET

36853-38A00-000 3685338A00000

$18,97

Unit Price

BULB(12V, 5W)
BULB (12V, 60/55W)

09471-12060-000

Not available

SCREW

02142-05128-000

02142-05127-000

$3,97

Unit Price

REFLEX REFLECTOR, FR SIDE
REFLEX REFLECTOR, FRONT SIDE

35950-43431-000 3595043431000

$20,97

Unit Price

08310-0005A

08310-11056-000

Not available

WASHER, LOCK

08321-21056-000

08321-01053-000

$2,97

Unit Price

WASHER (5.2X16X1)

09160-05013-000 0916005013000

$2,97

Unit Price

BRACKET, FR SIDE RR, R
BRACKET, FRONT SIDE RH

35956-24B00-000 3595624B00000

$6,97

Unit Price

BRACKET, FR SIDE RR, L
BRACKET, FRONT SIDE LH

35957-24B00-000 3595724B00000

$6,97

Unit Price

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

WASHER (5.2X16X1)

09160-05013-000 0916005013000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

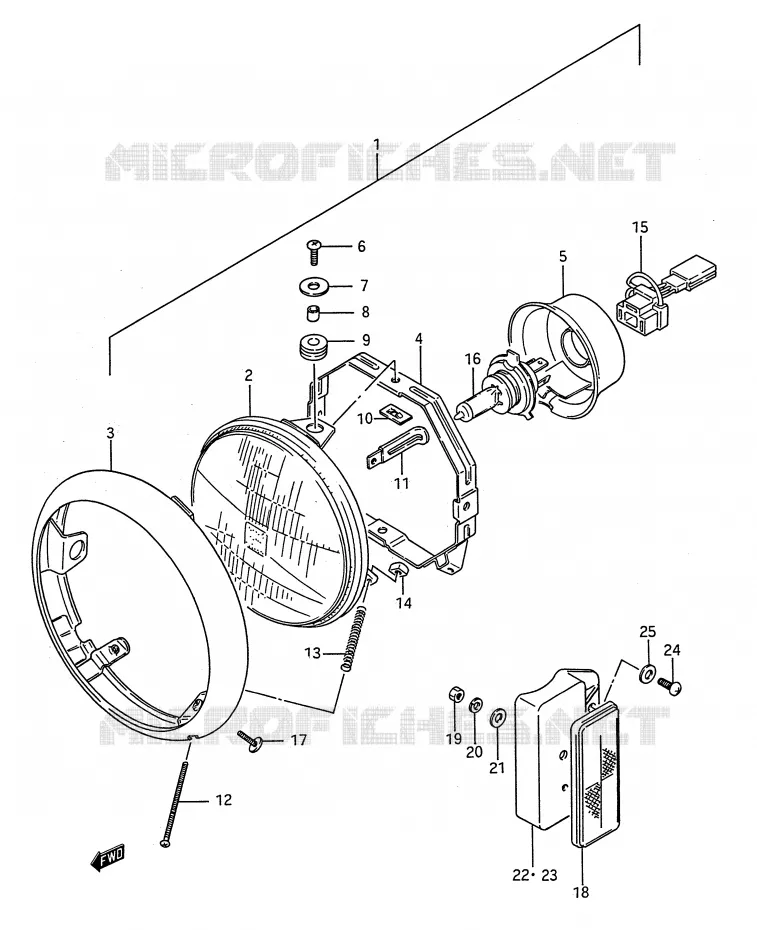

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki of BOULEVARD. Let us know if you have any questions.
