Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT MASTER CYLINDER (LS650PG / PJ / PK / PL,MODEL M / N / P)

SWINGARM FOR SUZUKI BOULEVARD 650 1991

REAR WHEEL

Item numbers

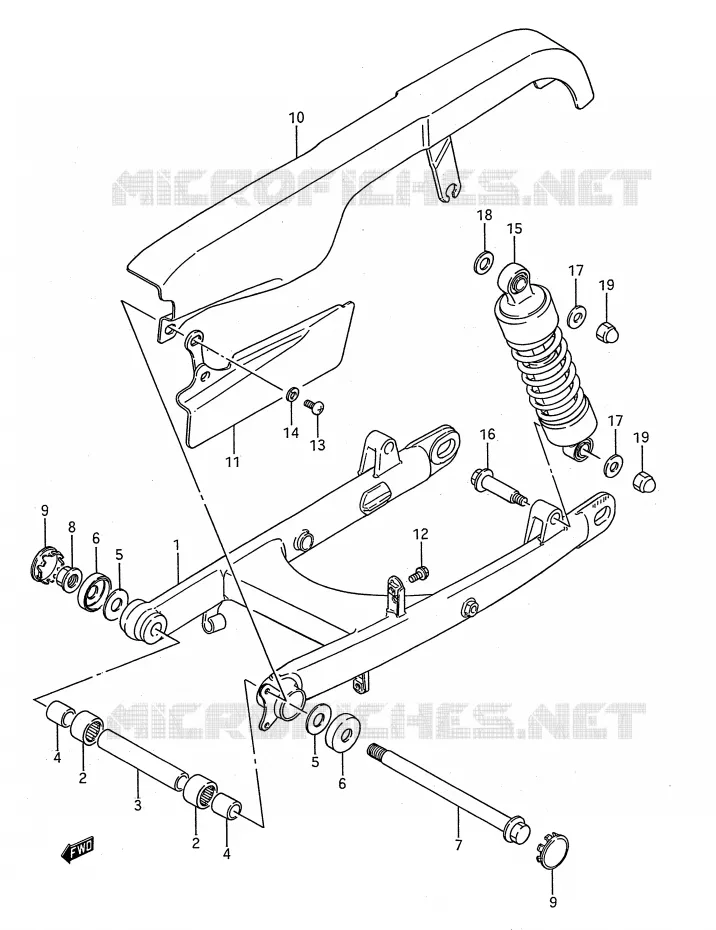

SWINGARM Suzuki MOTO 650 BOULEVARD 1991 LS650M(E28)
1
2
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
12
13
13
14
15
16
17
17
18
19
19
1
SWINGINGARM, RR

61100-24B01-019  

61100-24B03-019
 6110024B01019

Unit Price

2
R BEARING 22X29X30<br />BEARING
R BEARING 22X29X30
BEARING

09263-22017-000   0926322017000

0926322017000

Unit Price

3
SPACER, RR SWGARM PIVOT CTR
SPACER, CENTER

61282-24B01-000   6128224B01000

6128224B01000

Unit Price

4
SPACER, RR SWGARM PIVOT
SPACER, PIVOT

61251-24B00-000   6125124B00000

6125124B00000

Unit Price

5
WASHER, THRUST
THRUST WASHER

08211-14341-000   0821114341000

0821114341000

Unit Price

6
CVR,RR SWGARM DUST SEAL(OD:40)<br />DUST SEAL
CVR, RR SWGARM DUST SEAL(OD:40)
DUST SEAL

61262-45002-000   6126245002000

6126245002000

Unit Price

7
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-24B00-000   6121124B00000

6121124B00000

Unit Price

8
NUT

08319-31148-000  

08319-3114A-000
 0831931148000

Unit Price

9
CAP, RR SWINGING ARM PIVOT, R
CAP, PIVOT

61222-38A01-000   6122238A01000

6122238A01000

Unit Price

10
BELT CASE, UPR
BELT CASE, UPPER

61310-24B02-000   6131024B02000

6131024B02000

Unit Price

11
BELT CASE, LWR
BELT CASE, LOWER

61320-24B02-000   6132024B02000

6132024B02000

Unit Price

12
BOLT

01517-06105-000  

01550-0610B-000
 0151706105000

Unit Price

13
SCREW

02142-06108-000  

02142-06107-000
 0214206108000

Unit Price

13
SCREW

02142-36108-000   0214236108000

0214236108000
Not available
14
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

15
ABSORBER ASSY, RR SHOCK
ABSORBER ASSY, REAR SHOCK

62100-24B00-000   6210024B00000

6210024B00000

Unit Price

16
BOLT, RR SHOCK ABSORBER LWR
BOLT, LOWER

62313-24B00-000   6231324B00000

6231324B00000

Unit Price

17
HDLBAR LOW CLP WASHR

09160-10101-000  

09160-10035-000
 0916010101000

Unit Price

18
PIVOT SHAFT WASHER<br />WASHER, UPPER INNER
PIVOT SHAFT WASHER
WASHER, UPPER INNER

09160-14009-000   0916014009000

0916014009000

Unit Price

19
NUT

08313-11107-000  

08313-10107-000
 0831311107000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 650 BOULEVARD 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 BOULEVARD 1991

Select your Suzuki 1991 model

650 BOULEVARD 1991 LS650M(E28)

Suzuki BOULEVARD

Displacement: 650 cc
Year: 1991
Model code LS650M(E28)
