Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI BOULEVARD 650 2007

FOOTREST

Item numbers

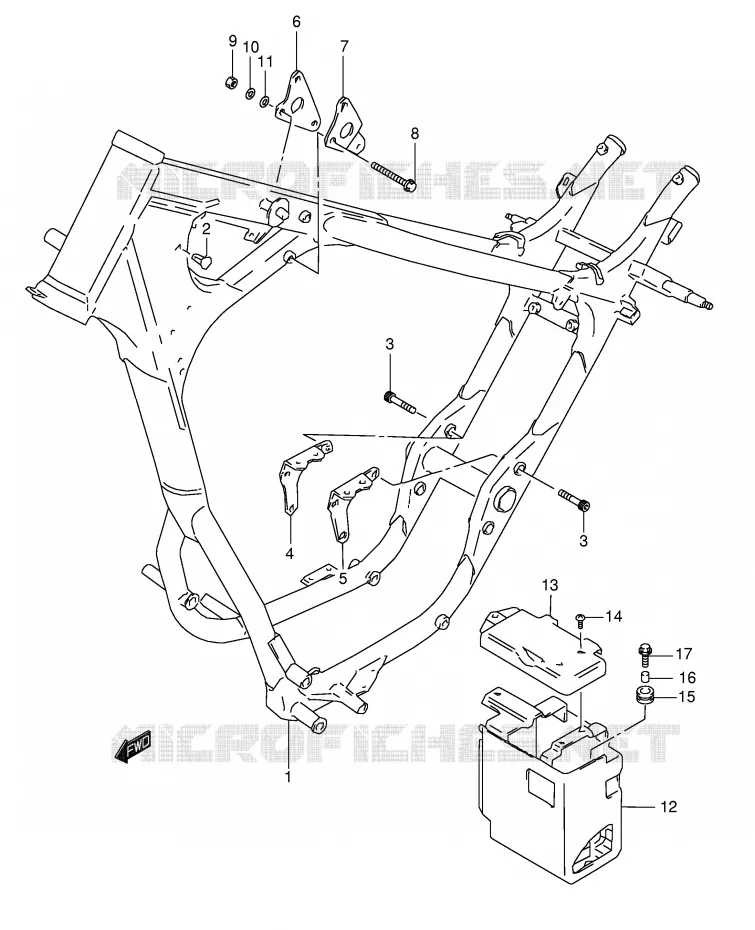

FRAME Suzuki MOTO 650 BOULEVARD 2007 LS650K7(E3/E28)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
DISCONTINUE
FRAME SET (BLACK)

41100-24B01-019   4110024B01019

4110024B01019
Not available
2
CAP, FRAME HEAD

09409-06306-000   0940906306000

0940906306000
Not available
3
BOLT 8X40
BOLT

09106-08074-000   0910608074000

0910608074000

Unit Price

4
PLATE, ENGINE MOUNT NO.4 RH
PLATE, NO.4 RH (BLACK)

41970-24B00-019   4197024B00019

4197024B00019

Unit Price

5
PLATE, ENGINE MOUNT NO.4 LH
PLATE, NO.4 LH (BLACK)

41980-24B00-019   4198024B00019

4198024B00019

Unit Price

6
PLATE, ENGINE MOUNT NO.5, R
PLATE, NO.5 RH (BLACK)

41991-24B00-019   4199124B00019

4199124B00019

Unit Price

7
PLATE, ENGINE MOUNT NO.5, L
PLATE, NO.3 LH (BLACK)

41992-24B00-019   4199224B00019

4199224B00019

Unit Price

8
BOLT

09103-08279-000   0910308279000

0910308279000
Not available
9
NUT
NUT

08319-2108A-000   083192108A000

083192108A000

Unit Price

10
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-0108B-000   083210108B000

083210108B000

Unit Price

11
WASHER
WASHER

08322-0108B-000   083220108B000

083220108B000

Unit Price

12
HOLDER, BATTERY

41540-24B01-000   4154024B01000

4154024B01000

Unit Price

13
COVER, BATTERY

41576-24B01-000   4157624B01000

4157624B01000

Unit Price

14
SCREW 4X10
SCREW, COVER

02142-04107-000   0214204107000

0214204107000

Unit Price

15
CUSHION (8.5X20X8)
CUSHION (8.5X20X8)

09320-08021-000  

09320-08510-000
 0932008021000

Unit Price

16
SPACER, 6.5X9X7.2
SPACER

09180-06260-000   0918006260000

0918006260000

Unit Price

17
BOLT

09116-06010-000  

01500-06207-000
 0911606010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 650 BOULEVARD 2007
