CRANKCASE COVER

CRANKSHAFT FOR SUZUKI BOULEVARD 650 2007

CRANK BALANCER

Item numbers

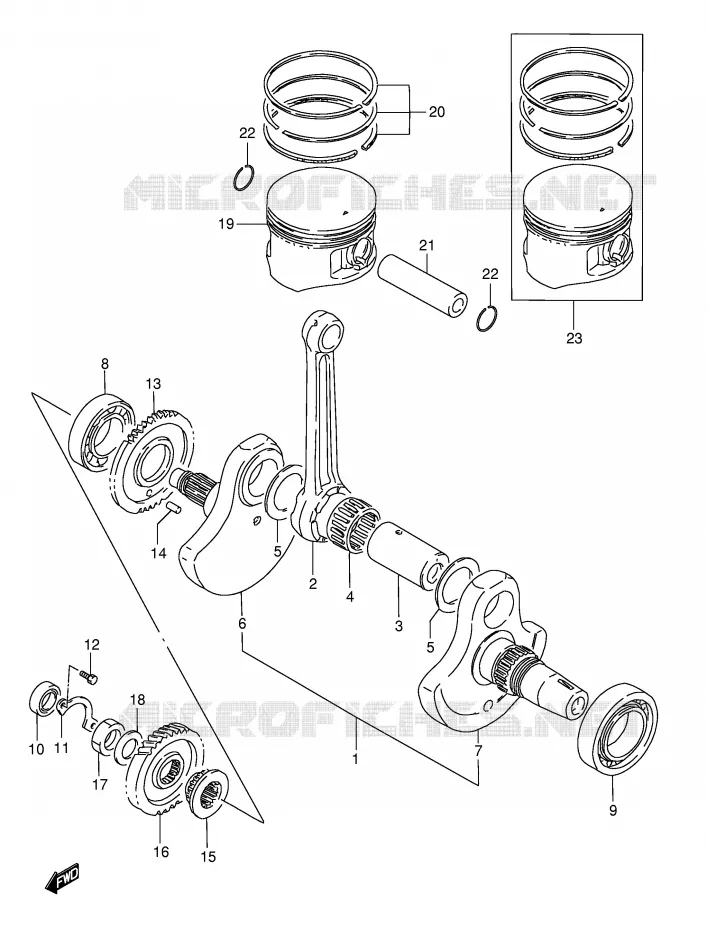

CRANKSHAFT Suzuki MOTO 650 BOULEVARD 2007 LS650K7(E3/E28)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
CRANKSHAFT ASSY

12200-24B05-000   1220024B05000

1220024B05000

Unit Price

2
ROD, CONNECTING

12161-24B01-0C0   1216124B010C0

1216124B010C0

Unit Price

3
PIN, CRANK

12210-24B01-0A0   1221024B010A0

1221024B010A0

Unit Price

4
BEARING (37X47X25)

09263-37004-0B0   09263370040B0

09263370040B0

Unit Price

5
WASHER 37X55X1
WASHER

09160-37006-000   0916037006000

0916037006000

Unit Price

6
CRANKSHAFT, R
CRANKSHAFT, RH

12221-24B02-000   1222124B02000

1222124B02000

Unit Price

7
DISCONTINUE
CRANKSHAFT, LH

12261-24B02-000   1226124B02000

1226124B02000
Not available
8
BEARING 35X72X17
BEARING, RH (35X72X17)

09262-35038-000   0926235038000

0926235038000

Unit Price

9
BEARING(40X80X18)
BEARING, LH (40X80X18)

09264-40002-000   0926440002000

0926440002000

Unit Price

10
CR SHAFT OIL SEAL
OIL SEAL, RH (16X30X6)

09282-16002-000   0928216002000

0928216002000

Unit Price

11
RETAINER, CRANKSHAFT OIL SEAL, R
RETAINER

12548-24B00-000   1254824B00000

1254824B00000

Unit Price

12
BOLT

01500-0508B-000   015000508B000

015000508B000

Unit Price

13
GEAR, CRANK BALANCER DRIVE
GEAR, BALANCER DRIVE

12661-24B00-000   1266124B00000

1266124B00000

Unit Price

14
PIN

04221-08149-000   0422108149000

0422108149000

Unit Price

15
SPROCKET, CAM CHAIN DRIVE

12731-24B00-000   1273124B00000

1273124B00000

Unit Price

16
GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:37)

21111-24B10-000   2111124B10000

2111124B10000

Unit Price

17
NUT CLUTCH SHOE

09140-20008-000  

09140-20013-000
 0914020008000

Unit Price

18
LOCK WASHER

09164-20003-000   0916420003000

0916420003000

Unit Price

19
PISTON

12111-24B01-0F0   1211124B010F0

1211124B010F0

Unit Price

20
RING SET, PISTON

12140-14A32-000   1214014A32000

1214014A32000

Unit Price

21
PIN, PISTON

12151-14A01-000   1215114A01000

1215114A01000

Unit Price

22
CIRCLIP

09381-23003-000   0938123003000

0938123003000

Unit Price

23
PISTON SET (OS:0.5)

12100-24B00-050   1210024B00050

1210024B00050

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 650 BOULEVARD 2007
