Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

AIR FILTER

MUFFLER FOR SUZUKI BOULEVARD 650 2011

OIL PUMP

Item numbers

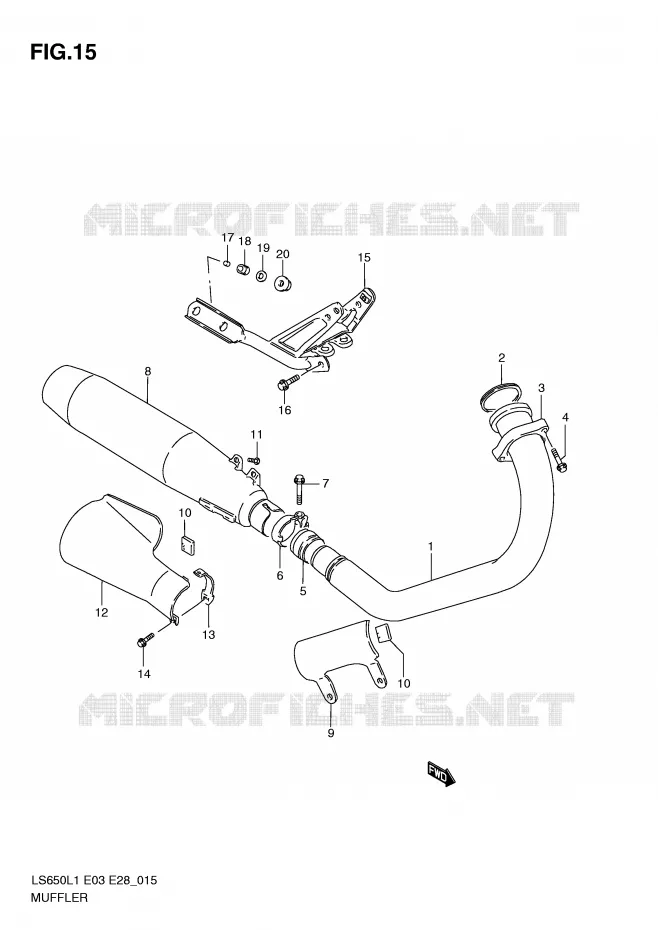

MUFFLER Suzuki MOTO 650 BOULEVARD 2011 LS650L1(E3/E28)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
PIPE, EXHAUST

14150-24B01-000   1415024B01000

1415024B01000

Unit Price

2
GASKET, EXHAUST PIPE
GASKET, EXHAUST PIPE (NA)

14181-45C00-000   1418145C00000

1418145C00000

Unit Price

3
CLAMP, EXHAUST PIPE

14182-38A02-000   1418238A02000

1418238A02000

Unit Price

4
BOLT
BOLT (8X35)

09104-08026-000   0910408026000

0910408026000

Unit Price

5
CONNECTOR, MUFFLER
CONNECTOR, MUFFLER

14771-46E00-000   1477146E00000

1477146E00000

Unit Price

6
CLAMP, MUFFLER, R(L:42.7)
CLAMP, CONNECTOR MUFFLER

14459-14A10-000   1445914A10000

1445914A10000

Unit Price

7
BOLT
BOLT

01550-0840B-000   015500840B000

015500840B000

Unit Price

8
BODY, MUFFLER

14310-24B44-H01  

14310-24B45-H01
 1431024B44H01

Unit Price

9
COVER, EXHAUST PIPE

14780-24B01-000   1478024B01000

1478024B01000

Unit Price

10
GASKET

14789-24B12-000   1478924B12000

1478924B12000

Unit Price

11
SCREW
SCREW

02112-0610B-000   021120610B000

021120610B000

Unit Price

12
COVER, MUFFLER

14790-24B00-000   1479024B00000

1479024B00000

Unit Price

13
CLAMP, MUFFLER COVER

14785-24B00-000   1478524B00000

1478524B00000

Unit Price

14
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

15
STAY, MUFFLER SUPPORT(E33)
STAY, MUFFLER

14410-24B10-019   1441024B10019

1441024B10019

Unit Price

16
BOLT
BOLT (8X20)

09103-08505-000   0910308505000

0910308505000

Unit Price

17
SPACER (8.5X12X11)
SPACER (8.5X12X11)

09180-08189-000   0918008189000

0918008189000

Unit Price

18
CUSHION

09320-12041-000   0932012041000

0932012041000

Unit Price

19
WASHER (8.5X26X1.6)
WASHER (8.5X26X1.6)

09160-08134-000   0916008134000

0916008134000

Unit Price

20
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the MUFFLER of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 650 BOULEVARD 2011

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 BOULEVARD 2011

Select your Suzuki 2011 model

650 BOULEVARD 2011 LS650L1(E3/E28)

Suzuki BOULEVARD

Displacement: 650 cc
Year: 2011
Model code LS650L1(E3 / E28)
