STARTER MOTOR FOR SUZUKI BOULEVARD 650 2017

IGNITION

Item numbers

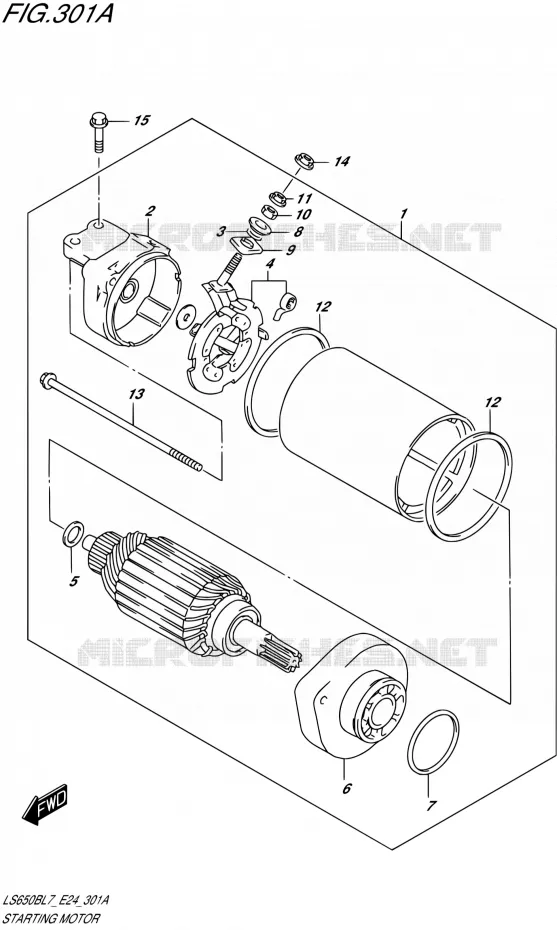

STARTER MOTOR Suzuki MOTO 650 BOULEVARD 2017 LS650B L7 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
MOTOR ASSY, STARTING

31100-07F10-000   3110007F10000

3110007F10000

Unit Price

2
.FRAME ASSY

31170-07F00-000   3117007F00000

3117007F00000

Unit Price

3
.O RING
.O RING

31143-38300-000   3114338300000

3114338300000

Unit Price

4
.HOLDER SET, BRUSH

31132-45C00-000   3113245C00000

3113245C00000

Unit Price

5
SHIM SET,STARTING MOTOR<br />.SHIM SET
SHIM SET, STARTING MOTOR
.SHIM SET

31170-43400-000   3117043400000

3117043400000

Unit Price

6
.HOUSING ASSY

31150-07F10-000   3115007F10000

3115007F10000

Unit Price

7
.O RING
.O RING

31156-48B00-000   3115648B00000

3115648B00000

Unit Price

8
.BUSHING
.BUSHING

31172-38300-000   3117238300000

3117238300000

Unit Price

9
.BUSHING

31173-88C00-000   3117388C00000

3117388C00000

Unit Price

10
.NUT
.NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

11
.NUT
.NUT

08361-3506A-000   083613506A000

083613506A000

Unit Price

12
.O RING
.O RING

31264-44110-000   3126444110000

3126444110000

Unit Price

13
.BOLT

31281-31D00-000   3128131D00000

3128131D00000

Unit Price

14
NUT
NUT

08361-3506A-000   083613506A000

083613506A000

Unit Price

15
BOLT
BOLT (6X20)

09103-06223-000   0910306223000

0910306223000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Suzuki BOULEVARD S40 of BOULEVARD. Let us know if you have any questions.
