FRONT FORK FOR SUZUKI BOULEVARD 650 2017

STEERING COLUMN

Item numbers

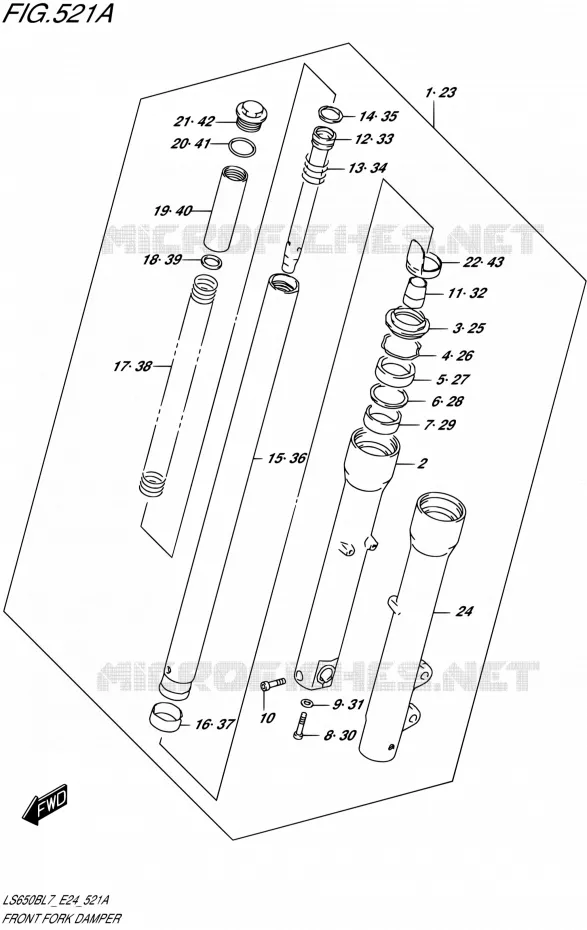

FRONT FORK Suzuki MOTO 650 BOULEVARD 2017 LS650B L7 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-24B70-000   5110324B70000

5110324B70000

Unit Price

2
TUBE, OUTER, R
.TUBE, OUTER RH

51130-24B70-000   5113024B70000

5113024B70000

Unit Price

3
.SEAL, DUST
.SEAL, DUST

51173-20A00-000   5117320A00000

5117320A00000

Unit Price

4
RING,STOPPER<br />.RING, OIL SEAL STOPPER
RING, STOPPER
.RING, OIL SEAL STOPPER

51156-40301-000   5115640301000

5115640301000

Unit Price

5
SEAL,OIL<br />.OIL SEAL
SEAL, OIL
.OIL SEAL

51153-20A00-000   5115320A00000

5115320A00000

Unit Price

6
WASHER(40X50X2.3)<br />.WASHER
WASHER(40X50X2.3)
.WASHER

51158-14100-000   5115814100000

5115814100000

Unit Price

7
.METAL, SLIDE
.METAL, SLIDE

51167-13A00-000   5116713A00000

5116713A00000

Unit Price

8
BOLT,FORK CYLINDER(10X25)<br />.BOLT, FORK CYLINDER
BOLT, FORK CYLINDER(10X25)
.BOLT, FORK CYLINDER

51147-16510-000   5114716510000

5114716510000

Unit Price

9
.GASKET
.GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

10
.BOLT
.BOLT

07130-08407-000   0713008407000

0713008407000

Unit Price

11
.PIECE, OIL LOCK

51195-24B01-000   5119524B01000

5119524B01000

Unit Price

12
.CYLINDER

51146-24B01-000   5114624B01000

5114624B01000

Unit Price

13
.SPRING, REBOUND

51177-49440-000   5117749440000

5117749440000

Unit Price

14
RING, FORK PISTON
.RING, PISTON

51196-49440-000   5119649440000

5119649440000

Unit Price

15
.TUBE, INNER

51120-24B01-000   5112024B01000

5112024B01000

Unit Price

16
.PISTON
.PISTON

51121-14100-000   5112114100000

5112114100000

Unit Price

17
.SPRING

51171-24B00-000   5117124B00000

5117124B00000

Unit Price

18
.WASHER

51172-45C00-000   5117245C00000

5117245C00000

Unit Price

19
.SPACER, SPRING

51176-24B01-000   5117624B01000

5117624B01000

Unit Price

20
.O RING
.O RING

51117-40300-000   5111740300000

5111740300000

Unit Price

21
.CAP

51351-24B00-000   5135124B00000

5135124B00000

Unit Price

22
PROTECTOR, FR FORK
.PROTECTOR, FRONT FORK

51201-01DA0-000   5120101DA0000

5120101DA0000

Unit Price

23
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-24B70-000   5110424B70000

5110424B70000

Unit Price

24
TUBE, OUTER, L
.TUBE, OUTER LH

51140-24B70-000   5114024B70000

5114024B70000

Unit Price

25
.SEAL, DUST
.SEAL, DUST

51173-20A00-000   5117320A00000

5117320A00000

Unit Price

26
RING,STOPPER<br />.RING, OIL SEAL STOPPER
RING, STOPPER
.RING, OIL SEAL STOPPER

51156-40301-000   5115640301000

5115640301000

Unit Price

27
SEAL,OIL<br />.OIL SEAL
SEAL, OIL
.OIL SEAL

51153-20A00-000   5115320A00000

5115320A00000

Unit Price

28
WASHER(40X50X2.3)<br />.WASHER
WASHER(40X50X2.3)
.WASHER

51158-14100-000   5115814100000

5115814100000

Unit Price

29
.METAL, SLIDE
.METAL, SLIDE

51167-13A00-000   5116713A00000

5116713A00000

Unit Price

30
BOLT,FORK CYLINDER(10X25)<br />.BOLT, FORK CYLINDER
BOLT, FORK CYLINDER(10X25)
.BOLT, FORK CYLINDER

51147-16510-000   5114716510000

5114716510000

Unit Price

31
.GASKET
.GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

32
.PIECE, OIL LOCK

51195-24B01-000   5119524B01000

5119524B01000

Unit Price

33
.CYLINDER

51146-24B01-000   5114624B01000

5114624B01000

Unit Price

34
.SPRING, REBOUND

51177-49440-000   5117749440000

5117749440000

Unit Price

35
RING, FORK PISTON
.RING, PISTON

51196-49440-000   5119649440000

5119649440000

Unit Price

36
.TUBE, INNER

51120-24B01-000   5112024B01000

5112024B01000

Unit Price

37
.PISTON
.PISTON

51121-14100-000   5112114100000

5112114100000

Unit Price

38
.SPRING

51171-24B00-000   5117124B00000

5117124B00000

Unit Price

39
.WASHER

51172-45C00-000   5117245C00000

5117245C00000

Unit Price

40
.SPACER, SPRING

51176-24B01-000   5117624B01000

5117624B01000

Unit Price

41
.O RING
.O RING

51117-40300-000   5111740300000

5111740300000

Unit Price

42
.CAP

51351-24B00-000   5135124B00000

5135124B00000

Unit Price

43
PROTECTOR, FR FORK
.PROTECTOR, FRONT FORK

51201-01DA0-000   5120101DA0000

5120101DA0000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BOULEVARD S40 of BOULEVARD. Let us know if you have any questions.
