We work in partnership with many official Suzuki dealers around the world.

You can select the country of your choice from the list below, whatever your choice, we can deliver worldwide!

Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI DR 650 1990

CRANKCASE COVER

Item numbers

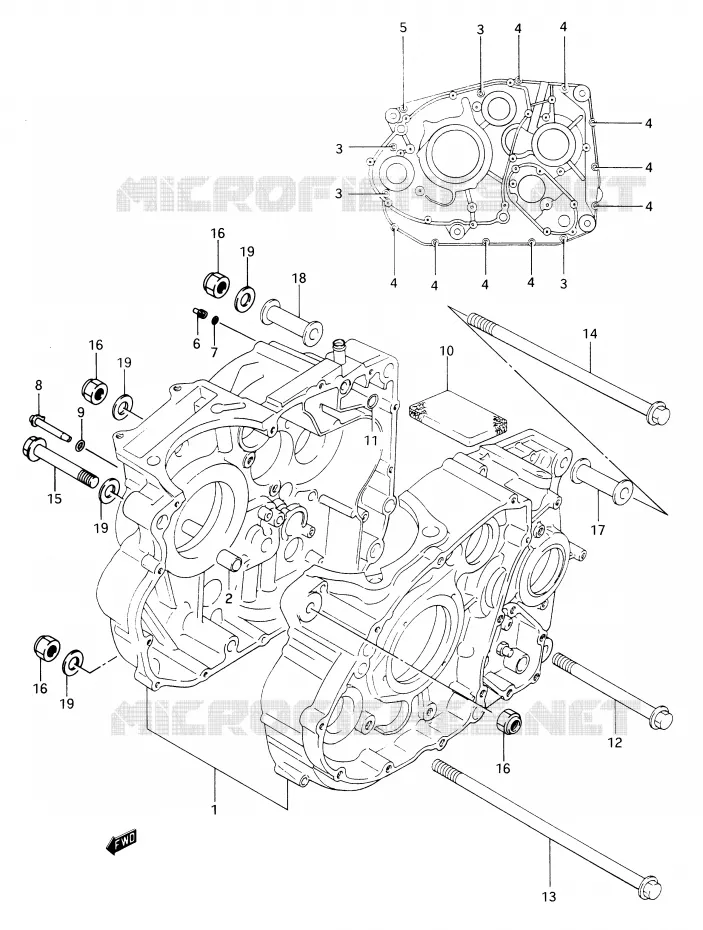

CRANKCASE Suzuki MOTO 650 DR 1990 DR650RSUL(E2)

1

CRANKCASE SET

11301-12820-000 1130112820000

Not available

2

PIN

09206-13001-000

04211-13189-000

$3,97

Unit Price

3

.BOLT (6X60)

01547-06605-000 0154706605000

Not available

4

BOLT

01547-06404-000

01547-0640B-000

$4,97

Unit Price

5

BOLT, 6X30

01547-06304-000

01547-06307-000

$3,97

Unit Price

6

JET, OIL

09493-24012-000 0949324012000

Not available

7

O RING

09280-04004-000 0928004004000

$2,97

Unit Price

8

DISCONTINUE
PIPE, PISTON COOLING

11390-12D01-000 1139012D01000

Not available

9

O RING D:1.9 ID:7.8

09280-08016-000

09280-08012-000

$6,97

Unit Price

10

DISCONTINUE

11328-14A02-000

Not available

11

O RING, ROCKER SHAFT

09280-09004-000

09280-09005-000

$5,97

Unit Price

12

BOLT (10X130)

09103-10237-000 0910310237000

$13,97

Unit Price

13

BOLT(10X230)

09103-10238-000

09103-10238-XC0

$36,97

Unit Price

14

BOLT
BOLT (10X235)

09103-10239-000 0910310239000

$28,97

Unit Price

15

BOLT (10X80)

09103-10240-000 0910310240000

$12,97

Unit Price

16

NUT

09159-10044-000 0915910044000

Not available

17

DISCONTINUE
SPACER (L:55)

11610-14A00-000 1161014A00000

Not available

18

SPACER, ENGINE MOUNT(L:65)
SPACER (L:65)

11610-45410-000 1161045410000

$17,97

Unit Price

19

WASHER

08322-11104-000

08322-0110B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki DR 650 RS of DR. Let us know if you have any questions.
