CYLINDER HEAD FOR SUZUKI DR 650 1990

CYLINDER

Item numbers

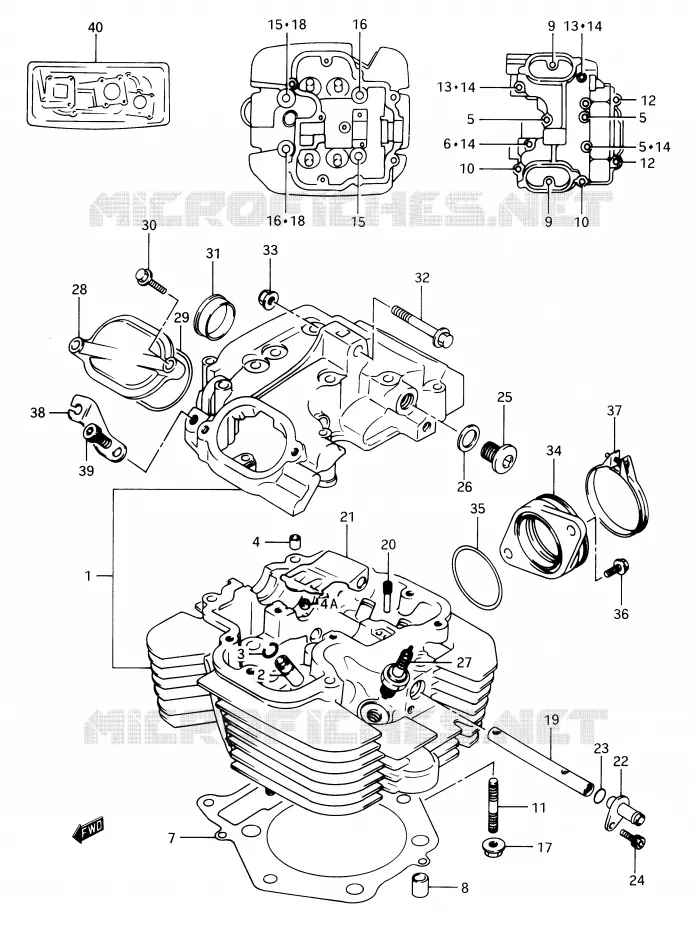

CYLINDER HEAD Suzuki MOTO 650 DR 1990 DR650RSUL(E2)
1
1
1
1
2
3
4
4A
5
5
5
6
7
8
9
9
10
10
11
12
12
13
13
14
14
14
14
14
14
14
14
15
15
16
16
17
18
18
19
20
21
22
23
24
25
25
26
27
27
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
40
1
HEAD ASSY, CYLINDER

11100-12D00-000   1110012D00000

1110012D00000
Not available
1
HEAD ASSY, CYLINDER

11100-12D10-000   1110012D10000

1110012D10000
Not available
1
HEAD ASSY, CYLINDER

11100-12D20-000   1110012D20000

1110012D20000
Not available
1
HEAD ASSY, CYLINDER

11100-12D30-000   1110012D30000

1110012D30000
Not available
2
GUIDE, VALVE

11115-37470-000   1111537470000

1111537470000

Unit Price

3
RING,SNAP<br />RING, VALVE GUIDE
RING, SNAP
RING, VALVE GUIDE

09381-10003-000   0938110003000

0938110003000

Unit Price

4A
JET, OIL GALLERY
JET, OIL

11180-43410-000   1118043410000

1118043410000

Unit Price

4
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
BOLT

01517-06605-000  

01550-06603-000
 0151706605000

Unit Price

6
BOLT (6X55)

09103-06040-000   0910306040000

0910306040000
Not available
7
GASKET, CYLINDER HEAD

11141-12D00-000   1114112D00000

1114112D00000

Unit Price

8
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

9
BOLT

01517-06257-000  

01550-0625A-000
 0151706257000

Unit Price

10
BOLT

01517-06404-000  

01550-0640A-000
 0151706404000

Unit Price

11
BOLT STUD L:33

09108-08161-000  

09108-08220-000
 0910808161000

Unit Price

12
BOLT (6X130)

09103-06085-000   0910306085000

0910306085000

Unit Price

13
BOLT

01517-06605-000  

01550-06603-000
 0151706605000

Unit Price

14
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
15
BOLT
BOLT (10X190)

09103-10179-000   0910310179000

0910310179000

Unit Price

16
BOLT (10X215)

09103-10181-000   0910310181000

0910310181000
Not available
17
NUT

08316-16085-000  

08316-1008B-000
 0831616085000

Unit Price

18
GASKET

09168-10017-000   0916810017000

0916810017000

Unit Price

19
DISCONTINUE
PIPE, HEAD OIL

11131-12D00-000   1113112D00000

1113112D00000
Not available
20
SCREW

09134-06012-000   0913406012000

0913406012000
Not available
21
PLATE, CYLINDER HEAD CHAMBER
PLATE, HEAD CHAMBER

11135-12D00-000   1113512D00000

1113512D00000

Unit Price

22
DISCONTINUE

11190-12D00-000  

1119012D00000
Not available
23
O RING(D:1.3, ID:9.8)
O RING

09280-10009-000   0928010009000

0928010009000

Unit Price

24
BOLT

07110-06105-000  

07130-0610B-000
 0711006105000

Unit Price

25
PLUG

09248-14004-000  

09248-14010-000
 0924814004000

Unit Price

26
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

27
DPR9EA-9, NGK
SPARK PLUG (NGK, DPR9EA-9)

09482-00330-000   0948200330000

0948200330000

Unit Price

27
SPARK PLUG (NGK, DP9EA-9)

09482-00328-000   0948200328000

0948200328000
Not available
27
SPARK PLUG (ND, X27EP-U9)

09482-00329-111   0948200329111

0948200329111
Not available
27
SPARK PLUG (ND, X27EPR-U9)

09482-00331-111   0948200331111

0948200331111
Not available
28
DISCONTINUED

11175-12D00-000   1117512D00000

1117512D00000
Not available
28
CAP, INSPECTION

11175-12D10-000   1117512D10000

1117512D10000
Not available
29
O RING, CAP
O RING

09280-60004-000   0928060004000

0928060004000

Unit Price

30
BOLT

01517-06204-000  

01550-0620B-000
 0151706204000

Unit Price

31
PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000   0924130004000

0924130004000

Unit Price

32
BOLT

09103-08290-000  

09103-08332-000
 0910308290000

Unit Price

33
NUT

08319-31085-000  

08319-3108A-000
 0831931085000

Unit Price

34
DISCONTINUE
PIPE, INTAKE

13110-12D00-000   1311012D00000

1311012D00000
Not available
35
O RING

09280-46002-000   0928046002000

0928046002000

Unit Price

36
BOLT

07120-06205-000  

07120-0620B-000
 0712006205000

Unit Price

37
CLAMP

09402-58207-000  

09402-58208-000
 0940258207000

Unit Price

38
DISCONTINUE
HOLDER, DECOMP CABLE

12944-14A00-000   1294414A00000

1294414A00000
Not available
39
BOLT

07110-08165-000  

07130-0816A-000
 0711008165000

Unit Price

40
DISCONTINUE

11400-12890-000  

1140012890000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 650 RS of DR. Let us know if you have any questions.
