CARBURETOR REFER TO FIG.11A(C-4) FOR E18

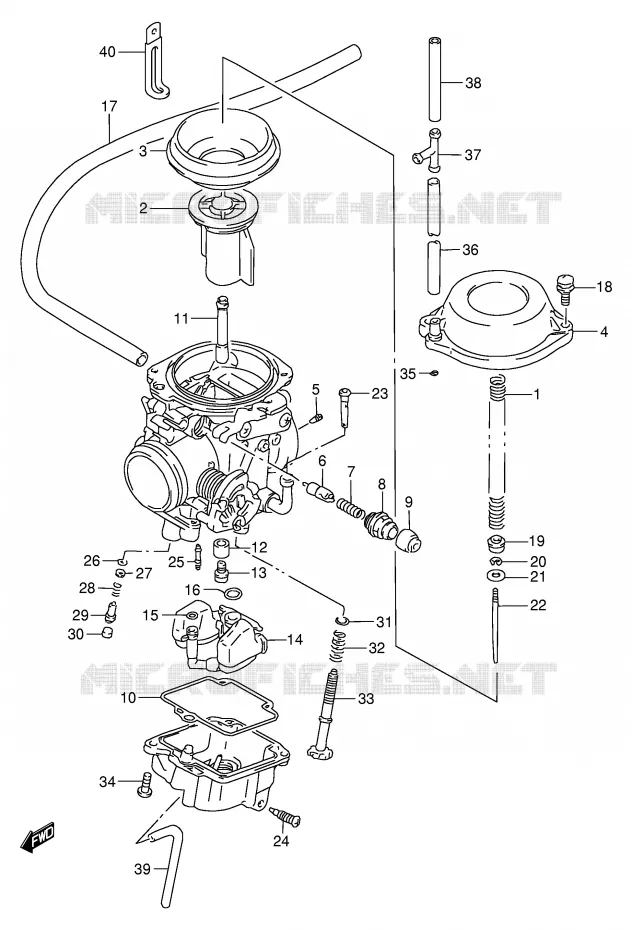

CARBURETOR (E18) FOR SUZUKI DR 650 1995

AIR FILTER

Item numbers

SPRING

13417-17D00-000 1341717D00000

$10,97

Unit Price

DISCONTINUE
VALVE, PISTON

13501-12D00-000 1350112D00000

Not available

DIAPHRAGM

13507-07D00-000

13507-07D02-000

$39,97

Unit Price

COVER, DIAPHRAGM

13502-12D10-000 1350212D10000

Not available

.JET, PILOT AIR (1.4)

09493-28007-000 0949328007000

Not available

PLUNGER
PLUNGER ASSY

13411-12D00-000 1341112D00000

$26,97

Unit Price

SPRING

13417-22010-000 1341722010000

$5,97

Unit Price

HOLDER, GUIDE

13418-43410-000 1341843410000

$10,97

Unit Price

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

$12,97

Unit Price

DISCONTINUE
JET, NEEDLE (Y-2)

09494-00754-000 0949400754000

Not available

RING

13331-07D00-000 1333107D00000

$8,97

Unit Price

JET, MAIN (137.5)

09491-27010-000 0949127010000

$21,97

Unit Price

FLOAT/NEEDLE VALVE ASSY

13250-12E00-000

13250-12EH0-000

$97,97

Unit Price

O RING

13278-47090-000

13278-47091-000

$3,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

HOSE
HOSE (6.5X10.5X600)

09354-65113-600

Not available

SCREW

02112-75163-000

02112-7516A-000

$3,97

Unit Price

RING

13331-12D00-000 1333112D00000

$8,97

Unit Price

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

RING

13387-07D00-000 1338707D00000

$8,97

Unit Price

NEELE, JET (6F6-3)

13383-12E00-000 1338312E00000

Not available

FILTER

13236-12C00-000 1323612C00000

$15,97

Unit Price

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$8,97

Unit Price

JET, PILOT (52.5)

09492-52010-000 0949252010000

$21,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

SCREW, PILOT
SCREW, PILOT, 7/8

13279-47070-000 1327947070000

$19,97

Unit Price

PLUG

13281-05A00-000 1328105A00000

$7,97

Unit Price

WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

SPRING

13271-24D00-000 1327124D00000

$9,97

Unit Price

ADJUSTER

13267-13D01-000 1326713D01000

$23,97

Unit Price

SCREW(5X14)

13601-05148-000

13601-05148-XC0

$4,97

Unit Price

O RING

13278-02340-000 1327802340000

$3,97

Unit Price

HOSE, 4.5X8.5X600

09354-45853-600

09355-45001-600

$18,97

Unit Price

HOSE, 3-WAY
NIPPLE

09367-06002-000 0936706002000

$5,97

Unit Price

HOSE, 4.5X8.5X600

09354-45853-600

09355-45001-600

$18,97

Unit Price

HOSE (7.4X3.2X135)

09354-31684-600

09355-30705-600

$17,97

Unit Price

CLAMP(L:65)

09404-06402-000

09404-06039-000

$3,97

Unit Price

99x

CARBURETOR ASSY

13200-12EB0-000 1320012EB0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (E18) of your Suzuki DR 650 RE of DR. Let us know if you have any questions.
