CRANKCASE COVER

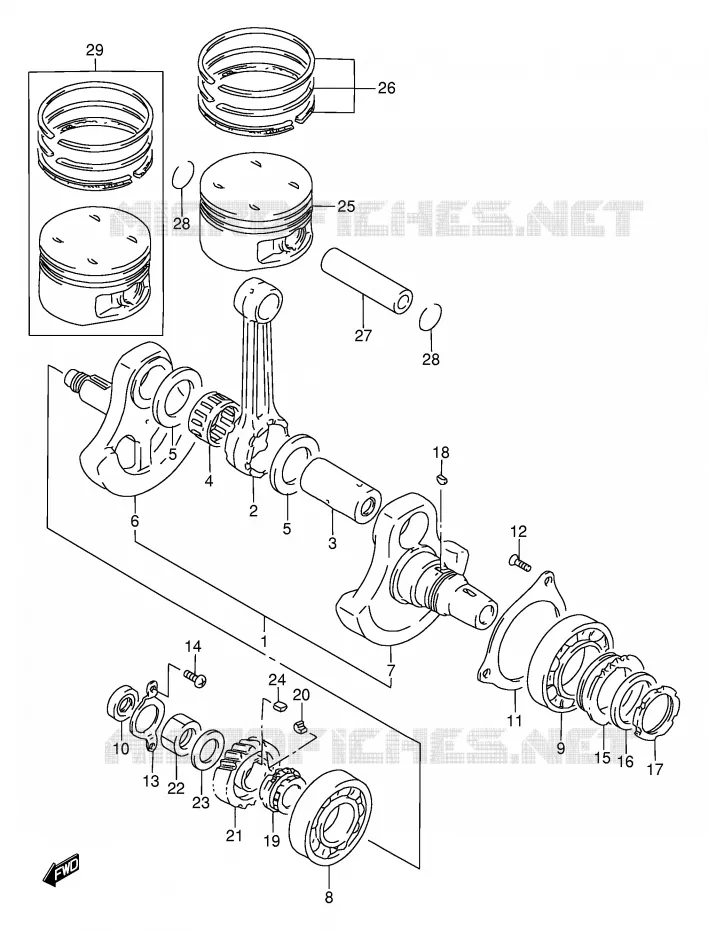

CRANKSHAFT FOR SUZUKI DR 650 1995

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-12D10-000 1220012D10000

Not available

DISCONTINUE
ROD, CONNECTING

12161-12D00-000 1216112D00000

Not available

PIN, CRANK

12210-12D00-000

12210-12D10-000

$116,97

Unit Price

DISCONTINUE

09263-35031-000

Not available

THRUST WASHER CONROD
WASHER

09160-35005-000 0916035005000

$14,97

Unit Price

DISCONTINUE
CRANKSHAFT, RH

12221-12D11-000 1222112D11000

Not available

DISCONTINUE
CRANKSHAFT, LH

12261-12D10-000 1226112D10000

Not available

BEARING CRANKSHAFT R
BEARING, RH (35X80X21)

09262-35009-000 0926235009000

$145,97

Unit Price

BEARING, CRANKSHAFT, L

09262-45003-000

09262-45011-000

$108,97

Unit Price

CR SHAFT OIL SEAL
OIL SEAL, RH

09282-16002-000 0928216002000

$16,97

Unit Price

DISCONTINUE
PLATE, LH

12541-37400-000 1254137400000

Not available

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

RETAINER, CRANKSHAFT BEARING, R
PLATE, RH

12548-37400-000 1254837400000

$9,97

Unit Price

SCREW

02112-05083-000

02112-0508A-000

$3,97

Unit Price

DISCONTINUE
SPROCKET, BALANCER DRIVE NT:25

12662-37402-000 1266237402000

Not available

WASHER

09164-40003-000 0916440003000

Not available

DISCONTINUE
NUT

12664-44B00-000 1266444B00000

Not available

KEY

08341-31039-000 0834131039000

$3,97

Unit Price

DISCONTINUE
SPROCKET, DRIVE (NT:21)

12731-37400-000 1273137400000

Not available

KEY, SPROCKET
KEY

12749-32400-000 1274932400000

$20,97

Unit Price

GEAR, PRIMARY DRIVE (NT:30)

21111-12D00-000 2111112D00000

Not available

NUT CLUTCH SHOE

09140-20008-000

09140-20013-000

$7,97

Unit Price

LOCK WASHER

09164-20003-000 0916420003000

$5,97

Unit Price

KEY, GEAR

09421-07002-000 0942107002000

Not available

DISCONTINUE

12111-12D08-0F0

Not available

DISCONTINUE
RING SET, PISTON

12140-12D11-000 1214012D11000

Not available

PIN, PISTON

12151-14A01-000 1215114A01000

$22,97

Unit Price

CIRCLIP

09381-23003-000 0938123003000

$2,97

Unit Price

PISTON SET (OS:0.5)

12100-12D00-050 1210012D00050

Not available

PISTON SET (OS:1.0)

12100-12D00-100 1210012D00100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki DR 650 RE of DR. Let us know if you have any questions.
