CRANKCASE COVER

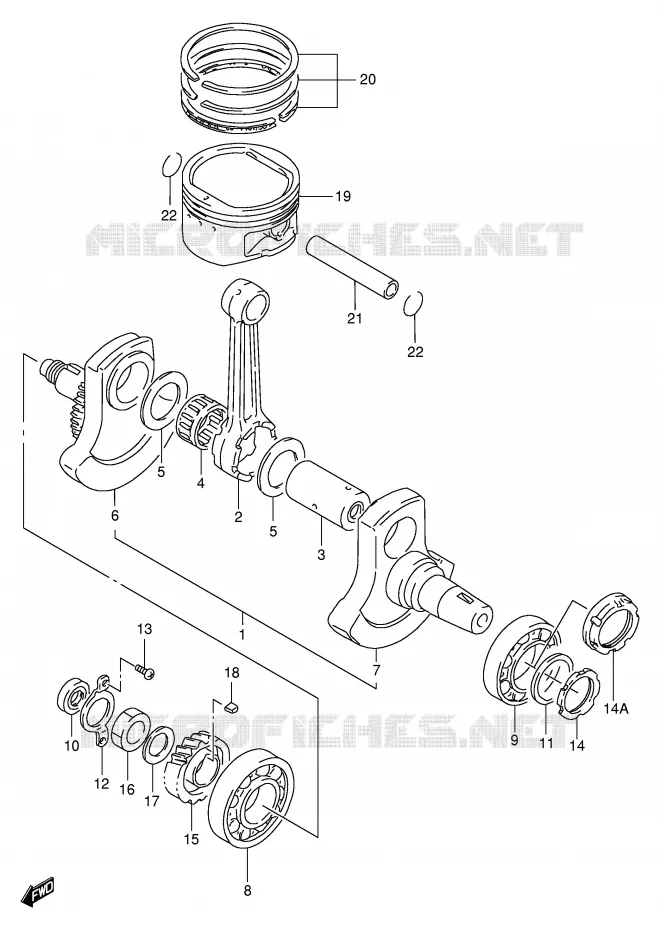

CRANKSHAFT FOR SUZUKI DR 650 1996

STARTER MOTOR CLUTCH

Item numbers

12000-32830
CRANKSHAFT SET

12000-32820-000 1200032820000

Not available

CONNECTING ROD
ROD, CONNECTING

12161-32E00-000 1216132E00000

$126,97

Unit Price

PIN, CRANK

12211-32E00-000 1221132E00000

$65,97

Unit Price

BEARING, CRANK PIN
BEARING (37X47X25)

09263-37004-0C0 09263370040C0

$62,97

Unit Price

WASHER 37X55X1
WASHER

09160-37006-000 0916037006000

$14,97

Unit Price

CRANKSHAFT SET, R
CRANKSHAFT SET, RH

12221-32810-000 1222132810000

$374,97

Unit Price

12261-32E10
CRANKSHAFT, LH

12261-32E00-000 1226132E00000

Not available

BEARING, 40X80X18
BEARING, RH (40X80X18)

09262-40008-000 0926240008000

$100,97

Unit Price

BEARING, CRANKSHAFT, L
BEARING, LH

09262-45011-000 0926245011000

$108,97

Unit Price

CR SHAFT OIL SEAL
OIL SEAL, RH (16X30X6)

09282-16002-000 0928216002000

$16,97

Unit Price

SPACER, LH

09180-40003-000 0918040003000

Not available

RETAINER, CRANKSHAFT BEARING, R
PLATE, RH

12548-37400-000 1254837400000

$9,97

Unit Price

SCREW

02112-05083-000

02112-0508A-000

$3,97

Unit Price

14A

NUT, CRANKSHAFT BRG, L
NUT

12664-04F00-000 1266404F00000

$46,97

Unit Price

DISCONTINUE
NUT

12664-44B00-000 1266444B00000

Not available

GEAR, PRIMARY DRIVE (NT:28)

21111-32E00-000 2111132E00000

$74,97

Unit Price

NUT CLUTCH SHOE

09140-20008-000

09140-20013-000

$7,97

Unit Price

LOCK WASHER

09164-20003-000 0916420003000

$5,97

Unit Price

KEY
KEY, GEAR

09420-05007-000 0942005007000

$5,97

Unit Price

5MM WOODRUFF KEY
KEY, GEAR

08341-31059-000 0834131059000

$4,97

Unit Price

PISTON (100.00MM)
PISTON

12111-32E00-0F0 1211132E000F0

$112,97

Unit Price

RING SET, PISTON

12140-32E10-000 1214032E10000

$77,97

Unit Price

PIN, PISTON

12151-14A01-000 1215114A01000

$22,97

Unit Price

CIRCLIP

09381-23003-000 0938123003000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
