REAR CALIPER

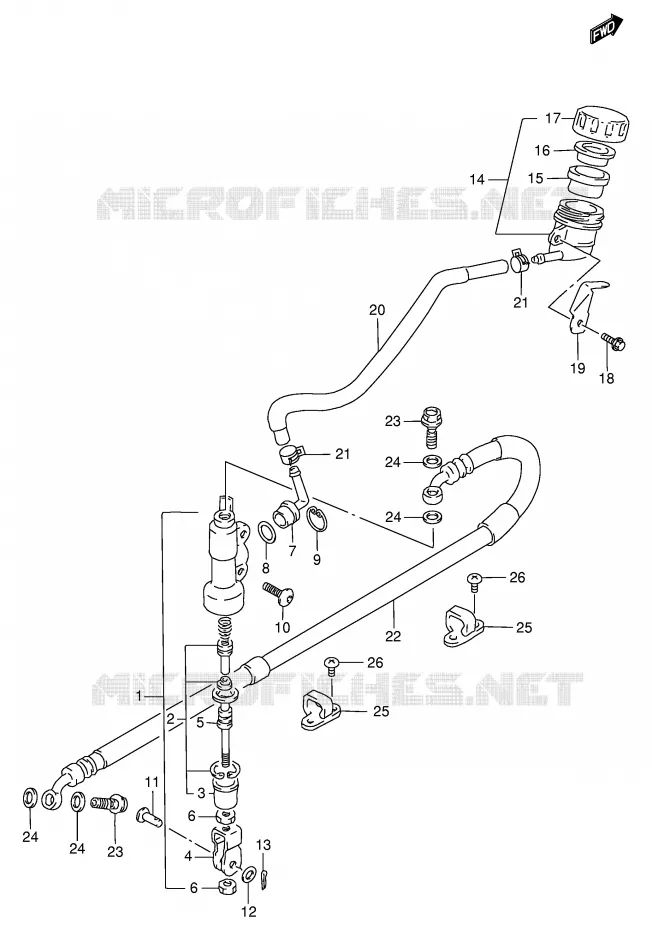

REAR BRAKE MASTER CYLINDER FOR SUZUKI DR 650 1996

OPTIONS

Item numbers

CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-32E00-000 6960032E00000

$273,97

Unit Price

PISTON/CUP SET

69600-04820-000

69600-04821-000

$87,97

Unit Price

BOOT

69691-00A00-000 6969100A00000

$8,97

Unit Price

YOKE

69692-13E00-000 6969213E00000

$21,97

Unit Price

ROD, PUSH

69670-27A30-000 6967027A30000

$36,97

Unit Price

NUT

69693-05A00-000 6969305A00000

$3,97

Unit Price

CONNECTOR

69672-00B20-000 6967200B20000

$12,97

Unit Price

O RING CONECTOR
O RING

69686-34200-000 6968634200000

$6,97

Unit Price

CIRCLIP

69674-00B20-000 6967400B20000

$6,97

Unit Price

SCREW

09139-06067-000

09139-06237-000

$5,97

Unit Price

09200-08048-000 0920008048000

$5,97

Unit Price

WASHER

09160-08119-000

09160-08090-000

$3,97

Unit Price

WASHER

09160-08074-000 0916008074000

Not available

04111-25158-000

04111-2515A-000

$1,97

Unit Price

TANK ASSY, REAR BRAKE
TANK ASSY, REAR RESERVOIR

69740-03D00-000 6974003D00000

$90,97

Unit Price

DIAPHRAGM

69667-00B20-000 6966700B20000

$29,97

Unit Price

PLATE

69668-00B20-000 6966800B20000

$10,97

Unit Price

CAP

69669-03D00-000 6966903D00000

$30,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

GUARD, RSVR TANK CAP
GUARD, TANK CAP

69743-14D10-000 6974314D10000

$9,97

Unit Price

HOSE COMP, RESERVOIR
HOSE, RESERVOIR TANK

69730-32E00-000 6973032E00000

$55,97

Unit Price

CLIP
CLAMP, HOSE

09401-12404-000 0940112404000

$3,97

Unit Price

HOSE, REAR BRAKE

69480-32E00-000

69480-32E01-000

$138,97

Unit Price

BOLT, BRAKE FLUID

09360-10042-000

09360-10062-000

$11,97

Unit Price

WASHER

09161-10009-000 0916110009000

$3,97

Unit Price

GUIDE, RR BRAKE HOSE
GUIDE, BRAKE HOSE (HOLE 2-5.5)

61196-27C20-000 6119627C20000

$20,97

Unit Price

GUIDE, RR BRAKE

61196-27C30-000

61196-27C50-000

$12,97

Unit Price

SCREW

02142-05103-000

02142-0510A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
