HEAD LAMP HOUSING (MODELE K5 E24)

REAR FEDNER (MODELE K1 / K2 / K3) FOR SUZUKI DR 650 2001

REAR FEDNER (MODELE K4 / K5 E24)

Item numbers

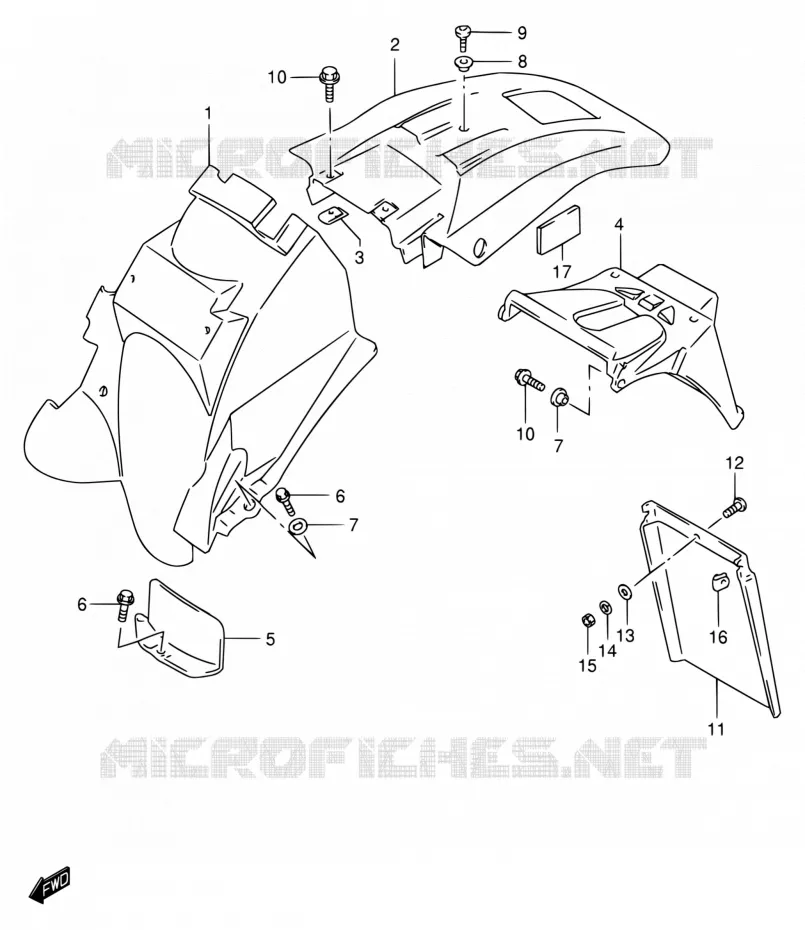

REAR FEDNER (MODELE K1/K2/K3) Suzuki MOTO 650 DR 2001 DR650SEK1(E22)
1
2
2
3
4
4
4
5
6
6
7
7
8
9
10
10
11
11
12
13
14
15
16
17
1
BODY, RR FENDER FR
BODY, REAR FENDER FRONT

63112-32E00-000   6311232E00000

6311232E00000

Unit Price

2
BODY, REAR FENDER REAR (BLACK)

63113-32E00-019   6311332E00019

6311332E00019
Not available
2
BODY, REAR FENDER REAR (WHITE)

63113-32E00-30H   6311332E0030H

6311332E0030H
Not available
3
PLATE, FRAME COVER
NUT, FENDER REAR

47153-19C01-000   4715319C01000

4715319C01000

Unit Price

4
EXTENSION, RR FENDER
EXTENSION, REAR FENDER

63311-32E00-000   6331132E00000

6331132E00000

Unit Price

4
EXTENSION, REAR FENDER

63311-32E10-000   6331132E10000

6331132E10000
Not available
4
EXTENSION, REAR FENDER

63311-32E20-000   6331132E20000

6331132E20000
Not available
5
MUDGUARD, RR FENDER
MUD GUARD, REAR FENDER

63411-32E00-000   6341132E00000

6341132E00000

Unit Price

6
BOLT<br />BOLT, REAR FENDER
BOLT
BOLT, REAR FENDER

09111-06066-000   0911106066000

0911106066000

Unit Price

7
WASHER

09169-06073-000   0916906073000

0916906073000

Unit Price

8
WASHER

09169-06054-000  

09169-06053-000
 0916906054000

Unit Price

9
SCREW

09139-06067-000  

09139-06237-000
 0913906067000

Unit Price

10
01550-0616A
BOLT, REAR FENDER

01550-06163-000  

0155006163000
Not available
11
MUD GUARD, REAR FENDER

63331-03D00-000   6333103D00000

6333103D00000
Not available
11
MUD GUARD, REAR FENDER

63331-03D30-000   6333103D30000

6333103D30000
Not available
12
SCREW

02142-05163-000  

02142-0516B-000
 0214205163000

Unit Price

13
WASHER(5.5X16X1.2)<br />WASHER
WASHER(5.5X16X1.2)
WASHER

09160-05037-000   0916005037000

0916005037000

Unit Price

14
WASHER, LOCK

08321-01053-000  

08321-0105A-000
 0832101053000

Unit Price

15
08310-0005A

08310-00053-000  

0831000053000
Not available
16
NUT INST CENTER

09148-05021-000  

09148-05013-000
 0914805021000

Unit Price

17
CUSHION
CUSHION, FENDER SIDE

63191-25C00-000   6319125C00000

6319125C00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FEDNER (MODELE K1/K2/K3) of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 650 DR 2001
