SWINGARM

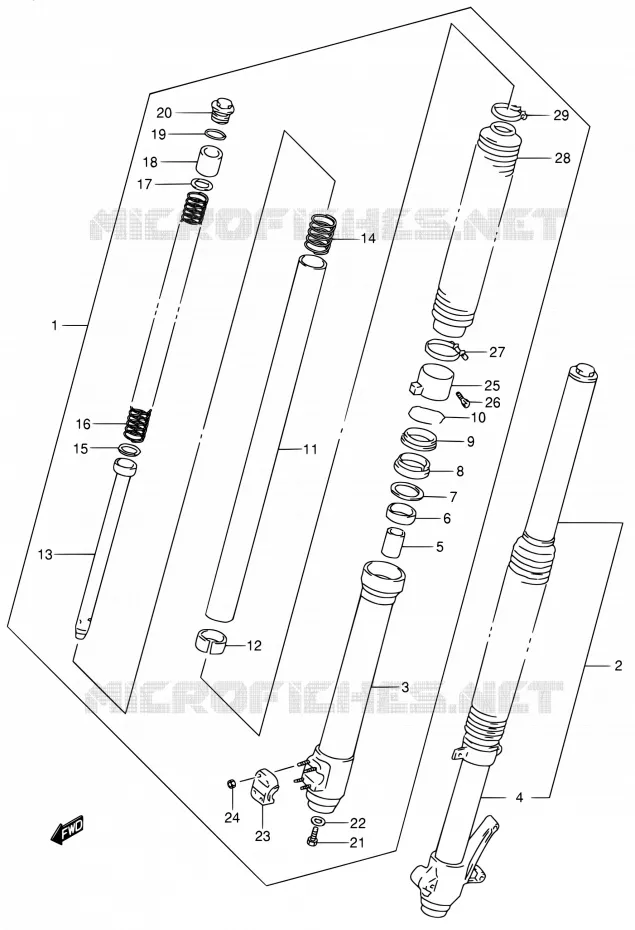

FRONT FORK FOR SUZUKI DR 650 2001

STEERING COLUMN

Item numbers

51103-32E01
DAMPER ASSY, FRONT FORK RH

51103-32E00-000 5110332E00000

Not available

51104-32E01
DAMPER ASSY, FRONT FORK LH

51104-32E00-000 5110432E00000

Not available

TUBE, OUTER, R
.TUBE, OUTER RH

51130-32E00-000 5113032E00000

$579,97

Unit Price

TUBE, OUTER, L
.TUBE, OUTER LH

51140-32E00-000 5114032E00000

$579,97

Unit Price

.PIECE, OIL LOCK

51195-06C00-000 5119506C00000

$18,97

Unit Price

.METAL, SLIDE

51167-40C00-000 5116740C00000

$18,97

Unit Price

.WASHER

51158-14200-000 5115814200000

$7,97

Unit Price

.SEAL, OIL

51153-14330-000 5115314330000

$16,97

Unit Price

.SEAL, DUST

51173-14330-000 5117314330000

$19,97

Unit Price

RING, STOPPER
.RING, SNAP

51156-14200-000 5115614200000

$7,97

Unit Price

.TUBE, INNER

51110-32E00-000 5111032E00000

$534,97

Unit Price

.PISTON

51121-40C00-000 5112140C00000

$19,97

Unit Price

.CYLINDER

51190-32E00-000 5119032E00000

$133,97

Unit Price

SPRING, REBOUND
.SPRING

51177-14330-000 5117714330000

$16,97

Unit Price

RING, PISTON
.RING

51196-31D00-000 5119631D00000

$11,97

Unit Price

.SPRING

51171-32E00-000 5117132E00000

$80,97

Unit Price

.WASHER

51172-32E00-000 5117232E00000

$7,97

Unit Price

.SPACER

51176-32E00-000 5117632E00000

$29,97

Unit Price

O RING

51117-14200-000

51117-14201-000

$4,97

Unit Price

CAP, FORK
.CAP

51351-31D00-000 5135131D00000

$44,97

Unit Price

BOLT, FORK CYLINDER(10X25)
.BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

HOLDER, AXLE, R
.HOLDER, AXLE RH

51132-32E00-000 5113232E00000

$41,97

Unit Price

.NUT

08316-10067-000 0831610067000

$3,97

Unit Price

GUIDE, BOOT

51203-32E00-000

51203-32E01-000

$17,97

Unit Price

BOLT

07130-05207-000 0713005207000

$3,97

Unit Price

BAND, BOOT LWR
BAND, BOOT LOWER

51576-00B00-000 5157600B00000

$15,97

Unit Price

BOOT, FRONT FORK

51571-32E00-019

51571-32E01-000

$79,97

Unit Price

DISCONTINUE
BOOT (GRAY)

51571-32E00-1LU 5157132E001LU

Not available

BAND, BOOT
BAND, BOOT UPPER

51575-32E00-000 5157532E00000

$18,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of DR. Let us know if you have any questions.
