FUEL TANK COVER (MODEL X) REFER TO FIG.35C(E-10) FOR MODEL Y

FUEL TANK COVER (MODEL Y) FOR SUZUKI FREEWIND 650 1997

FUEL TANK COVER (MODEL K1)

Item numbers

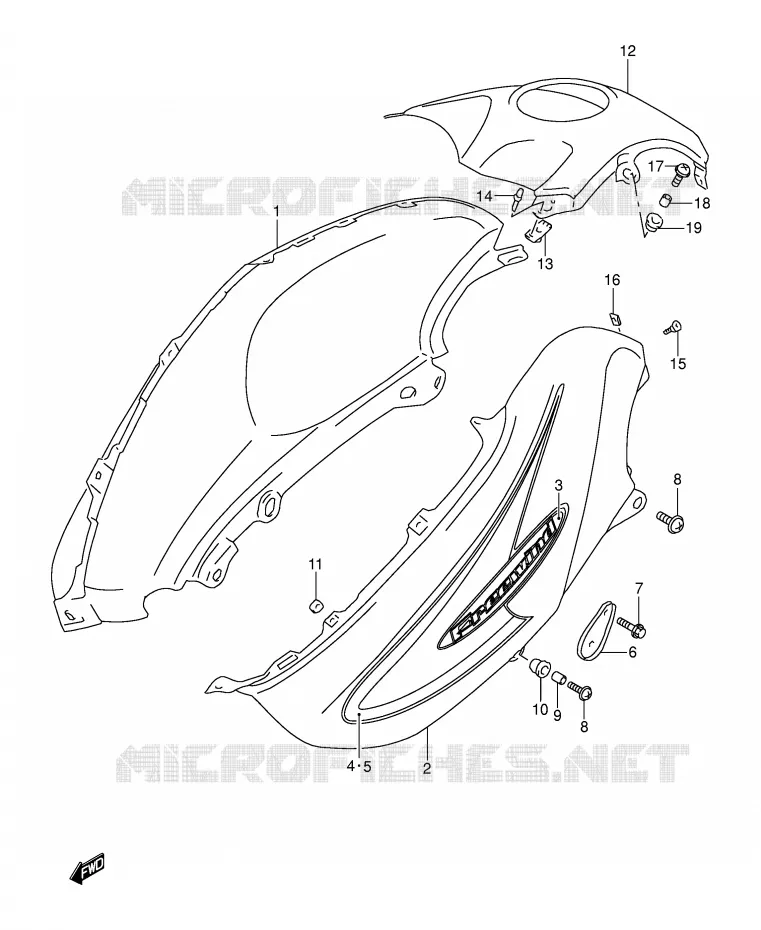

FUEL TANK COVER (MODEL Y) Suzuki MOTO 650 FREEWIND 1997 XF650V(E2)
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
COVER, FUEL TANK RH (BLUE)

44171-04F00-Y7H   4417104F00Y7H

4417104F00Y7H
Not available
1
COVER, FUEL TANK RH (RED)

44171-04F00-Y7M   4417104F00Y7M

4417104F00Y7M
Not available
1
COVER, FUEL TANK RH (GOLD)

44171-04F00-YC7   4417104F00YC7

4417104F00YC7
Not available
2
COVER, FUEL TANK LH (BLUE)

44181-04F00-Y7H   4418104F00Y7H

4418104F00Y7H
Not available
2
COVER, FUEL TANK LH (RED)

44181-04F00-Y7M   4418104F00Y7M

4418104F00Y7M
Not available
2
COVER, FUEL TANK LH (GOLD)

44181-04F00-YC7   4418104F00YC7

4418104F00YC7
Not available
3
EMBLEM (GOLD)

68111-04F10-YH7   6811104F10YH7

6811104F10YH7
Not available
3
EMBLEM (RED)

68111-04F10-YH8   6811104F10YH8

6811104F10YH8
Not available
3
EMBLEM (BLUE)

68111-04F10-YH9   6811104F10YH9

6811104F10YH9
Not available
4
TAPE, RH

68115-04F00-CH3   6811504F00CH3

6811504F00CH3
Not available
4
TAPE, RH

68115-04F00-CH4   6811504F00CH4

6811504F00CH4
Not available
4
TAPE, RH

68115-04F00-CH5   6811504F00CH5

6811504F00CH5
Not available
5
TAPE, LH

68116-04F00-CH3   6811604F00CH3

6811604F00CH3
Not available
5
TAPE, LH

68116-04F00-CH4   6811604F00CH4

6811604F00CH4
Not available
5
TAPE, LH

68116-04F00-CH5   6811604F00CH5

6811604F00CH5
Not available
6
BRACKET, SIDE COVER

44175-04F00-000   4417504F00000

4417504F00000
Not available
7
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

8
SCREW

09136-06085-000   0913606085000

0913606085000
Not available
9
SPACER,6.5X9X10<br />SPACER
SPACER, 6.5X9X10
SPACER

09180-06307-000   0918006307000

0918006307000

Unit Price

10
09320-09062

09320-09026-000  

0932009026000
Not available
11
NUT,COWL<br />NUT
NUT, COWL
NUT

94484-24F00-000   9448424F00000

9448424F00000

Unit Price

12
COVER, TANK UPPER (CHARCOAL)

44191-04F00-24K   4419104F0024K

4419104F0024K
Not available
13
PLATE, FRONT

94483-12C01-000   9448312C01000

9448312C01000
Not available
14
RIVET

09229-03019-000   0922903019000

0922903019000
Not available
15
SCREW<br />SCREW, UPPER & SIDE
SCREW
SCREW, UPPER & SIDE

09139-05054-000   0913905054000

0913905054000

Unit Price

16
NUT,COWL<br />NUT
NUT, COWL
NUT

94484-24F00-000   9448424F00000

9448424F00000

Unit Price

17
SCREW

09136-06085-000   0913606085000

0913606085000
Not available
18
SPACER,6.5X9X10<br />SPACER
SPACER, 6.5X9X10
SPACER

09180-06307-000   0918006307000

0918006307000

Unit Price

19
09320-09062

09320-09026-000  

0932009026000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK COVER (MODEL Y) of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
