Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI FREEWIND 650 1997

STARTER MOTOR CLUTCH

Item numbers

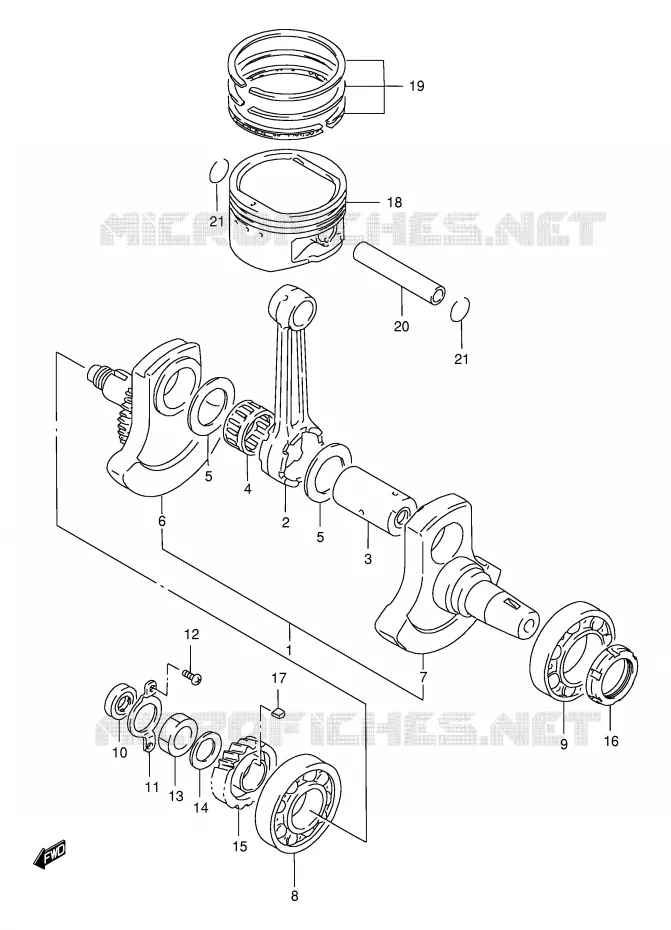

CRANKSHAFT Suzuki MOTO 650 FREEWIND 1997 XF650V(E2)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
1
CRANKSHAFT SET

12000-04820-000   1200004820000

1200004820000
Not available
2
ROD, CONNECTING

12161-04F00-000   1216104F00000

1216104F00000
Not available
3
PIN, CRANK

12211-32E00-000   1221132E00000

1221132E00000

Unit Price

4
BEARING

09263-37006-000  

09263-37007-000
 0926337006000

Unit Price

5
WASHER (37X55X1)

09160-37006-000   0916037006000

0916037006000

Unit Price

6
CRANKSHAFT SET, R
CRANKSHAFT SET, RH

12221-32810-000   1222132810000

1222132810000

Unit Price

7
12261-32E10
CRANKSHAFT, LH

12261-32E00-000   1226132E00000

1226132E00000
Not available
8
BEARING, 40X80X18
BEARING, RH (40X80X18)

09262-40008-000   0926240008000

0926240008000

Unit Price

9
BEARING, CRANKSHAFT, L
BEARING, LH (45X85X19)

09262-45011-000   0926245011000

0926245011000

Unit Price

10
CR SHAFT OIL SEAL
OIL SEAL, RH (16X30X6)

09282-16002-000   0928216002000

0928216002000

Unit Price

11
RETAINER, CRANKSHAFT BEARING, R
PLATE, RH

12548-37400-000   1254837400000

1254837400000

Unit Price

12
SCREW

02112-05083-000  

02112-0508A-000
 0211205083000

Unit Price

13
NUT CLUTCH SHOE

09140-20008-000  

09140-20013-000
 0914020008000

Unit Price

14
LOCK WASHER

09164-20003-000   0916420003000

0916420003000

Unit Price

15
GEAR, PRIMARY DRIVE (NT:28)

21111-32E00-000   2111132E00000

2111132E00000

Unit Price

16
NUT, CRANKSHAFT BRG, L
NUT

12664-04F00-000   1266404F00000

1266404F00000

Unit Price

17
KEY
KEY, GEAR

09420-05007-000   0942005007000

0942005007000

Unit Price

18
PISTON

12111-04F00-0F0   1211104F000F0

1211104F000F0
Not available
19
RING SET, PISTON

12140-32E10-000   1214032E10000

1214032E10000

Unit Price

20
PIN, PISTON

12151-14A01-000   1215114A01000

1215114A01000

Unit Price

21
CIRCLIP

09381-23003-000   0938123003000

0938123003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
