HEADLIGHT (MODEL V / W / X E4,E17,E18,E22,E25,E34,P9,P37) REFER TO FIG.25C(D-10) FOR MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,

HEADLIGHT (MODEL Y / K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) FOR SUZUKI FREEWIND 650 2001

INDICATORS

Item numbers

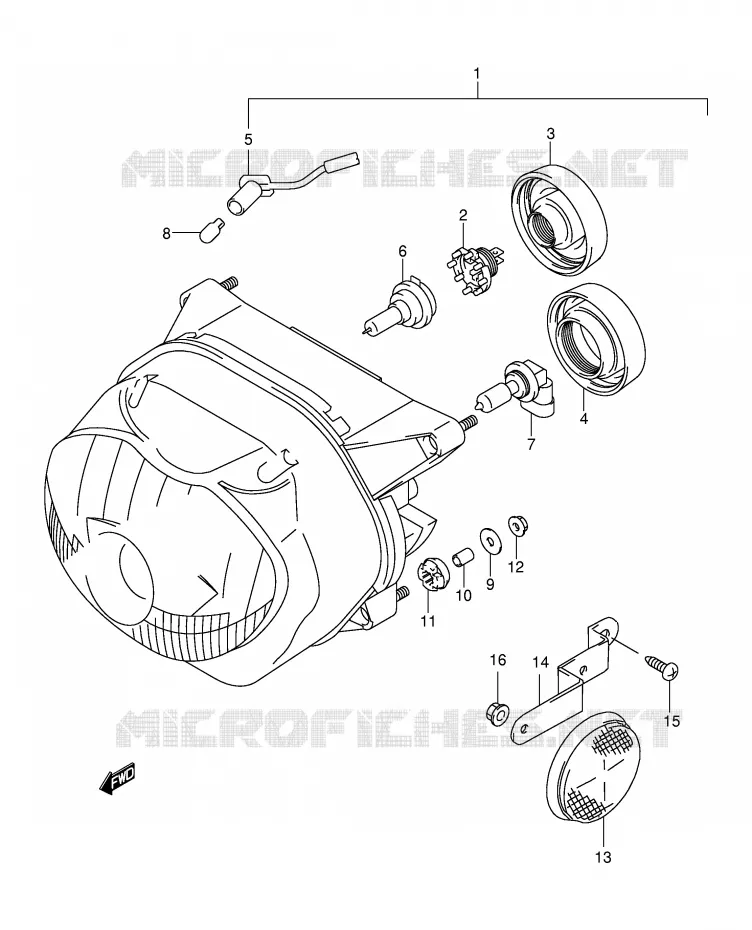

HEADLIGHT (MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) Suzuki MOTO 650 FREEWIND 2001 XF650K1(E2)

1

HEADLAMP ASSY

35100-04F90-999 3510004F90999

Not available

2

ADAPTER ASSY
ADAPTOR ASSY

35175-24F00-000 3517524F00000

$27,97

Unit Price

3

SOCKET, COVER

35125-24F10-000 3512524F10000

$34,97

Unit Price

4

SOCKET, COVER

35125-24F00-000 3512524F00000

$35,97

Unit Price

5

CORD ASSY

36118-04F90-000 3611804F90000

Not available

6

BULB(12V21W)
BULB (12V, 55W, H7, PX26D, PHLIPS)

09471-12188-000

Not available

7

BULB(12V55W)
BULB (12V, 60W, HB3, P20D)

09471-12151-000

Not available

8

09471-12216
BULB (12V, 5W)

09471-12081-000

Not available

9

WASHER (6.5X20X1.6)

09160-06088-000 0916006088000

$2,97

Unit Price

10

SPACER (6.5X9X12.5)

09180-06267-000 0918006267000

$5,97

Unit Price

11

CUSHION

09320-09010-000 0932009010000

$4,97

Unit Price

12

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

13

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000

35950-14A11-000

$19,97

Unit Price

14

BRACKET, FRONT SIDE REAR

35956-04F00-000 3595604F00000

Not available

15

03511-0516A
SCREW, FRONT SIDE REAR

03512-05163-000

Not available

16

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
