Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI FREEWIND 650 2001

REAR CALIPER (MODEL V / W) REFER TO FIG.55A(I-6) FOR MODEL X/Y/K1

Item numbers

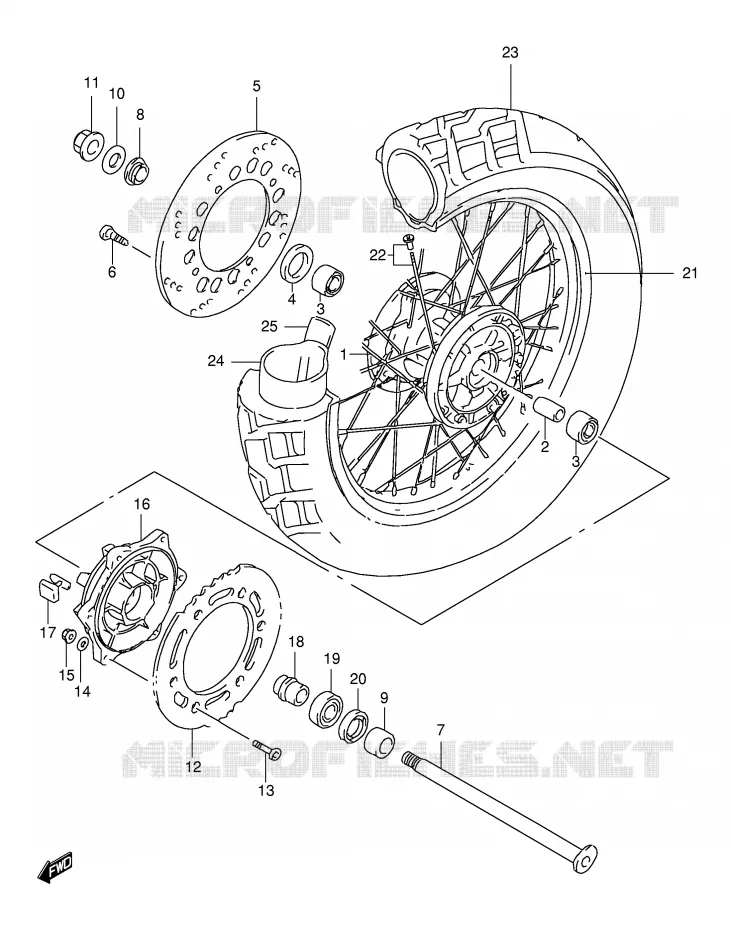

REAR WHEEL Suzuki MOTO 650 FREEWIND 2001 XF650K1(E2)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-15D10-000   6411115D10000

6411115D10000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, HUB BEARING

64731-15D00-000   6473115D00000

6473115D00000

Unit Price

3
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

4
DUST SEAL
SEAL, HUB RH (26X47X5)

09283-26019-000   0928326019000

0928326019000

Unit Price

5
DISC, RR BRAKE
DISC, REAR BRAKE

69211-32E01-000   6921132E01000

6921132E01000

Unit Price

6
BOLT

59421-03A10-000  

09106-08155-000
 5942103A10000

Unit Price

7
AXLE, REAR

64711-04F00-000   6471104F00000

6471104F00000
Not available
8
SPACER, RR AXLE, R
SPACER, RH

64741-05D00-000   6474105D00000

6474105D00000

Unit Price

9
SPACER, RR AXLE, L
SPACER, LH

64751-15D00-000   6475115D00000

6475115D00000

Unit Price

10
WASHER

09160-19022-000   0916019022000

0916019022000

Unit Price

11
NUT

08319-21188-000   0831921188000

0831921188000
Not available
12
SPROCKET, REAR (NT:43)

64511-32E20-000   6451132E20000

6451132E20000
Not available
13
SCREW<br />BOLT (8X30.5)
SCREW
BOLT (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

14
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
15
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
16
DRUM, RR SPROCKET MOUNTING
DRUM, REAR SPROCKET

64611-15D01-000   6461115D01000

6461115D01000

Unit Price

17
ABSORBER, REAR HUB SHOCK

64651-04F00-000   6465104F00000

6465104F00000
Not available
18
RETAINER, RR SPROCKET DRUM
RETAINER, SPROCKET DRUM

64733-15D00-000   6473315D00000

6473315D00000

Unit Price

19
BEARING<br />BEARING (25X52X15)
BEARING
BEARING (25X52X15)

09262-25061-000   0926225061000

0926225061000

Unit Price

20
SEAL, OIL
SEAL, DUST (34X52X6)

09283-34003-000   0928334003000

0928334003000

Unit Price

21
RIM, REAR WHEEL (MT3.00X17) (BLACK)

65311-04F00-000   6531104F00000

6531104F00000
Not available
21
RIM, REAR WHEEL (MT3.00X17) (SILVER)

65311-04F10-000   6531104F10000

6531104F10000
Not available
22
SPOKE SET, REAR WHEEL

65320-04F00-000   6532004F00000

6532004F00000
Not available
23
TIRE, REAR (PIRELLI) (130/80 R17 65H MT80RS)

65110-04F00-000   6511004F00000

6511004F00000
Not available
24
TUBE ASSY, WHEEL INNER (PIRELLI)

65200-04F00-000   6520004F00000

6520004F00000
Not available
25
PROTECTOR, INNER TUBE (PIRELLI)

65261-04F00-000   6526104F00000

6526104F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
