FUEL TANK (MODEL K9) COLOR : GDW=YPA(WHITE),YRH(MAGENTA)

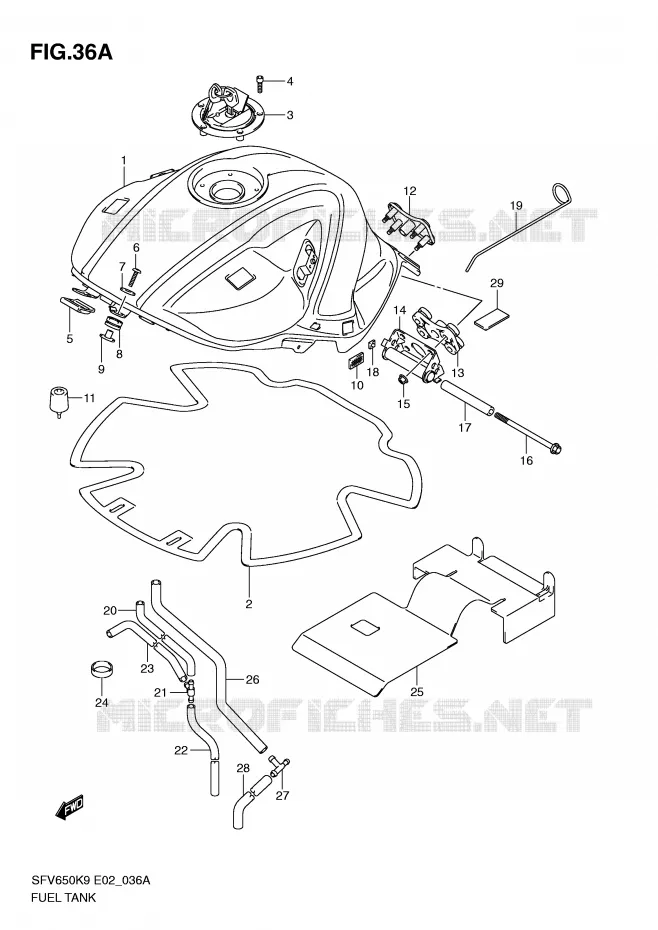

FUEL TANK (MODEL L0) FOR SUZUKI GLADIUS 650 2010

FUEL TANK SIDE COVER (MODEL K9) COLOR : GDW=YPA(WHITE),YRH(MAGENTA)

Item numbers

DISCONTINUE
TANK ASSY, FUEL (BLACK)

44100-44H00-YAY

Not available

TANK ASSY, FUEL (BLUE)

44100-44H00-YBA 4410044H00YBA

Not available

TANK ASSY, FUEL (GRAY)

44100-44H00-YHF 4410044H00YHF

Not available

TANK ASSY, FUEL (BLACK)

44100-44H10-YAY 4410044H10YAY

Not available

TANK ASSY, FUEL (BLUE)

44100-44H10-YBA 4410044H10YBA

Not available

TANK ASSY, FUEL (GRAY)

44100-44H10-YHF 4410044H10YHF

Not available

SHIELD, FUEL TANK HEAT
SHIELD, TANK HEAT

44191-44H00-000 4419144H00000

$87,97

Unit Price

CAP SET, FUEL TANK FILLER

44200-16850-000

44200-16852-000

$206,97

Unit Price

BOLT, L:20
BOLT

09106-05017-000 0910605017000

$4,97

Unit Price

RUBBER, FUEL TANK FR
RUBBER, FRONT

44546-44H00-000 4454644H00000

$15,97

Unit Price

SCREW
SCREW, FRONT

09139-06029-000 0913906029000

$9,97

Unit Price

WASHER(6.5X22X1.6)
WASHER

09160-06054-000 0916006054000

$2,97

Unit Price

CUSHION, FUEL TANK FR

44511-16G00-000

44511-16G01-000

$8,97

Unit Price

SPACER, FUEL TANK FR
WASHER, LOWER

44512-16G00-000 4451216G00000

$11,97

Unit Price

FASTENER, FRAME COVER
FASTENER, SIDE

47912-37H00-000 4791237H00000

$14,97

Unit Price

CUSHION, FUEL TANK RR

44542-29G00-000

44542-29G01-000

$12,97

Unit Price

BRACKET, FUEL TANK RR UP
BRACKET, REAR UPPER

44570-16G00-000 4457016G00000

$18,97

Unit Price

CUSHION, FUEL TANK RR
CUSHION, LOWER

44542-16G00-000 4454216G00000

$16,97

Unit Price

BRACKET, FUEL TANK RR
BRACKET, REAR LOWER

44530-44H00-000 4453044H00000

$25,97

Unit Price

NUT

08319-3106A-000 083193106A000

$3,97

Unit Price

BOLT 6X100
BOLT, JOINT

09103-06060-000 0910306060000

$4,97

Unit Price

SPACER, FUEL TANK
SPACER, JOINT

44561-35F00-000 4456135F00000

$20,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

STAY, FUEL TANK

44574-16G00-000 4457416G00000

$24,97

Unit Price

HOSE, BREATHER NO.1

44424-44H00-000 4442444H00000

Not available

3WAY
3 WAY, BREATHER

09367-06007-000 0936706007000

$4,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

DISCONTINUE
HOSE

44425-09E00-000

Not available

HOSE(12X16X600)

09352-12163-600

09352-12164-600

$19,97

Unit Price

SHEET, SHIELD RUBBER

44271-44H00-000 4427144H00000

Not available

HOSE, TANK WATER DRAIN

44423-44H00-000 4442344H00000

Not available

3 WAY
3 WAY, WATER DRAIN

09367-08005-000 0936708005000

$5,97

Unit Price

HOSE, WATER DRAIN

44423-44H10-000 4442344H10000

Not available

COVER, HARNESS

36920-08D10-000

36920-06400-000

$5,97

Unit Price
