TRANSMISSION

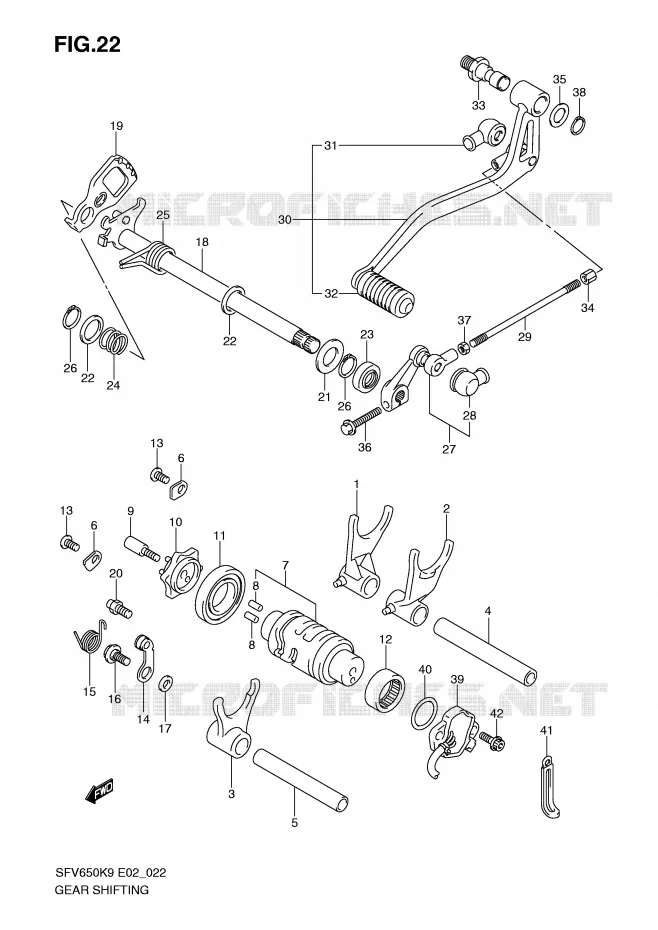

GEAR SHIFTING ASSY FOR SUZUKI GLADIUS 650 2010

STAND

Item numbers

FORK, GEAR SHIFT NO.1

25211-42E20-000 2521142E20000

$97,97

Unit Price

FORK, GEAR SHIFT NO.2

25221-42E20-000 2522142E20000

$97,97

Unit Price

FORK, GEAR SHIFT NO.3

25231-42E20-000 2523142E20000

$97,97

Unit Price

SHAFT, GEAR SHIFT FORK

25411-26D01-000 2541126D01000

$25,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.1
SHAFT, GEAR SHIFT FORK

25411-44B00-000 2541144B00000

$31,97

Unit Price

RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000 2474121A00000

$4,97

Unit Price

CAM, GEAR SHIFT

25310-19F00-000 2531019F00000

$142,97

Unit Price

PIN
KNOCK PIN

04221-04089-000 0422104089000

$1,97

Unit Price

BOLT, GEAR SHIFT CAM PLATE
STOPPER, GEAR SHIFT CAM

25312-42F01-000 2531242F01000

$12,97

Unit Price

PLATE, GEAR SHIFT CAM

25381-19F20-000 2538119F20000

$45,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$39,97

Unit Price

R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000 0926325018000

$29,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

STOPPER, SHIFT CAM

25350-35F00-000

25350-35F10-000

$35,97

Unit Price

SPRING, SHIFT
SPRING

25355-35F01-000 2535535F01000

$5,97

Unit Price

BOLT
BOLT (6X14.3)

09111-06041-000 0911106041000

$4,97

Unit Price

THRUST WASHER
WASHER, CAM STOPPER THR

08211-06141-000 0821106141000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-19F10-000 2551019F10000

$117,97

Unit Price

PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000

25512-06G20-000

$38,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01011-000 2567101011000

$6,97

Unit Price

WASHER (14X29X0.8)

09160-14016-000 0916014016000

$3,97

Unit Price

WASHER, GEAR SHIFT SH
WASHER (14X22X1)

09181-14167-000 0918114167000

$3,97

Unit Price

SEAL, OIL(14X22X6)
SEAL (14X22X6)

09283-14006-000 0928314006000

$7,97

Unit Price

SPRING

09440-17009-000 0944017009000

$2,97

Unit Price

SPRING

09444-20001-000 0944420001000

$9,97

Unit Price

CIRCLIP

08331-3114A-000 083313114A000

$3,97

Unit Price

ARM, GEAR SHIFT LINK

25520-22A10-000

25520-22A11-000

$65,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

ROD, GEAR SHIFT LINK

25525-44H00-000 2552544H00000

$18,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-44H00-000

25600-44H02-000

$89,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

RUBBER, GEAR SHIFT PEDAL

25652-20C00-000 2565220C00000

$7,97

Unit Price

SHAFT, GEAR SHIFT LEVER

25617-03F10-000 2561703F10000

$18,97

Unit Price

NUT

09140-06025-000 0914006025000

$2,97

Unit Price

SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000

Not available

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

NUT

08310-00067-000 0831000067000

$2,97

Unit Price

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

SENSOR ASSY, GEAR POSITION

37730-44H00-000 3773044H00000

Not available

O RING
O-RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

DISCONTINUE
CLAMP (L:80)

09404-08419-000

Not available

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
