CYLINDER

CRANKCASE FOR SUZUKI SV-S 650 2012

CRANKCASE COVER

Item numbers

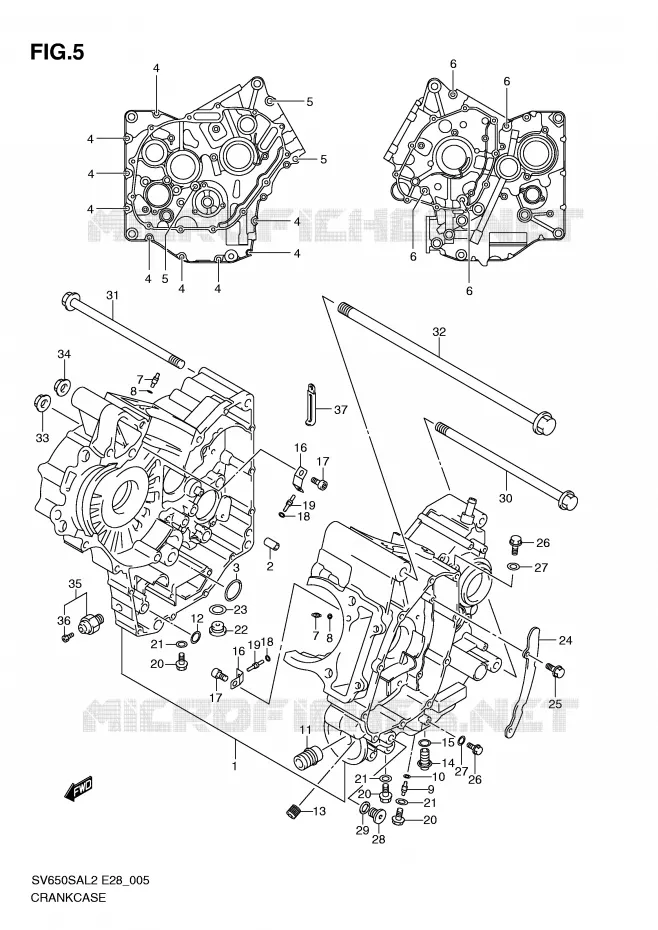

CRANKCASE Suzuki MOTO 650 SV-S 2012 SV650SAL2(E28)
1
2
2
2
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
6
7
7
8
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
19
20
20
21
21
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
1
DISCONTINUE
CRANKCASE SET

11301-20883-000   1130120883000

1130120883000
Not available
2
PIN, CRANKCASE
PIN (8.4X11X20)

09206-11007-000   0920611007000

0920611007000

Unit Price

3
O RING (D:2.4,ID:15.8)
O RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000
Not available
4
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

5
BOLT

07120-0855A-000   071200855A000

071200855A000

Unit Price

6
BOLT
BOLT

07120-0880A-000   071200880A000

071200880A000

Unit Price

7
JET,OIL<br />JET (14)
JET, OIL
JET (14)

09493-28010-000   0949328010000

0949328010000

Unit Price

8
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

9
JET,OIL<br />JET (14)
JET, OIL
JET (14)

09493-28010-000   0949328010000

0949328010000

Unit Price

10
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

11
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

12
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

13
JET, OIL GALLERY (3.6)

11329-17G00-000   1132917G00000

1132917G00000

Unit Price

14
PLUG, OIL DRAIN
PLUG (12X20)

09247-12011-000   0924712011000

0924712011000

Unit Price

15
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
16
PLATE, PISTON COOLING JET

16438-19F00-000   1643819F00000

1643819F00000

Unit Price

17
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

18
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

19
JET (13)
JET (13)

09493-26007-000   0949326007000

0949326007000

Unit Price

20
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

21
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

22
PLUG,OIL<br />PLUG
PLUG, OIL
PLUG

09248-16012-000   0924816012000

0924816012000

Unit Price

23
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

24
PLATE, OIL SEPARATOR
PLATE, OIL SEPARATOR

11323-19F00-000   1132319F00000

1132319F00000

Unit Price

25
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

26
BOLT

01547-0610A-000   015470610A000

015470610A000

Unit Price

27
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
28
PLUG
PLUG (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price

29
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

30
BOLT,L:255<br />BOLT (10X255)
BOLT, L:255
BOLT (10X255)

09103-10137-000   0910310137000

0910310137000

Unit Price

31
BOLT (10X225)
BOLT (10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

32
BOLT (12X310)
BOLT (12X310)

09103-12054-000   0910312054000

0910312054000

Unit Price

33
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

34
NUT

09159-12054-000   0915912054000

0915912054000

Unit Price

35
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

36
BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

37
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
