LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI SV-S 650 2012

STEERING COLUMN

Item numbers

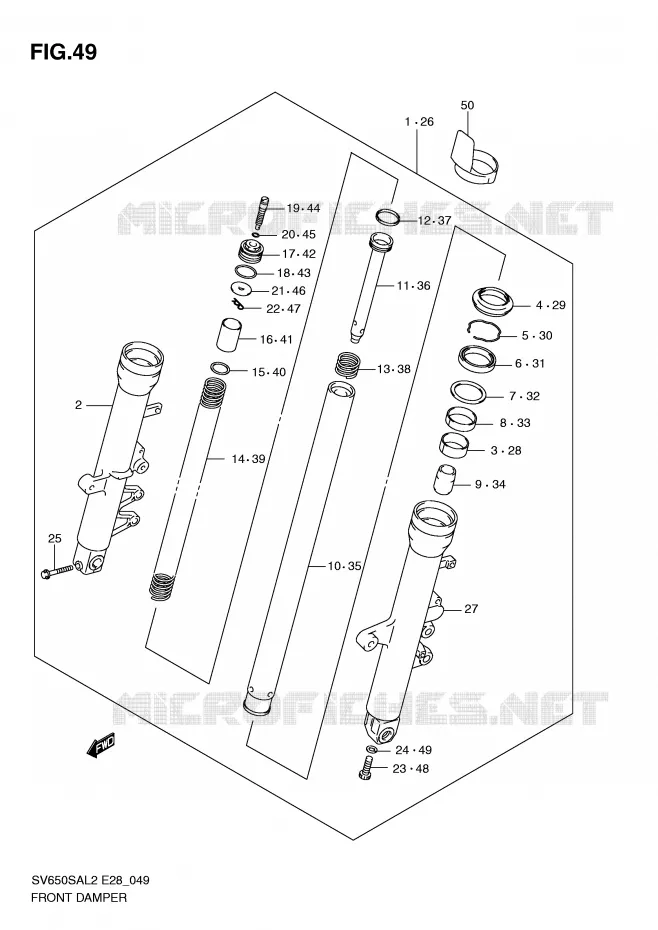

FRONT FORK Suzuki MOTO 650 SV-S 2012 SV650SAL2(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-17GB0-000   5110317GB0000

5110317GB0000

Unit Price

2
DISCONTINUE

51130-17GB0-000  

5113017GB0000
Not available
3
BUSH, SLIDE

51121-42E00-000   5112142E00000

5112142E00000

Unit Price

4
SEAL, DUST

51173-01H00-000   5117301H00000

5117301H00000

Unit Price

5
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

6
SEAL, OIL

51153-01H00-000   5115301H00000

5115301H00000

Unit Price

7
SPACER, SEAL

51168-17G80-000   5116817G80000

5116817G80000

Unit Price

8
BUSH, GUIDE

51152-17G00-000   5115217G00000

5115217G00000

Unit Price

9
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-48B31-000   5119548B31000

5119548B31000

Unit Price

10
TUBE, INNER

51110-17G80-000   5111017G80000

5111017G80000

Unit Price

11
CYLINDER

51146-17G80-000   5114617G80000

5114617G80000

Unit Price

12
RING, PISTON
RING, PISTON

51196-12C00-000   5119612C00000

5119612C00000

Unit Price

13
SPRING, REBOUND
SPRING, REBOUND

51177-12C00-000   5117712C00000

5117712C00000

Unit Price

14
SPRING, FRONT

51171-17G80-000   5117117G80000

5117117G80000
Not available
15
JOINT, SPRING
JOINT, SPRING

51192-19C00-000   5119219C00000

5119219C00000

Unit Price

16
COLLAR,SPRING(32.9X34X50)<br />COLLAR, SPRING
COLLAR, SPRING(32.9X34X50)
COLLAR, SPRING

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

17
BOLT, FORK
BOLT, FORK

51189-12C00-000   5118912C00000

5118912C00000

Unit Price

18
O RING
O RING

51117-12C00-000   5111712C00000

5111712C00000

Unit Price

19
ADJUSTER BOLT, SPRING

51185-17G00-000   5118517G00000

5118517G00000

Unit Price

20
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

21
SEAT, SPRING
SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

22
PIN, SEAT SPRING
PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

23
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

24
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

25
BOLT(8X40)
BOLT

51328-03FK0-000   5132803FK0000

5132803FK0000

Unit Price

26
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-17GB0-000   5110417GB0000

5110417GB0000

Unit Price

27
TUBE, OUTER, L
TUBE, OUTER LH

51140-17GB0-000  

5114017GB0000
Not available
28
BUSH, SLIDE

51121-42E00-000   5112142E00000

5112142E00000

Unit Price

29
SEAL, DUST

51173-01H00-000   5117301H00000

5117301H00000

Unit Price

30
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

31
SEAL, OIL

51153-01H00-000   5115301H00000

5115301H00000

Unit Price

32
SPACER, SEAL

51168-17G80-000   5116817G80000

5116817G80000

Unit Price

33
BUSH, GUIDE

51152-17G00-000   5115217G00000

5115217G00000

Unit Price

34
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-48B31-000   5119548B31000

5119548B31000

Unit Price

35
TUBE, INNER

51110-17G80-000   5111017G80000

5111017G80000

Unit Price

36
CYLINDER

51146-17G80-000   5114617G80000

5114617G80000

Unit Price

37
RING, PISTON
RING, PISTON

51196-12C00-000   5119612C00000

5119612C00000

Unit Price

38
SPRING, REBOUND
SPRING, REBOUND

51177-12C00-000   5117712C00000

5117712C00000

Unit Price

39
SPRING, FRONT

51171-17G80-000   5117117G80000

5117117G80000
Not available
40
JOINT, SPRING
JOINT, SPRING

51192-19C00-000   5119219C00000

5119219C00000

Unit Price

41
COLLAR,SPRING(32.9X34X50)<br />COLLAR, SPRING
COLLAR, SPRING(32.9X34X50)
COLLAR, SPRING

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

42
BOLT, FORK
BOLT, FORK

51189-12C00-000   5118912C00000

5118912C00000

Unit Price

43
O RING
O RING

51117-12C00-000   5111712C00000

5111712C00000

Unit Price

44
ADJUSTER BOLT, SPRING

51185-17G00-000   5118517G00000

5118517G00000

Unit Price

45
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

46
SEAT, SPRING
SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

47
PIN, SEAT SPRING
PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

48
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

49
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

50
PROTECTOR

51201-32F00-000   5120132F00000

5120132F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
