OIL PUMP

FUEL PUMP FOR SUZUKI V-STROM 650 2005

OIL COOLER

Item numbers

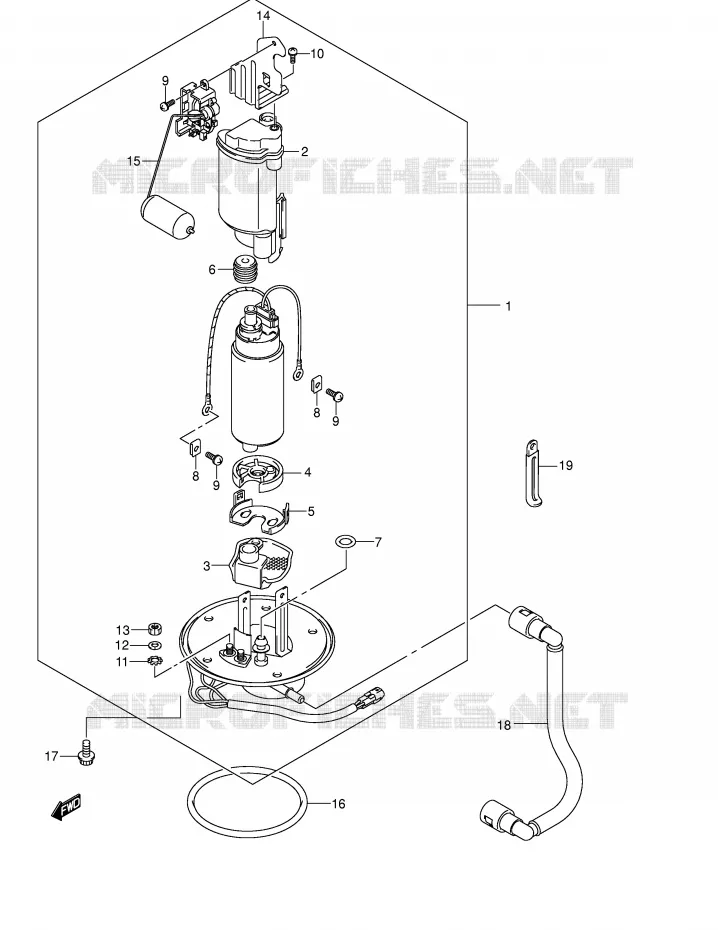

FUEL PUMP Suzuki MOTO 650 V-STROM 2005 DL650K5(E2)

1

PUMP ASSY, FUEL

15100-06G10-000 1510006G10000

$1 610,97

Unit Price

2

FILTER, FUEL
FILTER ASSY, FUEL

15410-24FB0-000 1541024FB0000

$585,97

Unit Price

3

STRAINER, FUEL PUMP

15420-35F01-000

15420-24FB0-000

$120,97

Unit Price

4

CUSHION
CUSHION, FUEL PUMP

15111-35F00-000 1511135F00000

$19,97

Unit Price

5

HOLDER, FUEL PUMP

15112-42F00-000 1511242F00000

$34,97

Unit Price

6

BUSH, FUEL PUMP

15114-35F00-000 1511435F00000

$27,97

Unit Price

7

O RING

15113-35F00-000 1511335F00000

$12,97

Unit Price

8

NUT

15115-35F00-000 1511535F00000

$17,97

Unit Price

9

SCREW

15116-06G10-000 1511606G10000

$9,97

Unit Price

10

SCREW

15116-35F10-000 1511635F10000

$13,97

Unit Price

11

SHEET

15117-06G10-000 1511706G10000

$22,97

Unit Price

12

WASHER

15171-35F00-000 1517135F00000

$12,97

Unit Price

13

WASHER, SPRING
SPRING WASHER

15172-35F00-000 1517235F00000

$8,97

Unit Price

14

NUT

15173-35F00-000 1517335F00000

$9,97

Unit Price

15

DISCONTINUE
BRACKET, FUEL GAUGE

15181-06G00-000 1518106G00000

Not available

16

GAUGE ASSY, FUEL LEVER
GAUGE ASSY

34810-06G10-000 3481006G10000

$294,97

Unit Price

17

O RING, FUEL PUMP

15201-35F00-000 1520135F00000

$27,97

Unit Price

18

BOLT

07120-06123-000

07120-0612B-000

$4,97

Unit Price

19

HOSE, FUEL

15810-27G00-000

15810-27G01-000

$116,97

Unit Price

20

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL PUMP of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
