OIL COOLER

WATER PUMP FOR SUZUKI V-STROM 650 2005

RADIATOR

Item numbers

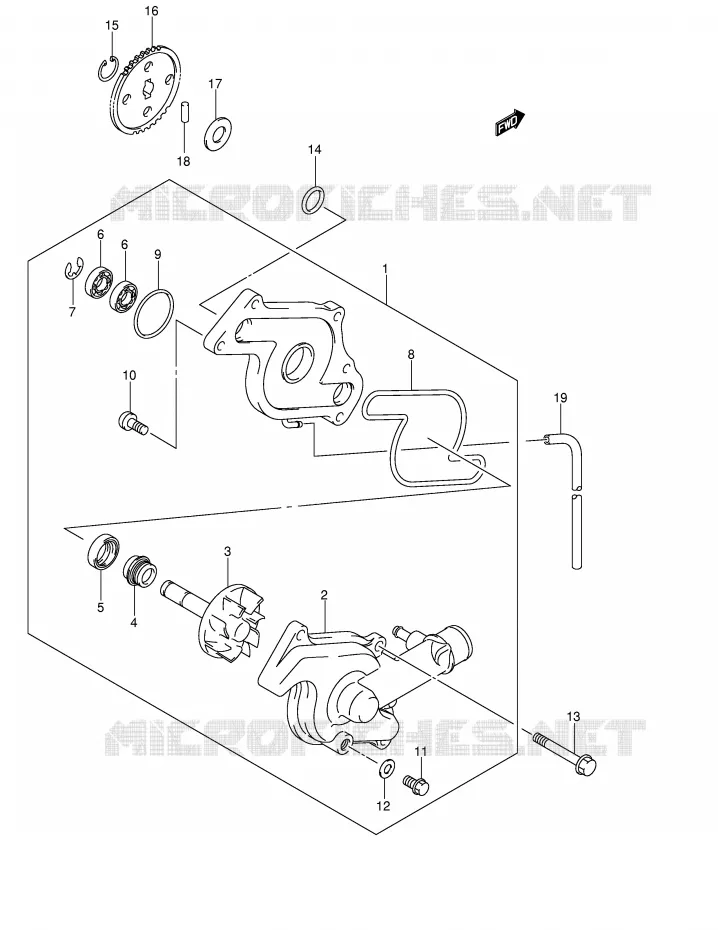

WATER PUMP Suzuki MOTO 650 V-STROM 2005 DL650K5(E2)

1

PUMP ASSY, WATER

17400-19F50-000

17400-19F51-000

$513,97

Unit Price

2

CASE, WATER PUMP

17411-19F50-000 1741119F50000

$156,97

Unit Price

3

IMPELLER/SHAFT

17491-19F40-000 1749119F40000

$63,97

Unit Price

4

SEAL, MECHANICAL

17470-02F10-000

17470-02F11-000

$29,97

Unit Price

5

OIL SEAL, WATER PUMP
OIL SEAL (10X21X5)

09283-10004-000 0928310004000

$7,97

Unit Price

6

BEARING

08110-69000-000 0811069000000

$27,97

Unit Price

7

08332-1108A
E RING

08332-11086-000

Not available

8

O RING

17418-19F00-000 1741819F00000

$8,97

Unit Price

9

O RING, WATER PUMP HOLDER
O RING

17435-33400-000 1743533400000

$16,97

Unit Price

10

SCREW

02112-06163-000

02112-0616A-000

$2,97

Unit Price

11

BOLT, DRAIN

17415-20920-000 1741520920000

$10,97

Unit Price

12

GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

13

BOLT, SPROCKET, COV L5
BOLT

09103-06216-000 0910306216000

$4,97

Unit Price

14

OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000 0928022001000

$3,97

Unit Price

15

CIRCLIP

08331-31106-000

08331-31109-000

$2,97

Unit Price

16

GEAR, WATER PUMP DRIVEN

17461-19F00-000 1746119F00000

$64,97

Unit Price

17

SHIM, 10X18X0.5
SHIM

09181-10158-000 0918110158000

$3,97

Unit Price

18

ROLLER(4X13.8)
ROLLER

09261-04002-000 0926104002000

$2,97

Unit Price

19

DISCONTINUE
HOSE

09352-35653-600

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
