Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI V-STROM 650 2005

CRANKSHAFT

Item numbers

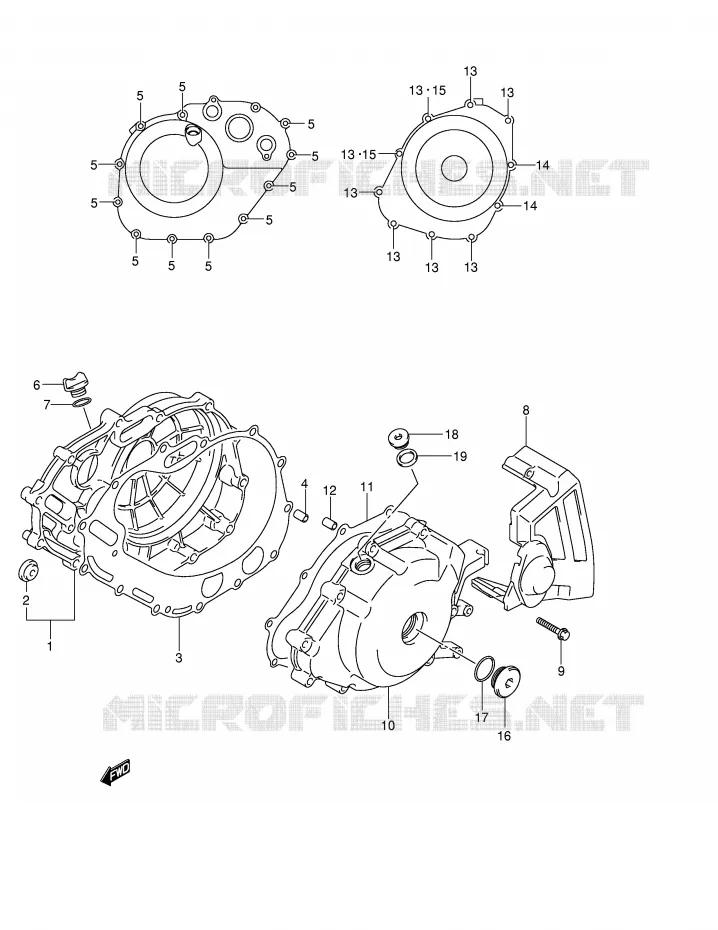

CRANKCASE COVER Suzuki MOTO 650 V-STROM 2005 DL650U3K5(E2)

1

COVER, CLUTCH

11340-17G00-000 1134017G00000

$390,97

Unit Price

2

LENS, OIL LEVEL CHECK

11971-33210-000 1197133210000

$17,97

Unit Price

3

GASKET, CLUTCH COVER

11482-17G00-000

11482-44H00-000

$17,97

Unit Price

4

PIN

04211-09149-000 0421109149000

$2,97

Unit Price

5

BOLT, ST CL COV/ST ID
BOLT

09103-06214-000 0910306214000

$4,97

Unit Price

6

PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000 1197125D00000

$6,97

Unit Price

7

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

8

COVER, ENGINE SPROCKET

11361-27G00-000 1136127G00000

$112,97

Unit Price

9

BOLT, MAG COV, L45
BOLT

09103-06224-000 0910306224000

$4,97

Unit Price

10

COVER, MAGNETO

11351-19F50-000 1135119F50000

$331,97

Unit Price

11

GASKET, MAGNETO COVER

11483-19F00-000 1148319F00000

$14,97

Unit Price

12

PIN

04211-09149-000 0421109149000

$2,97

Unit Price

13

BOLT, ST CL COV/ST ID
BOLT

09103-06214-000 0910306214000

$4,97

Unit Price

14

BOLT

09103-06239-000 0910306239000

$4,97

Unit Price

15

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

16

PLUG

09259-26011-000 0925926011000

$18,97

Unit Price

17

O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000 0928022008000

$3,97

Unit Price

18

PLUG, OIL
PLUG

09248-16012-000 0924816012000

$8,97

Unit Price

19

GASKET OIL GALLERY
GASKET (13.8X18.8X0.4)

09168-16002-000 0916816002000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
