REAR WHEEL

REAR CALIPER FOR SUZUKI V-STROM 650 2005

REAR BRAKE MASTER CYLINDER

Item numbers

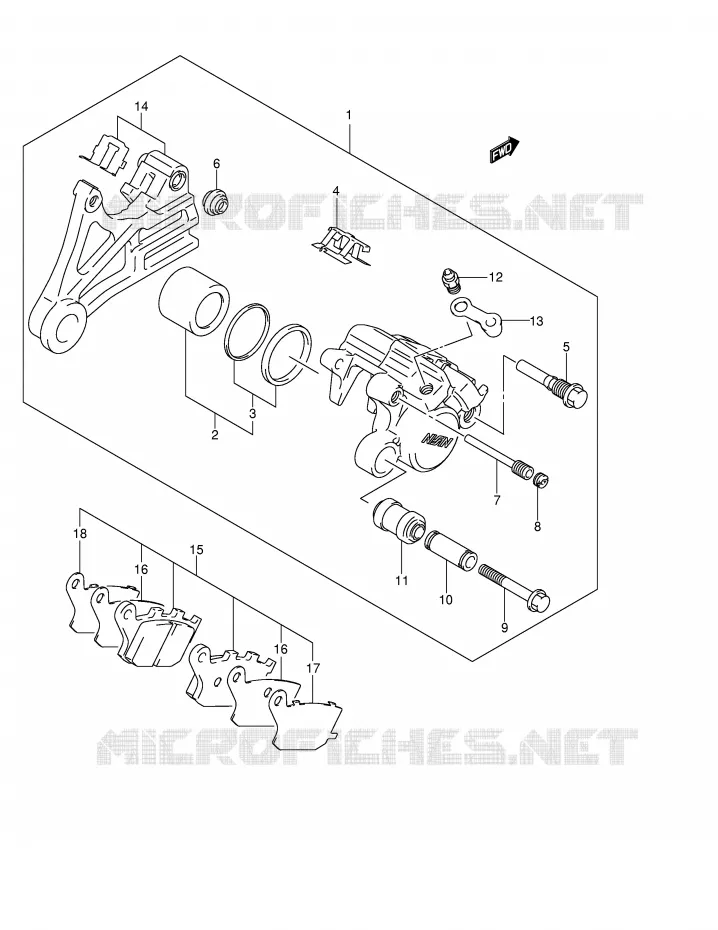

REAR CALIPER Suzuki MOTO 650 V-STROM 2005 DL650U3K5(E2)

1

CALIPER ASSY, REAR

69100-06G00-999 6910006G00999

$616,97

Unit Price

2

PISTON SET

69100-04810-000 6910004810000

$85,97

Unit Price

3

SEAL SET, PISTON

69100-04820-000 6910004820000

$18,97

Unit Price

4

SPRING, PAD

69115-06G00-000 6911506G00000

$12,97

Unit Price

5

BOLT

69105-04F00-000 6910504F00000

$24,97

Unit Price

6

BOOT

59303-14500-000 5930314500000

Not available

7

PIN, PAD
PIN, HANGER

69141-40F00-000 6914140F00000

$24,97

Unit Price

8

PLUG, PIN
PLUG

59146-21E10-000 5914621E10000

$9,97

Unit Price

9

BOLT

69182-04F00-000 6918204F00000

$14,97

Unit Price

10

SLEEVE

69185-04F00-000 6918504F00000

$27,97

Unit Price

11

BOOT, SLEEVE
BOOT

69186-04F00-000 6918604F00000

$22,97

Unit Price

12

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

13

CAP, BLEEDER
CAP

59122-01A00-000 5912201A00000

$6,97

Unit Price

14

BRACKET

69150-06G00-000 6915006G00000

$174,97

Unit Price

15

PAD & RETAINER SET

69100-06830-000 6910006830000

$79,45

Unit Price

16

INSULATOR

69132-06G00-000 6913206G00000

$27,97

Unit Price

17

RETAINER

69133-06G00-000 6913306G00000

$22,97

Unit Price

18

RETAINER

69134-06G00-000 6913406G00000

$22,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
