CRANKCASE

CRANKCASE COVER FOR SUZUKI V-STROM 650 2007

CRANKSHAFT

Item numbers

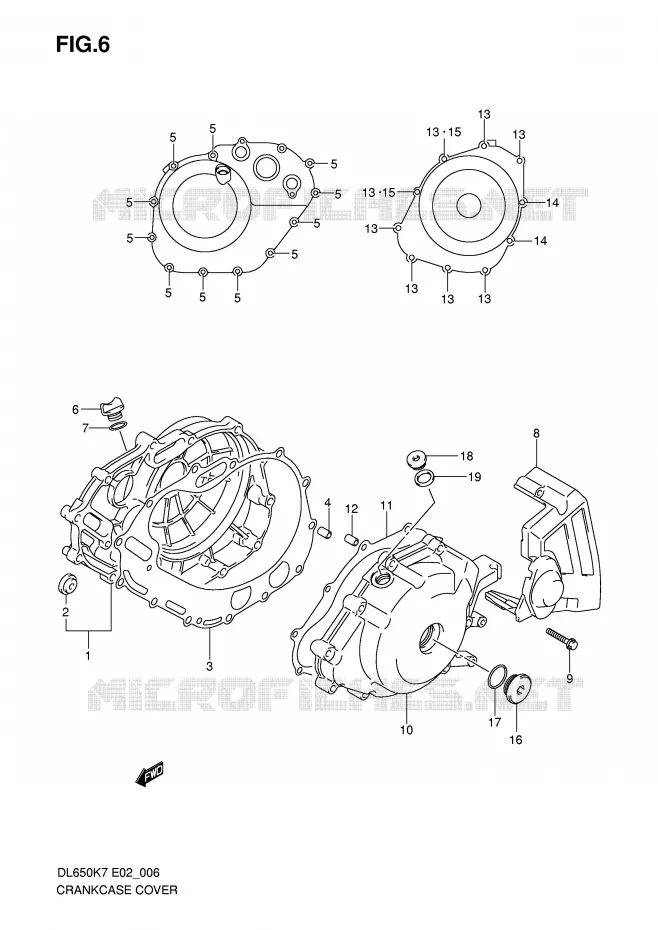

CRANKCASE COVER Suzuki MOTO 650 V-STROM 2007 DL650U3K7(E2)
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
13
13
13
13
13
13
13
14
14
15
15
16
17
18
19
1
COVER, CLUTCH

11340-17G00-000   1134017G00000

1134017G00000

Unit Price

2
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET, CLUTCH COVER

11482-17G00-000  

11482-44H00-000
 1148217G00000

Unit Price

4
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

5
BOLT, ST CL COV/ST ID
BOLT

09103-06214-000   0910306214000

0910306214000

Unit Price

6
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

7
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

8
COVER, ENGINE SPROCKET

11361-27G00-000   1136127G00000

1136127G00000

Unit Price

9
BOLT, MAG COV, L45
BOLT

09103-06224-000   0910306224000

0910306224000

Unit Price

10
COVER, MAGNETO

11351-19F50-000   1135119F50000

1135119F50000

Unit Price

11
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER

11483-19F00-000   1148319F00000

1148319F00000

Unit Price

12
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

13
BOLT, ST CL COV/ST ID
BOLT

09103-06214-000   0910306214000

0910306214000

Unit Price

14
BOLT

09103-06239-000   0910306239000

0910306239000

Unit Price

15
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
16
PLUG

09259-26011-000   0925926011000

0925926011000

Unit Price

17
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

18
PLUG,OIL<br />PLUG
PLUG, OIL
PLUG

09248-16012-000   0924816012000

0924816012000

Unit Price

19
GASKET OIL GALLERY<br />GASKET (13.8X18.8X0.4)
GASKET OIL GALLERY
GASKET (13.8X18.8X0.4)

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
