THROTTLE BODY

THROTTLE BODY FITTING FOR SUZUKI V-STROM 650 2007

AIR FILTER

Item numbers

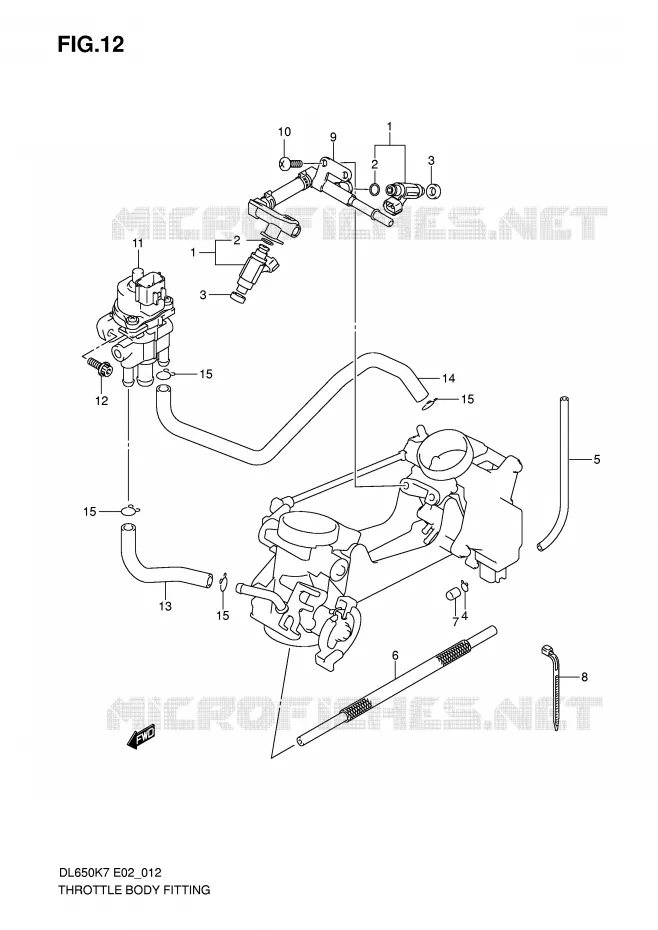

THROTTLE BODY FITTING Suzuki MOTO 650 V-STROM 2007 DL650U3K7(E2)
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
1
INJECTOR ASSY

15710-27G00-000   1571027G00000

1571027G00000

Unit Price

2
O RING

15717-16G00-000   1571716G00000

1571716G00000

Unit Price

3
SEAL

15722-29G00-000   1572229G00000

1572229G00000

Unit Price

4
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

5
HOSE

13683-16G30-000   1368316G30000

1368316G30000
Not available
6
DISCONTINUE
HOSE

13683-27G20-000  

1368327G20000
Not available
7
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

8
CLIP<br />CLAMP
CLIP
CLAMP

13671-02F00-000   1367102F00000

1367102F00000

Unit Price

9
DELIVERY PIPE ASSY

15730-17G01-000   1573017G01000

1573017G01000

Unit Price

10
SCREW
BOLT

13602-06128-000   1360206128000

1360206128000

Unit Price

11
VALVE, ISC

18117-27G00-000   1811727G00000

1811727G00000

Unit Price

12
BOLT

07120-0616A-000   071200616A000

071200616A000

Unit Price

13
HOSE, ISC VALVE FR

13697-27G00-000   1369727G00000

1369727G00000

Unit Price

14
HOSE, ISC VALVE RR

13698-27G00-000   1369827G00000

1369827G00000

Unit Price

15
CLIP

09401-11101-000   0940111101000

0940111101000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY FITTING of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
