FUEL TANK FOR SUZUKI V-STROM 650 2015

FUEL TANK - COVERS

Item numbers

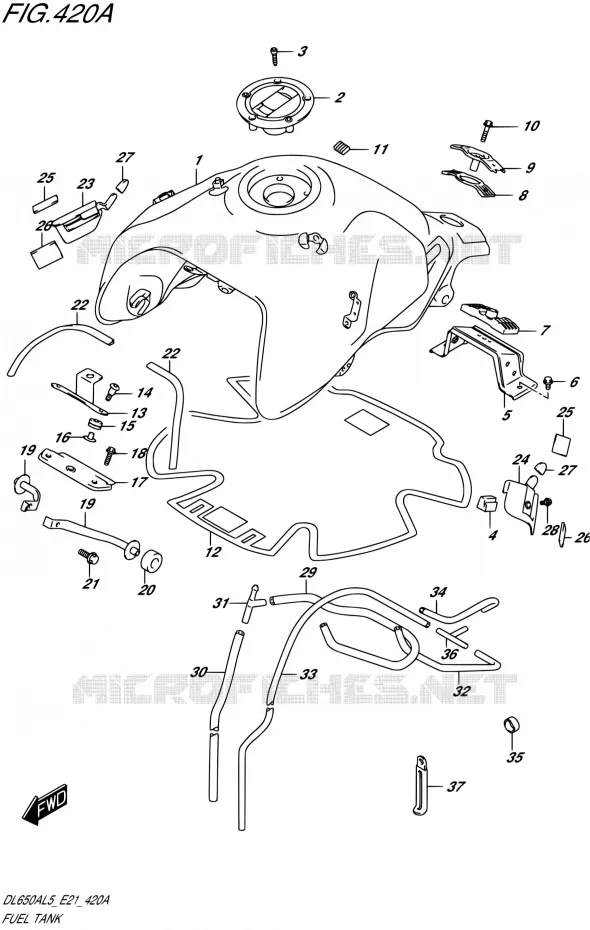

FUEL TANK Suzuki MOTO 650 V-STROM 2015 DL650AUE L5 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
25
26
27
27
28
29
30
31
32
33
34
35
36
37
1
TANK, FUEL (BLACK)

44100-11J10-YKV   4410011J10YKV

4410011J10YKV
Not available
2
CAP SET, FUEL TANK FILLER

44200-16850-000  

44200-16852-000
 4420016850000

Unit Price

3
BOLT, FUEL TANK FILLER CAP

44244-11J00-000   4424411J00000

4424411J00000

Unit Price

4
CUSHION, FUEL TANK SI

44541-11J00-000  

44541-11J01-000
 4454111J00000

Unit Price

5
BRACKET, FUEL TANK RR
BRACKET, REAR LOWER

44550-06G10-000   4455006G10000

4455006G10000

Unit Price

6
BOLT

01550-0816A-000   015500816A000

015500816A000

Unit Price

7
CUSHION, FUEL TANK RR LWR
CUSHION, LOWER

44545-06G00-000   4454506G00000

4454506G00000

Unit Price

8
CUSHION, FUEL TANK RR UPR
CUSHION, UPPER

44542-06G00-000   4454206G00000

4454206G00000

Unit Price

9
BRACKET, FUEL TANK RR UP
BRACKET, UPPER

44530-06G00-000   4453006G00000

4453006G00000

Unit Price

10
BOLT
BOLT

01550-0835A-000   015500835A000

015500835A000
Not available
11
FASTENER(20X15X2.6)
FASTENER

44572-44G00-000   4457244G00000

4457244G00000

Unit Price

12
SHIELD, FUEL TANK CTR
SHIELD, TANK CENTER

44194-11J00-000   4419411J00000

4419411J00000

Unit Price

13
BRACKET, FR COVER
BRACKET, FRONT COVER

44154-11J00-000   4415411J00000

4415411J00000

Unit Price

14
SCREW (6X25)

09139-06192-000   0913906192000

0913906192000

Unit Price

15
CUSHION, FUEL TANK FR

44511-16G00-000  

44511-16G01-000
 4451116G00000

Unit Price

16
SPACER, FUEL TANK FR
WASHER, FUEL TANK FRONT

44512-16G00-000   4451216G00000

4451216G00000

Unit Price

17
BRACKET, FUEL TANK FR
BRACKET, FUEL TANK FRONT

44520-11J00-000   4452011J00000

4452011J00000

Unit Price

18
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

19
BRACKET, FR SIDE
BRACKET, FRONT SIDE

44560-11J00-000   4456011J00000

4456011J00000

Unit Price

20
CUSHION, FR SIDE BRKT
CUSHION, FRONT SIDE BRACKET

44542-11J00-000   4454211J00000

4454211J00000

Unit Price

21
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

22
MOLDING, FUEL TANK

68241-11J01-000  

6824111J01000
Not available
23
BRACKET, FUEL TANK COVER, R
BRACKET, FUEL TANK COVER RH

44179-11J00-000   4417911J00000

4417911J00000

Unit Price

24
BRACKET, FUEL TANK COVER, L
BRACKET, FUEL TANK COVER LH

44189-11J00-000   4418911J00000

4418911J00000

Unit Price

25
FASTENER(33X25X2.6)
FASTENER, FUEL TANK

44572-13G00-000   4457213G00000

4457213G00000

Unit Price

26
CUSHION, TANK SIDE COVER
CUSHION, FUEL TANK SIDE COVER

44183-23H00-000   4418323H00000

4418323H00000

Unit Price

27
CUSHION

09329-18001-000   0932918001000

0932918001000

Unit Price

28
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

29
DISCONTINUE
HOSE, FUEL TANK DRAIN NO.1

44423-11J20-000  

4442311J20000
Not available
30
HOSE, FUEL TANK DRAIN NO.2

44423-11J30-000  

44423-11J31-000
 4442311J30000

Unit Price

31
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

32
HOSE, FUEL TANK BRTHR NO.1

44424-14J00-000  

44424-14J01-000
 4442414J00000

Unit Price

33
HOSE,5X8.2X2000
HOSE, 5X8.2X2000

09352-50823-00B  

09352-50005-00B
 093525082300B

Unit Price

34
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

35
HOSE(12X16X600)
HOSE(12X16X600)

09352-12163-600  

09352-12164-600
 0935212163600

Unit Price

36
3 WAY

09367-06007-000   0936706007000

0936706007000

Unit Price

37
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
