OIL COOLER

WATER PUMP FOR SUZUKI V-STROM 650 2015

RADIATOR (DL650AL5 E21)

Item numbers

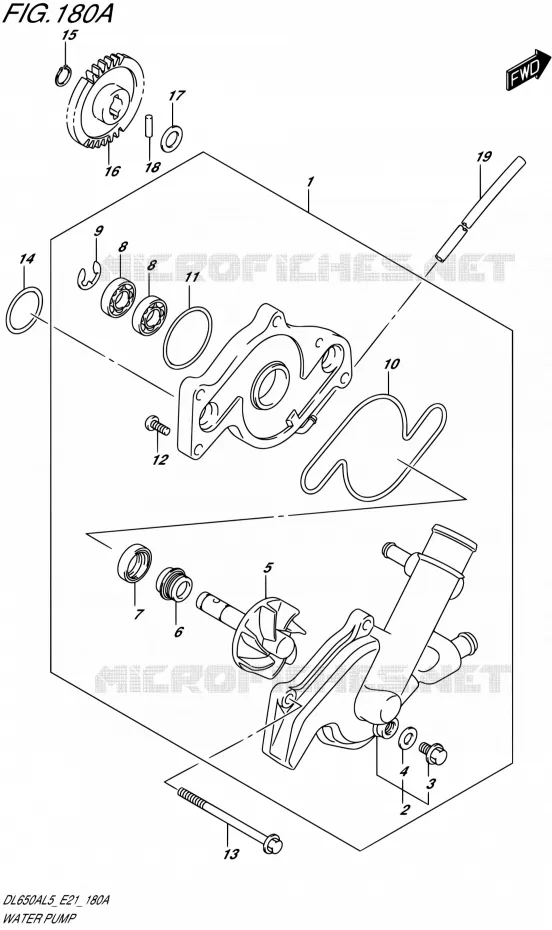

WATER PUMP Suzuki MOTO 650 V-STROM 2015 DL650AUE L5 (E21)

1

PUMP ASSY, WATER

17400-44H00-000

17400-44H01-000

$321,97

Unit Price

2

.CASE, WATER PUMP

17411-44H00-000 1741144H00000

$132,97

Unit Price

3

BOLT, DRAIN
..BOLT

17415-20920-000 1741520920000

$10,97

Unit Price

4

..GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

5

.IMPELLER/SHAFT

17491-19F40-000 1749119F40000

$63,97

Unit Price

6

SEAL, MECHANICAL

17470-02F10-000

17470-02F11-000

$29,97

Unit Price

7

OIL SEAL
.OIL SEAL (10X21X5)

17461-48G00-000 1746148G00000

$18,97

Unit Price

8

.BEARING (10X26X8)

09262-10014-000 0926210014000

$23,97

Unit Price

9

.E RING

08332-1108A-000 083321108A000

$3,97

Unit Price

10

.O RING

17418-19F00-000 1741819F00000

$8,97

Unit Price

11

O RING, WATER PUMP HOLDER
.O RING

17435-33400-000 1743533400000

$16,97

Unit Price

12

SCREW

02112-0510A-000

02112-0510B-000

$2,97

Unit Price

13

BOLT, ENG SPRKT COV, L
BOLT (6X70)

09103-06225-000 0910306225000

$4,97

Unit Price

14

OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000 0928022001000

$3,97

Unit Price

15

CIRCLIP

08331-31109-000 0833131109000

$2,97

Unit Price

16

GEAR, WATER PUMP DRIVEN
GEAR, WATER PUMP DRIVEN (NT:34)

17461-44H00-000 1746144H00000

$43,97

Unit Price

17

SHIM (10X18X0.5)

09181-10158-000 0918110158000

$3,97

Unit Price

18

ROLLER (4X13.8)

09261-04002-000 0926104002000

$2,97

Unit Price

19

DISCONTINUE
HOSE (3.5X6.5X600)

09352-35653-600

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
