Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK ESS (DL650A,DL650AUE)

FUEL TANK ESS (DL650XA) FOR SUZUKI V-STROM 650 2019

FUEL TANK - COVERS

Item numbers

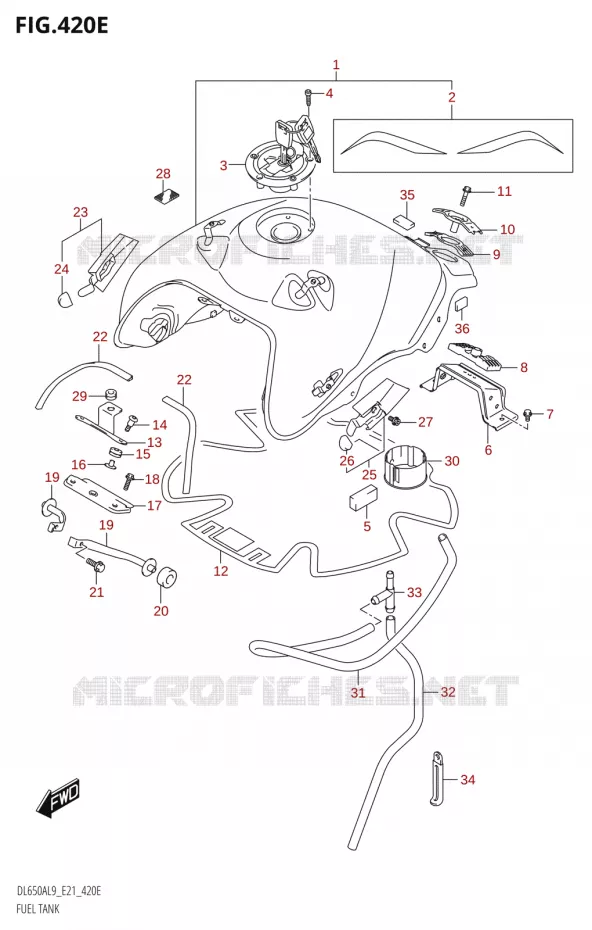

FUEL TANK ESS (DL650XA) Suzuki MOTO 650 V-STROM 2019 DL650XA L9 (E21)
1
1
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
TANK ASSY, FUEL (YELLOW)

44100-28KD0-YU1   4410028KD0YU1

4410028KD0YU1
Not available
1
TANK ASSY, FUEL (WHITE)

44100-28KD0-YWW   4410028KD0YWW

4410028KD0YWW
Not available
1
TANK ASSY, FUEL (RED)

44100-28KD0-YYG   4410028KD0YYG

4410028KD0YYG
Not available
2
.TAPE SET, FUEL TANK (BLUE/WHITE)

68110-28K10-AJP   6811028K10AJP

6811028K10AJP
Not available
2
.TAPE SET, FUEL TANK (RED/BLACK)

68110-28K10-AV4   6811028K10AV4

6811028K10AV4
Not available
2
.TAPE SET, FUEL TANK

68110-28K10-BT1   6811028K10BT1

6811028K10BT1
Not available
3
CAP SET, FUEL TANK FILLER

44200-17820-000   4420017820000

4420017820000

Unit Price

4
BOLT, FUEL TANK FILLER CAP

44244-11J00-000   4424411J00000

4424411J00000

Unit Price

5
CUSHION, FUEL TANK SIDE

44541-28K00-000   4454128K00000

4454128K00000

Unit Price

6
BRACKET, FUEL TANK RR
BRACKET, FUEL TANK REAR

44550-06G10-000   4455006G10000

4455006G10000

Unit Price

7
BOLT

01550-0816A-000   015500816A000

015500816A000

Unit Price

8
CUSHION, FUEL TANK RR LWR
CUSHION, FUEL TANK REAR LOWER

44545-06G00-000   4454506G00000

4454506G00000

Unit Price

9
CUSHION, FUEL TANK RR UPR
CUSHION, FUEL TANK REAR UPPER

44542-06G00-000   4454206G00000

4454206G00000

Unit Price

10
BRACKET, FUEL TANK RR UP
BRACKET, FUEL TANK REAR UP

44530-06G00-000   4453006G00000

4453006G00000

Unit Price

11
BOLT
BOLT

01550-0835A-000   015500835A000

015500835A000
Not available
12
SHIELD, FUEL TANK CTR
SHIELD, FUEL TANK CENTER

44194-11J00-000   4419411J00000

4419411J00000

Unit Price

13
BRACKET, FR COVER
BRACKET, FRONT COVER

44154-11J00-000   4415411J00000

4415411J00000

Unit Price

14
SCREW (6X25)

09139-06192-000   0913906192000

0913906192000

Unit Price

15
CUSHION, FUEL TANK FR

44511-16G00-000  

44511-16G01-000
 4451116G00000

Unit Price

16
SPACER, FUEL TANK, FR

44512-16G00-000   4451216G00000

4451216G00000

Unit Price

17
BRACKET, FUEL TANK FR
BRACKET, FUEL TANK FRONT

44520-11J00-000   4452011J00000

4452011J00000

Unit Price

18
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

19
BRACKET, FR SIDE
BRACKET, FRONT SIDE

44560-11J00-000   4456011J00000

4456011J00000

Unit Price

20
CUSHION, FR SIDE BRKT
CUSHION, FRONT SIDE BRKT

44542-11J00-000   4454211J00000

4454211J00000

Unit Price

21
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

22
MOLDING, FUEL TANK

68241-11J01-000  

6824111J01000
Not available
23
BRACKET, FUEL TANK COVER RH

44130-28K00-000   4413028K00000

4413028K00000

Unit Price

24
.CUSHION

09329-18001-000   0932918001000

0932918001000

Unit Price

25
BRACKET, FUEL TANK COVER LH

44140-28K00-000   4414028K00000

4414028K00000

Unit Price

26
.CUSHION

09329-18001-000   0932918001000

0932918001000

Unit Price

27
BOLT

07120-0610A-000  

07120-0610B-000
 071200610A000

Unit Price

28
FASTENER, COWLING
FASTENER, COWLING (20X15X0.8)

44572-37H00-000   4457237H00000

4457237H00000

Unit Price

29
CUSHION
CUSHION

09320-06504-000   0932006504000

0932006504000

Unit Price

30
VESSEL, FUEL TANK INNER

44121-28K01-000   4412128K01000

4412128K01000

Unit Price

31
HOSE, FUEL TANK DRAIN NO.1

44423-28K01-000   4442328K01000

4442328K01000

Unit Price

32
HOSE, FUEL TANK DRAIN NO.2

44423-11J31-000   4442311J31000

4442311J31000

Unit Price

33
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

34
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

35
CUSHION(15X27X2)
CUSHION, SEAT TAIL COV LWR RR

45516-01H00-000   4551601H00000

4551601H00000

Unit Price

36
CUSHION, FRAME COVER FR RR
CUSHION, FRAME COVER FRONT RR

47122-28K00-000   4712228K00000

4712228K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK ESS (DL650XA) of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2019

Select your Suzuki 2019 model

Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Champion Yellow No.2 (YU1)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Candy Daring Red (YYG)

V-STROM 650 XT ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650XA L9 (E21)
Color: Pearl Glacier White (YWW) / Champion Yellow No.2 (YU1) / Candy Daring Red (YYG)
