Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI V-STROM 650 2019

GEAR SHIFTING ASSY

Item numbers

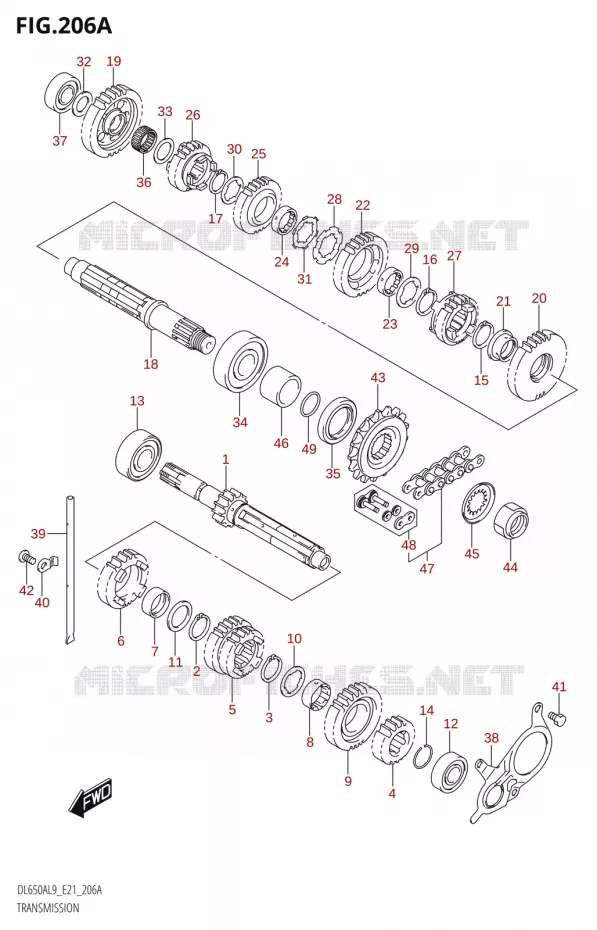

TRANSMISSION Suzuki MOTO 650 V-STROM 2019 DL650XA L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
SHAFT, COUNTER
SHAFT, COUNTER (NT:13)

24120-27G00-000   2412027G00000

2412027G00000

Unit Price

2
CIRCLIP
CIRCLIP

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

3
CIRCLIP
CIRCLIP

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

4
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:18)

24221-20F10-000   2422120F10000

2422120F10000

Unit Price

5
GEAR,3RD & 4TH DRIVE<br />GEAR,3RD & 4TH DRIVE (NT:21/24)
GEAR, 3RD & 4TH DRIVE
GEAR, 3RD & 4TH DRIVE (NT:21/24)

24231-20F10-000   2423120F10000

2423120F10000

Unit Price

6
GEAR,5TH DRIVE (NT:26)
GEAR, 5TH DRIVE (NT:26)

24251-20F02-000   2425120F02000

2425120F02000

Unit Price

7
BUSH
BUSH

24252-19F00-000   2425219F00000

2425219F00000

Unit Price

8
BUSH,6TH DRIVE GEAR
BUSH, 6TH DRIVE GEAR

24252-38A10-000   2425238A10000

2425238A10000

Unit Price

9
GEAR, 6TH DRIVE(NT:27)
GEAR, 6TH DRIVE GEAR (NT:27)

24261-20F00-000   2426120F00000

2426120F00000

Unit Price

10
WASHER,LOCK<br />WASHER,LOCK (25.1X33X1.0)
WASHER, LOCK
WASHER, LOCK (25.1X33X1.0)

09167-25021-000   0916725021000

0916725021000

Unit Price

11
WASHER,5TH DRIVE GEA<br />SHIM (25X34X1)
WASHER, 5TH DRIVE GEA
SHIM (25X34X1)

09181-25167-000   0918125167000

0918125167000

Unit Price

12
BEARING (17X40X12)
BEARING (17X40X12)

09262-17046-000   0926217046000

0926217046000

Unit Price

13
BEARING (20X52X15)
BEARING (20X52X15)

09262-20145-000   0926220145000

0926220145000

Unit Price

14
CIRCLIP
CIRCLIP

09380-25012-000   0938025012000

0938025012000

Unit Price

15
CIRCLIP
CIRCLIP

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

16
CIRCLIP
CIRCLIP

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

17
CIRCLIP
CIRCLIP

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

18
SHAFT COMP, DRIVE
SHAFT, DRIVE

24130-44H30-000   2413044H30000

2413044H30000

Unit Price

19
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:32)

24311-44H00-000   2431144H00000

2431144H00000

Unit Price

20
GEAR, 2ND DRIVEN
GEAR, 2ND DRIVEN (NT:32)

24321-44H10-000  

2432144H10000
Not available
21
BUSH, 2ND DRIVEN GEAR

24322-19F10-000   2432219F10000

2432219F10000

Unit Price

22
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:29)

24331-44H00-000   2433144H00000

2433144H00000

Unit Price

23
BUSH, DRIVEN GEAR

24332-24510-000   2433224510000

2433224510000

Unit Price

24
BUSH, DRIVEN GEAR

24332-24510-000   2433224510000

2433224510000

Unit Price

25
GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:27)

24341-44H00-000   2434144H00000

2434144H00000

Unit Price

26
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:25)

24351-44H10-000  

2435144H10000
Not available
27
GEAR, 6TH DRIVEN
GEAR, 6TH DRIVEN (NT:23)

24361-44H00-000   2436144H00000

2436144H00000

Unit Price

28
LOCK WASHER<br />WASHER,LOCK (25.1X41X1.5)
LOCK WASHER
WASHER, LOCK (25.1X41X1.5)

09167-25013-000   0916725013000

0916725013000

Unit Price

29
WASHER,LOCK<br />WASHER,LOCK (25.1X33X1.0)
WASHER, LOCK
WASHER, LOCK (25.1X33X1.0)

09167-25021-000   0916725021000

0916725021000

Unit Price

30
WASHER,LOCK<br />WASHER,LOCK (25.1X33X1.0)
WASHER, LOCK
WASHER, LOCK (25.1X33X1.0)

09167-25021-000   0916725021000

0916725021000

Unit Price

31
LOCK WASHER<br />WASHER (25.1X37X2.5)
LOCK WASHER
WASHER (25.1X37X2.5)

09169-25001-000   0916925001000

0916925001000

Unit Price

32
WASHER<br />SHIM (17X28X1)
WASHER
SHIM (17X28X1)

09181-17195-000   0918117195000

0918117195000

Unit Price

33
SHIM<br />SHIM (20X30X1)
SHIM
SHIM (20X30X1)

09181-20195-000   0918120195000

0918120195000

Unit Price

34
BEARING (25X62X17)
BEARING (25X62X17)

09262-25125-000   0926225125000

0926225125000

Unit Price

35
SEAL, OIL(36X50X6)
OIL SEAL (36X50X6)

09283-36011-000   0928336011000

0928336011000

Unit Price

36
BEARING, 1ST DRIVEN GEAR

09263-20115-000   0926320115000

0926320115000

Unit Price

37
BEARING (17X40X12)
BEARING (17X40X12)

09262-17023-000   0926217023000

0926217023000

Unit Price

38
RETAINER,DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT OIL SEAL

24751-19F10-000   2475119F10000

2475119F10000

Unit Price

39
GUIDE, T/M OIL

24881-12C30-000   2488112C30000

2488112C30000

Unit Price

40
RETAINER,TRANSMISSION OIL
RETAINER, TRANSMISSION OIL

24885-12C10-000   2488512C10000

2488512C10000

Unit Price

41
BOLT
BOLT

01500-0612A-000   015000612A000

015000612A000

Unit Price

42
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

43
SPROCKET COMP, ENGINE

27510-20F20-000  

27510-20F21-000
 2751020F20000

Unit Price

44
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

45
WASHER, LOCK

09167-25028-000   0916725028000

0916725028000

Unit Price

46
SPACER, ENGINE SPROCKET

27531-19F10-000   2753119F10000

2753119F10000

Unit Price

47
CHAIN, DRIVE
CHAIN ASSY, DRIVE (RK525SMOZ8)

27600-06G40-120   2760006G40120

2760006G40120

Unit Price

48
.JOINT SET, DRIVE CHAIN

27620-06G40-000   2762006G40000

2762006G40000

Unit Price

49
O-RING<br />O RING (D:2.4,ID:23.7)
O-RING
O RING (D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2019

Select your Suzuki 2019 model

Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Champion Yellow No.2 (YU1)
650 V-STROM 2019 DL650XA L9 (E21)
Color : Candy Daring Red (YYG)

V-STROM 650 XT ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650XA L9 (E21)
Color: Pearl Glacier White (YWW) / Champion Yellow No.2 (YU1) / Candy Daring Red (YYG)
