SPEEDOMETER PANEL (MODEL K3 / K4) REFER TO FIG.50A(H-10) FOR MODEL K5

SPEEDOMETER PANEL (MODEL K5) FOR SUZUKI BURGMAN 650 2003

WINDSCREEN (AN650K3 / K4 / AK4 / K5) REFER TO FIG.51A(H-12) FOR AN650AK5

Item numbers

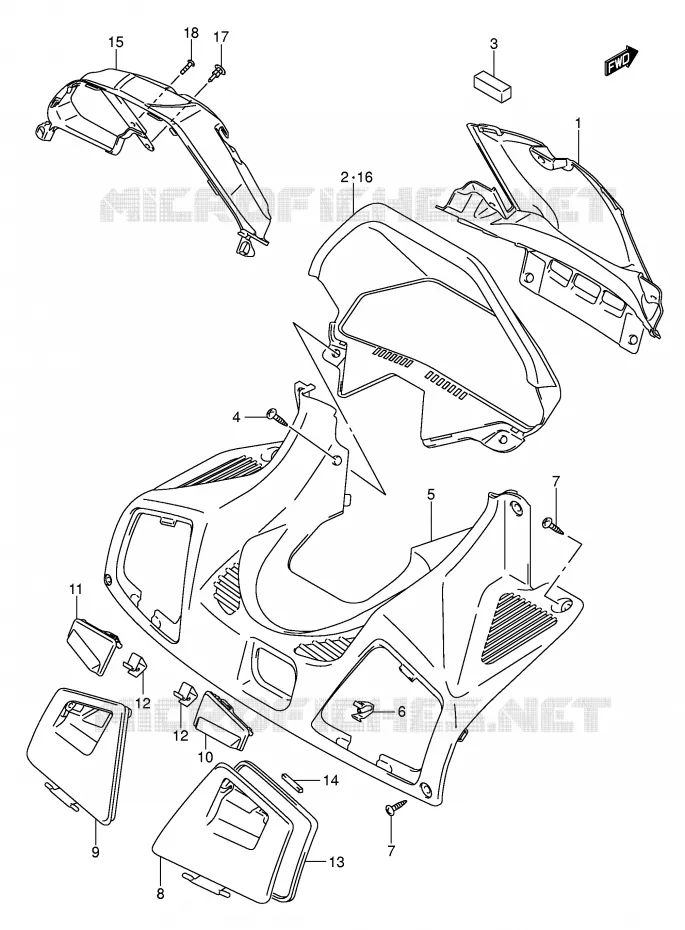

SPEEDOMETER PANEL (MODEL K5) Suzuki SCOOTER 650 BURGMAN 2003 AN650K3(E2)
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
1
PANEL, METER FR
PANEL, METER FRONT (GRAY)

94421-10G01-Y0J   9442110G01Y0J

9442110G01Y0J

Unit Price

2
PANEL, METER RR
PANEL, METER REAR (GRAY)

94420-10G00-Y0J   9442010G00Y0J

9442010G00Y0J

Unit Price

3
CUSHION

94423-10G00-000   9442310G00000

9442310G00000

Unit Price

4
SCREW
SCREW, REAR PANEL

09122-66006-000   0912266006000

0912266006000

Unit Price

5
PANEL, FR
PANEL, FRONT LOWER (GRAY)

94671-10G00-Y0J   9467110G00Y0J

9467110G00Y0J

Unit Price

6
CLIP

09409-08326-000   0940908326000

0940908326000

Unit Price

7
BOLT
SCREW, LOWER PANEL

09132-05053-000   0913205053000

0913205053000

Unit Price

8
LID COMP, FRONT PANEL
LID, FRONT PANEL RH (GRAY)

92140-10G10-Y0J   9214010G10Y0J

9214010G10Y0J

Unit Price

9
LID COMP, FR PANEL
LID, FRONT PANEL LH (GRAY)

92150-10G10-Y0J   9215010G10Y0J

9215010G10Y0J

Unit Price

10
LOCK, FR PANEL BOX, R
LOCK, PANEL RH (GRAY)

92143-10G10-Y0J   9214310G10Y0J

9214310G10Y0J

Unit Price

11
LOCK, FR PANEL BOX, L
LOCK, PANEL LH (GRAY)

92153-10G10-Y0J   9215310G10Y0J

9215310G10Y0J

Unit Price

12
SPRING, FRONT PAN LID
SPRING, LID

92144-10G10-000   9214410G10000

9214410G10000

Unit Price

13
CUSHION, FR PANEL LID
CUSHION

92145-10G00-000   9214510G00000

9214510G00000

Unit Price

14
CUSHION, FR PANEL LID

92146-10G00-000  

92145-10G00-000
 9214610G00000

Unit Price

15
PANEL, METER FR UPR
PANEL, METER FRONT UPPER

94421-10GA0-Y0J   9442110GA0Y0J

9442110GA0Y0J

Unit Price

16
PANEL, METER FR LWR
PANEL, METER FRONT LOWER

94424-10GA0-Y0J   9442410GA0Y0J

9442410GA0Y0J

Unit Price

17
CLIP (BLACK)

09409-08308-5ES   09409083085ES

09409083085ES

Unit Price

18
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER PANEL (MODEL K5) of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
