WATER PUMP (MODEL K3 / K4) REFER TO FIG.18A(C-10) FOR MODEL K5

WATER PUMP (MODEL K5) FOR SUZUKI BURGMAN 650 2003

RADIATOR

Item numbers

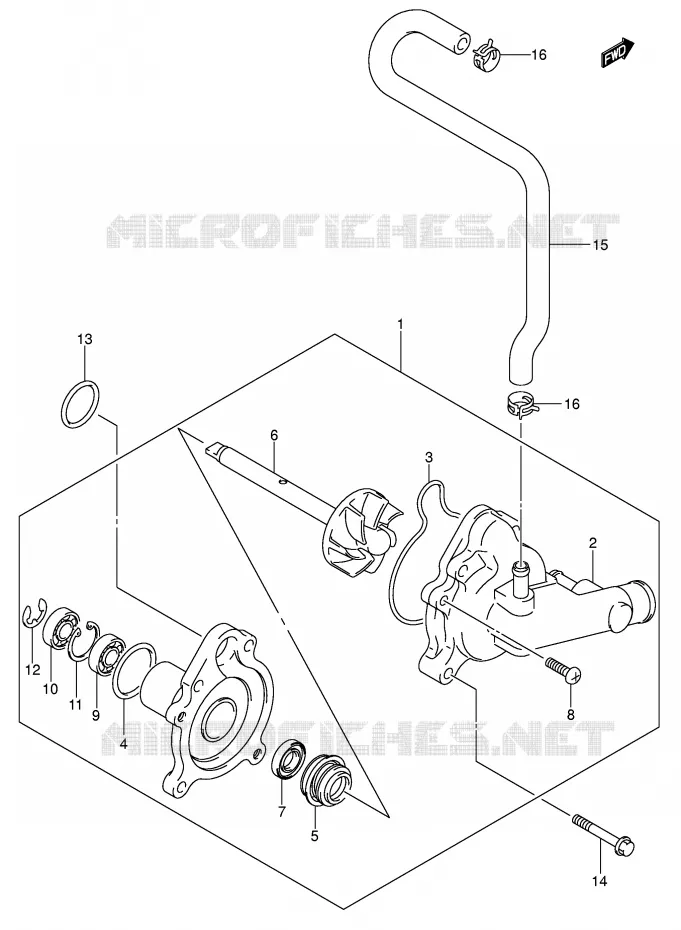

WATER PUMP (MODEL K5) Suzuki SCOOTER 650 BURGMAN 2003 AN650K3(E2)

1

PUMP ASSY, WATER

17400-10G10-000

17400-10G11-000

$343,97

Unit Price

2

COVER

17411-10G10-000 1741110G10000

$138,97

Unit Price

3

O RING

17418-10G10-000 1741810G10000

$18,97

Unit Price

4

O RING, WATER PUMP HOLDER
O RING

17435-33400-000 1743533400000

$16,97

Unit Price

5

SEAL, MECHANICAL

17470-02F10-000

17470-02F11-000

$29,97

Unit Price

6

IMPELLER

17491-10G10-000 1749110G10000

$74,97

Unit Price

7

OIL SEAL, WATER PUMP
OIL SEAL, 10X21X5

09283-10004-000 0928310004000

$7,97

Unit Price

8

SCREW

02112-06163-000

02112-0616A-000

$2,97

Unit Price

9

BEARING

08110-68000-000 0811068000000

$27,97

Unit Price

10

BEARING

08110-69000-000 0811069000000

$27,97

Unit Price

11

CIRCLIP

08331-41206-000 0833141206000

Not available

12

08332-1108A
E RING

08332-11086-000

Not available

13

OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000 0928022001000

$3,97

Unit Price

14

BOLT

01547-06353-000

01547-0635B-000

$4,97

Unit Price

15

HOSE, WATER BYPASS

17856-10G00-000 1785610G00000

$29,97

Unit Price

16

CLIP

09401-12409-000

09401-12414-000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP (MODEL K5) of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
