ELECTRICAL (MODEL K3 / K4) REFER TO FIG.32A(E- 6) FOR MODEL K5

ELECTRICAL (MODEL K5) FOR SUZUKI BURGMAN 650 2004

SPEEDOMETER (AN650K3 / LK3 / K4) REFER TO FIG.33A(E- 8) FOR AN650K5 E2,E19 IMOBI

Item numbers

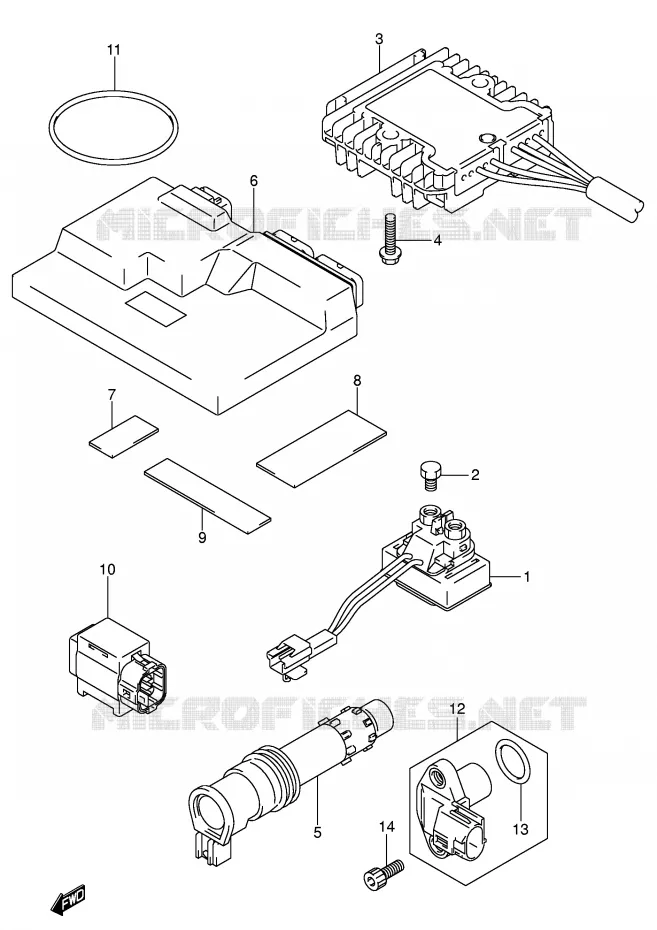

ELECTRICAL (MODEL K5) Suzuki SCOOTER 650 BURGMAN 2004 AN650AK4(E2)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
1
RELAY ASSY, STARTING MOTOR

31800-10G00-000  

31800-10G02-000
 3180010G00000

Unit Price

2
SCREW(6X8)<br />BOLT, STARTING MOTOR (6X8)
SCREW(6X8)
BOLT, STARTING MOTOR (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

3
32800-10G20
RECTIFIER ASSY

32800-10G00-000  

3280010G00000
Not available
4
SCREW

02162-06253-000  

02162-0625A-000
 0216206253000

Unit Price

5
COIL ASSY, IGNITION

33410-35F10-000  

33410-35F11-000
 3341035F10000

Unit Price

6
CONTROL UNIT, FI

32920-10GA0-000   3292010GA0000

3292010GA0000
Not available
6
CONTROL UNIT, FI

32920-10GC0-000   3292010GC0000

3292010GC0000
Not available
7
PROTECTOR(80X80X2)<br />CUSHION, CONTROL (80X80X2)
PROTECTOR(80X80X2)
CUSHION, CONTROL (80X80X2)

33652-07D00-000   3365207D00000

3365207D00000

Unit Price

8
PROTECTOR(80X80X2)<br />CUSHION, CONTROL (80X80X2)
PROTECTOR(80X80X2)
CUSHION, CONTROL (80X80X2)

33652-07D00-000   3365207D00000

3365207D00000

Unit Price

9
PROTECTOR(80X80X2)<br />CUSHION, CONTROL (80X80X2)
PROTECTOR(80X80X2)
CUSHION, CONTROL (80X80X2)

33652-07D00-000   3365207D00000

3365207D00000

Unit Price

10
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

11
O RING
BAND, FI CONTROL (D:3.5, ID:61)

09280-61002-000  

0928061002000
Not available
12
32160-02F00
SENSOR ASSY, CAM POSITION

32160-02F10-000   3216002F10000

3216002F10000

Unit Price

13
PACKING
PACKING

32161-02F00-000   3216102F00000

3216102F00000

Unit Price

14
BOLT

07130-06163-000  

07130-0616B-000
 0713006163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL K5) of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
