SPEEDOMETER (AN650AK5 E24)

HEADLIGHT FOR SUZUKI BURGMAN 650 2004

HEADLIGHT (E19) REFER TO FIG.35A(E-15) FOR E24

Item numbers

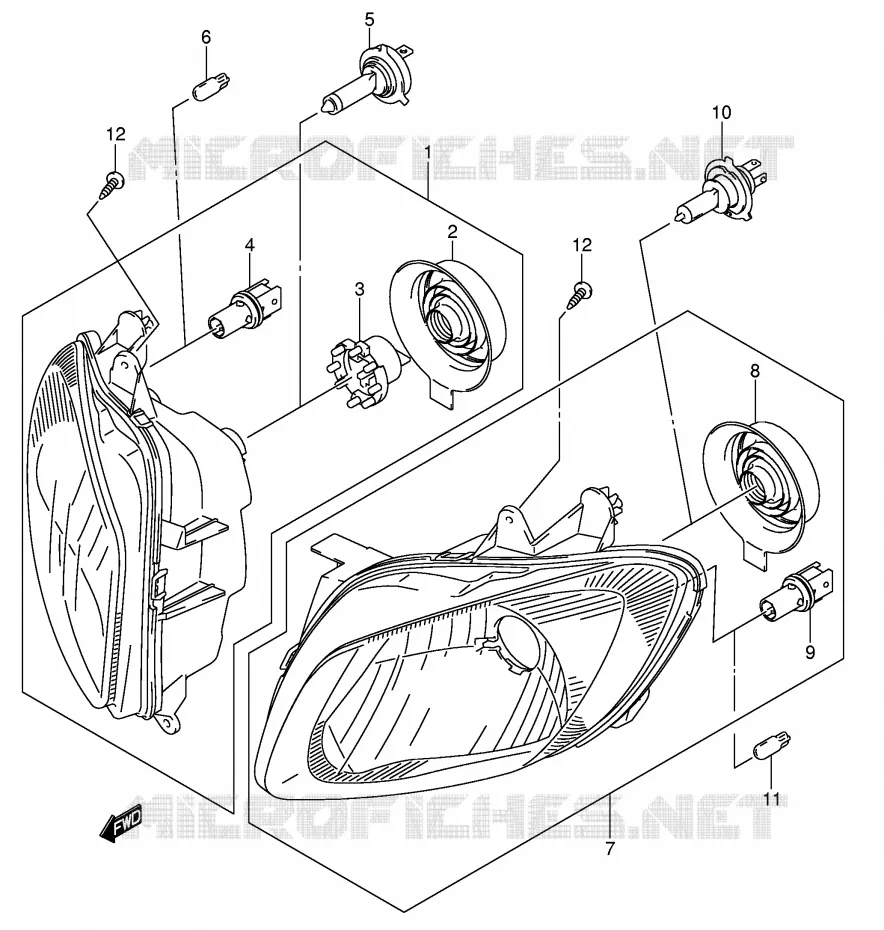

HEADLIGHT Suzuki SCOOTER 650 BURGMAN 2004 AN650AK4(E2)

1

HEADLAMP ASSY RH

35100-10G20-999 3510010G20999

Not available

2

COVER
COVER, SOCKET

35173-42E00-000 3517342E00000

$27,97

Unit Price

3

ADAPTER ASSY
ADAPTOR ASSY

35175-24F00-000 3517524F00000

$27,97

Unit Price

4

SOCKET

36258-10G00-000 3625810G00000

Not available

5

BULB(12V21W)
BULB (55WH7, PX260, PHILIPS)

09471-12188-000

997SO-12188-000

6

09471-12216
BULB (12V, 5W)

09471-12081-000

Not available

7

HEADLAMP ASSY LH

35300-10G20-999 3530010G20999

Not available

7

HEADLAMP ASSY LH

35300-10G21-999 3530010G21999

Not available

8

COVER
COVER, SOCKET

35173-42E00-000 3517342E00000

$27,97

Unit Price

9

SOCKET

36258-10G00-000 3625810G00000

Not available

10

BULB(12V, 5W)
BULB (12V 60/55W, H4)

09471-12060-000

Not available

11

09471-12216
BULB (12V, 5W)

09471-12081-000

Not available

12

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2004
