Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION CASING ASSY

CLUTCH FOR SUZUKI BURGMAN 650 2010

PRIMARY CLUTCH

Item numbers

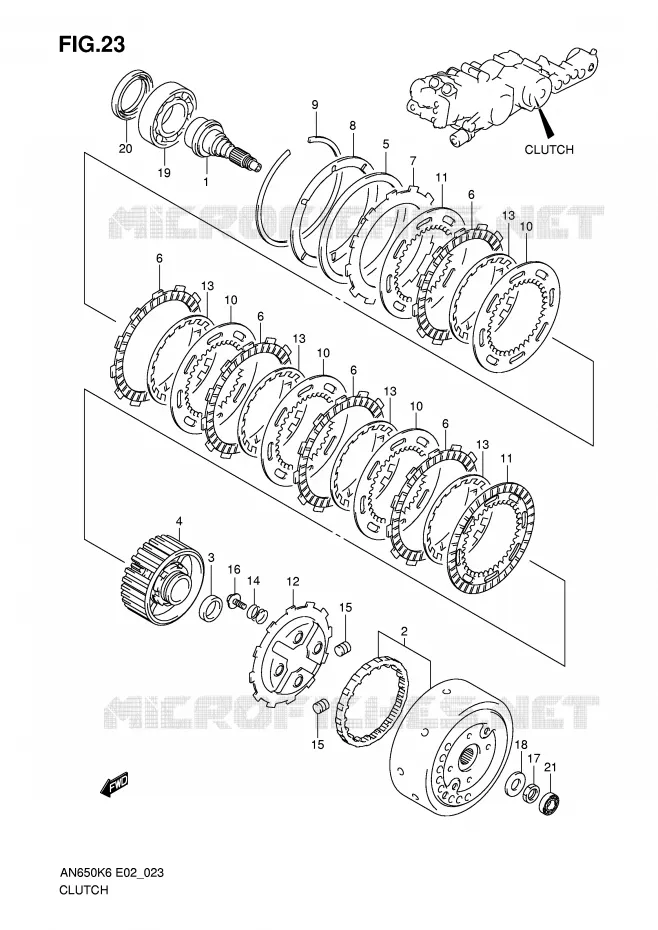

CLUTCH Suzuki SCOOTER 650 BURGMAN 2010 AN650AL0(E2)
1
2
3
4
4
5
6
6
6
6
6
7
8
9
10
10
10
10
11
11
12
13
13
13
13
13
14
15
15
16
17
18
19
20
21
1
SHAFT, CLUTCH(NT:42)
SHAFT, CLUTCH

21421-10G00-000   2142110G00000

2142110G00000

Unit Price

2
HOUSING SET, CLUTCH

21221-10830-000   2122110830000

2122110830000

Unit Price

3
SPACER, CLUTCH HOUSING

21222-10G00-000   2122210G00000

2122210G00000

Unit Price

4
GEAR SET, HUB CLUTCH SLEEVE
GEAR SET, HUB CLUTCH

21321-10821-000   2132110821000

2132110821000

Unit Price

4
DISCONTINUE
GEAR SET, HUB CLUTCH

21321-10811-000   2132110811000

2132110811000
Not available
5
WASHER, CLUTCH SPRING WAVE

21412-10G00-000   2141210G00000

2141210G00000

Unit Price

6
PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE

21441-24F00-000  

2144124F00000
Not available
7
PLATE, CLUTCH DRIVE OUTER

21443-10G00-000   2144310G00000

2144310G00000

Unit Price

8
SEAT, CLUTCH SPRING

21446-10G00-000   2144610G00000

2144610G00000

Unit Price

9
CIRCLIP, CLUTCH OUTER PLATE
CIRCLIP, CLUTCH OUTER

21447-10G00-000   2144710G00000

2144710G00000

Unit Price

10
PLATE, CLUTCH DRIVEN NO.1
PLATE, CLUTCH DRIVEN

21451-10G10-000   2145110G10000

2145110G10000

Unit Price

11
PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN

21452-10G10-000   2145210G10000

2145210G10000

Unit Price

12
PLATE, CLUTCH INNER

21465-10G00-000   2146510G00000

2146510G00000

Unit Price

13
WASHER, CLUTCH PLATE

21472-10G10-000   2147210G10000

2147210G10000

Unit Price

14
SPRING, CLUTCH REACTION

21512-10G00-000   2151210G00000

2151210G00000

Unit Price

15
ROLLER, CLUTCH

21650-10G00-000   2165010G00000

2165010G00000

Unit Price

16
BOLT, 5X16
BOLT, CLUTCH REACTION (5X16)

09116-05020-000   0911605020000

0911605020000

Unit Price

17
NUT
NUT, CLUTCH HOUSING

09140-18016-000   0914018016000

0914018016000

Unit Price

18
WASHER, SHOE CLUTCH
WASHER, CLUTCH HOUSING

09160-18033-000   0916018033000

0916018033000

Unit Price

19
BEARING, 50X72X12
BEARING, CLUTCH SHAFT RH (50X72X12)

09262-50003-000   0926250003000

0926250003000

Unit Price

20
SEAL, 50X64X7
SEAL, CLUTCH SHAFT (50X64X7)

09283-50009-000   0928350009000

0928350009000

Unit Price

21
BEARING, REAR HUB, L

08123-63010-000  

08123-6301B-000
 0812363010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of BURGMAN. Let us know if you have any questions.
