STARTER MOTOR CLUTCH FOR SUZUKI BURGMAN 650 2010

CRANK BALANCER

Item numbers

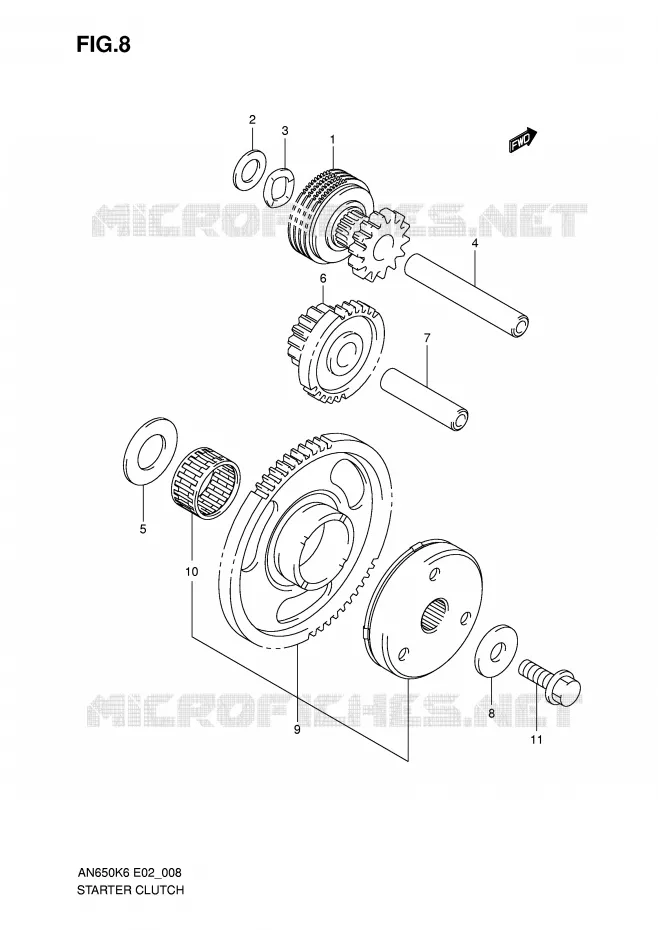

STARTER MOTOR CLUTCH Suzuki SCOOTER 650 BURGMAN 2010 AN650AL0(E2)
1
2
3
4
5
6
7
8
9
10
11
1
LIMITER ASSY, STARTER IDLE GEAR

12600-10G01-000  

12600-10G02-000
 1260010G01000

Unit Price

2
WASHER(13X24X1)
WASHER, LIMITER ASSY THRUST

09160-13006-000   0916013006000

0916013006000

Unit Price

3
WASHER, LIMITER ASSY DAMPER

09164-13008-000   0916413008000

0916413008000
Not available
4
DISCONTINUE
PIN, STARTER IDLE GEAR

09206-13021-000   0920613021000

0920613021000
Not available
5
WASHER<br />WASHER, STARTER CLUTCH
WASHER
WASHER, STARTER CLUTCH

08211-20403-000   0821120403000

0821120403000

Unit Price

6
GEAR, STARTER IDLE NO.2

12612-10G00-000   1261210G00000

1261210G00000

Unit Price

7
PIN(7X12X50.5)<br />PIN, STARTER IDLE GEAR NO.2
PIN(7X12X50.5)
PIN, STARTER IDLE GEAR NO.2

09206-12002-000   0920612002000

0920612002000

Unit Price

8
WASHER
WASHER, STARTER CLUTCH NO.2

08211-10285-000   0821110285000

0821110285000

Unit Price

9
CLUTCH SET, STARTER

12600-10871-000   1260010871000

1260010871000

Unit Price

10
BEARING(28X34X16.8)<br />BEARING, STARTER CLUTCH GEAR
BEARING(28X34X16.8)
BEARING, STARTER CLUTCH GEAR

09263-28031-000   0926328031000

0926328031000

Unit Price

11
BOLT(10X23)<br />BOLT, STARTER ONE WAY CLUTCH
BOLT(10X23)
BOLT, STARTER ONE WAY CLUTCH

09103-10189-000   0910310189000

0910310189000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR CLUTCH of your Suzuki of BURGMAN. Let us know if you have any questions.
