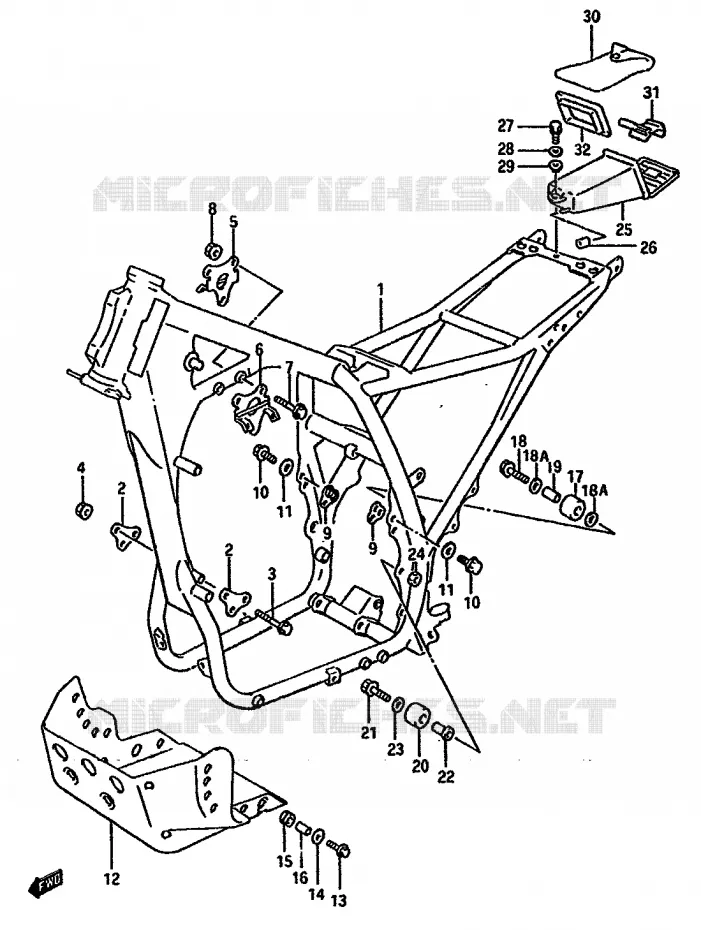

FRAME FOR SUZUKI DR 750 1988

FOOTREST

DISCONTINUE
FRAME (BLUE)

41100-44B00-16L 4110044B0016L

Not available

FRAME (BLUE)

41100-44B20-16L 4110044B2016L

Not available

FRAME (BLUE)

41100-44B20-34S 4110044B2034S

Not available

FRAME (WHITE)

41100-44B40-28W 4110044B4028W

Not available

FRAME (WHITE)

41100-44B50-28W 4110044B5028W

Not available

PLATE, FRONT (BLUE)

41911-44B00-16L 4191144B0016L

Not available

PLATE, FRONT (WHITE)

41911-44B00-28W 4191144B0028W

Not available

PLATE, FRONT (BLUE)

41911-44B00-34S 4191144B0034S

Not available

BOLT, FRONT

09103-08189-000 0910308189000

Not available

NUT

08319-31085-000

08319-3108A-000

$3,97

Unit Price

41890-44B01-16L
PLATE, UPPER RH (BLUE)

41890-44B00-16L

Not available

41990-44B01-16L
PLATE, UPPER LH (BLUE)

41990-44B00-16L

Not available

BOLT

01517-08508-000

01550-08507-000

$6,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

PLATE, REAR (BLUE)

41950-44B00-16L 4195044B0016L

Not available

PLATE, REAR (WHITE)

41950-44B00-28W 4195044B0028W

Not available

PLATE, REAR (BLUE)

41950-44B00-34S 4195044B0034S

Not available

BOLT

01517-08254-000

01550-0825A-000

$3,97

Unit Price

WASHER, LOCK

08321-31084-000

08321-0108B-000

$3,97

Unit Price

DISCONTINUE
PROTECTOR, ENGINE (WHITE)

42511-44B00-30H 4251144B0030H

Not available

BOLT

01107-06207-000

01500-06207-000

$3,97

Unit Price

WASHER(6.5X18X1.6)

09160-06007-000

09160-06084-000

$3,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

SPACER, 6.5X10X7

09180-06011-000

09180-06283-000

$3,97

Unit Price

ROLLER, CHAIN CONTROL
ROLLER, CHAIN UPPER

43911-01B10-000 4391101B10000

$29,97

Unit Price

18A

WASHER.THRUST
WASHER

08211-08221-000 0821108221000

$3,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT

09103-08083-000 0910308083000

$6,97

Unit Price

SPACER

09180-08136-000

09180-08206-000

$17,97

Unit Price

ROLLER, CHAIN CONTROL
ROLLER, CHAIN LOWER

43911-01B10-000 4391101B10000

$29,97

Unit Price

DISCONTINUE
BOLT, LOWER

09103-10197-000 0910310197000

Not available

DISCONTINUE
SPACER

43916-44B00-000 4391644B00000

Not available

SHIM
WASHER

08211-10221-000 0821110221000

$3,97

Unit Price

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

HOLDER, TOOL

47430-44B00-000 4743044B00000

Not available

CUSHION

09329-05006-000 0932905006000

Not available

BOLT

01107-06165-000

01500-06163-000

$3,97

Unit Price

BOLT

01134-06165-000

01137-06165-000

$3,97

Unit Price

08321-0106A
.LOCK WASHER

08321-21064-000

Not available

LOCK WASHER
WASHER

09169-06026-000 0916906026000

$3,97

Unit Price

09800-21024
TOOL ASSY

09800-20012-000

Not available

BAND, TOOL

09462-00091-000 0946200091000

Not available

CUSHION

47437-44B00-000 4743744B00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki DR 750 S of DR. Let us know if you have any questions.
