WIRING HARNESS

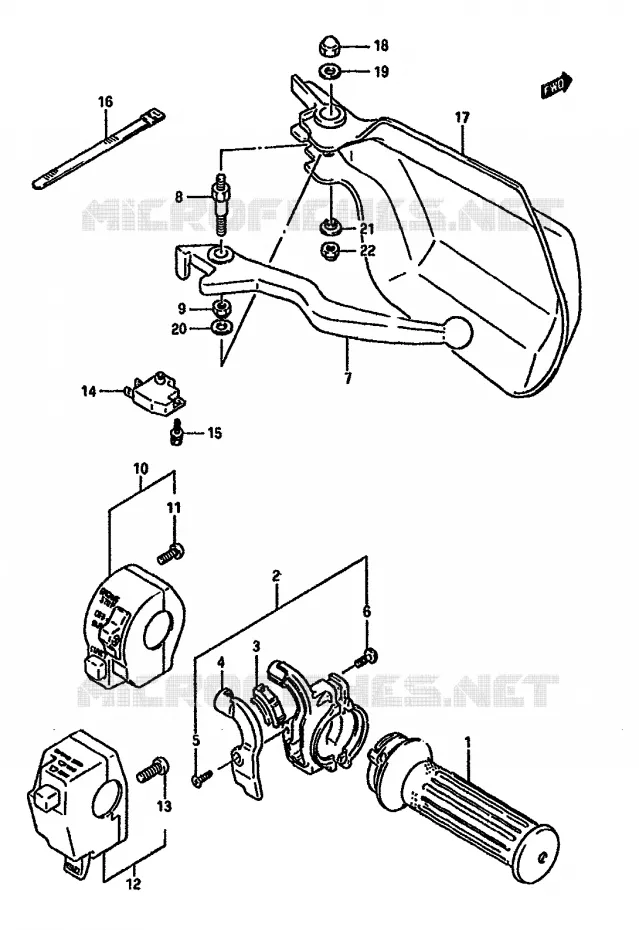

RIGHT SWITCH - HANDGRIP FOR SUZUKI DR 750 1988

LEFT SWITCH - HANDGRIP (MODEL J) REFER TO FIG.42A (G-12) FOR MODEL K

DISCONTINUE
GRIP, THROTTLE

57110-13610-000 5711013610000

Not available

CASE ASSY, THROTTLE

57100-28B00-000

57100-13610-000

$72,97

Unit Price

57122-13610
PIECE

57122-13600-000 5712213600000

Not available

COVER, THROTTLE CASE
COVER

57129-13601-000 5712913601000

$18,97

Unit Price

SCREW

02132-04105-000

02122-04103-000

$3,97

Unit Price

SCREW

02112-05165-000

02112-05164-000

$2,97

Unit Price

LEVER, BRAKE
LEVER

57421-13001-000 5742113001000

$20,97

Unit Price

DISCONTINUE
BOLT

57431-15A00-000 5743115A00000

Not available

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

SWITCH ASSY, HANDLE RH

37200-44B00-000 3720044B00000

Not available

SCREW

02112-04205-000

02112-04203-000

$2,97

Unit Price

SWITCH ASSY, HANDLE RH

37200-44B30-000 3720044B30000

Not available

SCREW

02112-05256-000

02112-05253-000

$2,97

Unit Price

SWITCH ASSY, STOP

57460-17C00-000

57460-14J02-000

$36,97

Unit Price

SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000 5746517C00000

$3,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

GUARD, KNUCKLE RH (RED)

57341-15A01-28V 5734115A0128V

Not available

GUARD, KNUCKLE RH (BLUE)

57341-15A01-34S 5734115A0134S

Not available

GUARD, KNUCKLE RH (ORANGE)

57341-15A01-37F 5734115A0137F

Not available

DISCONTINUE

57341-15A01-38K

Not available

NUT

08313-11065-000

08313-10063-000

$3,97

Unit Price

WASHER 6.5X20X1.6

09160-06102-000

09160-06088-000

$2,97

Unit Price

CLUTCH REL WASHER
WASHER

09160-06019-000 0916006019000

$2,97

Unit Price

WASHER

09169-06055-000 0916906055000

$3,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RIGHT SWITCH - HANDGRIP of your Suzuki DR 750 S of DR. Let us know if you have any questions.
