Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (MODEL F / G) FOR SUZUKI INTRUDER 750 1987

FRAME (MODEL H / J / K / L / M)

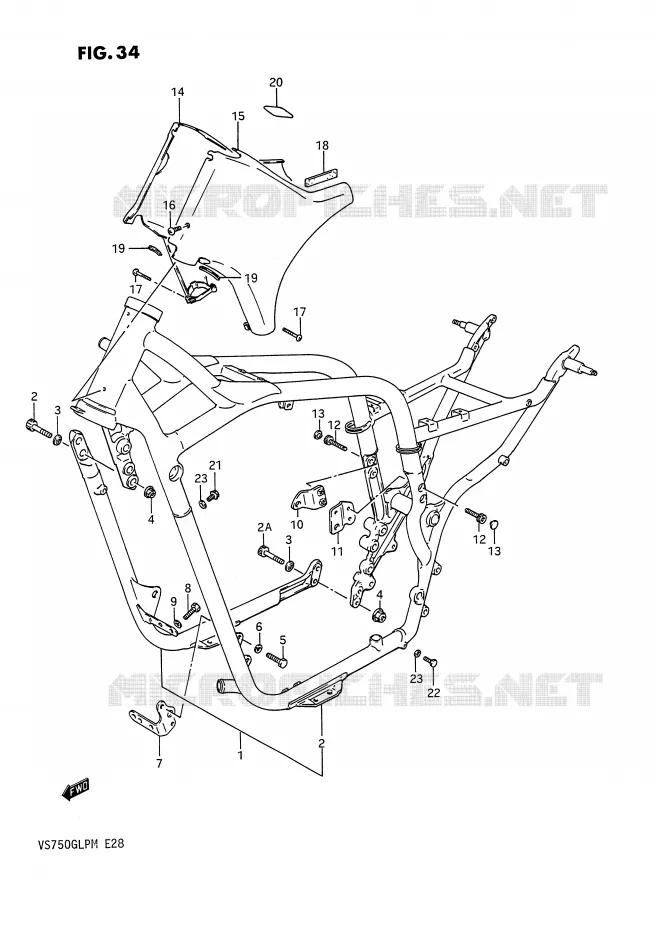

FRAME (MODEL F/G) Suzuki MOTO 750 INTRUDER 1987 VS750GLPH(E28)
1
FRAME (BLACK)

41100-38810-019   4110038810019

4110038810019
Not available
1
FRAME SET (MAROON)

41100-38810-24D   411003881024D

411003881024D
Not available
1
FRAME (BLACK)

41100-38811-019   4110038811019

4110038811019
Not available
1
FRAME (MAROON)

41100-38811-24D   411003881124D

411003881124D
Not available
1
FRAME SET (BLACK)

41100-38840-019   4110038840019

4110038840019
Not available
1
FRAME SET (MAROON)

41100-38840-24D   411003884024D

411003884024D
Not available
2A
BOLT(10X33)<br />BOLT, REAR
BOLT(10X33)
BOLT, REAR

09106-10019-000   0910610019000

0910610019000

Unit Price

2
TUBE, FRAME DOWN (BLACK)

41140-38A00-019   4114038A00019

4114038A00019
Not available
2
TUBE, FRAME DOWN (MAROON)

41140-38A00-24D   4114038A0024D

4114038A0024D
Not available
3
WASHER

09164-10005-000  

09164-10010-000
 0916410005000

Unit Price

4
NUT

08319-31105-000  

08319-3110A-000
 0831931105000

Unit Price

5
BOLT

01107-08205-000  

01500-08203-000
 0110708205000

Unit Price

6
WASHER, LOCK

08321-21084-000  

08321-0108B-000
 0832121084000

Unit Price

7
DISCONTINUE
PLATE, NO.1 LH (BLACK)

41920-38A00-019   4192038A00019

4192038A00019
Not available
7
PLATE, NO.1 LH (MAROON)

41920-38A00-24D   4192038A0024D

4192038A0024D
Not available
8
BOLT

01107-08165-000  

01500-0816B-000
 0110708165000

Unit Price

9
WASHER, LOCK

08321-21084-000  

08321-0108B-000
 0832121084000

Unit Price

10
PLATE, NO.3 RH (BLACK)

41950-38A00-019   4195038A00019

4195038A00019
Not available
10
PLATE, NO.3 RH (MAROON)

41950-38A00-24D   4195038A0024D

4195038A0024D
Not available
11
PLATE, NO.3 LH (BLACK)

41960-38A00-019   4196038A00019

4196038A00019
Not available
11
PLATE, NO.3 LH (MAROON)

41960-38A00-24D   4196038A0024D

4196038A0024D
Not available
12
BOLT

09106-08063-000  

07130-08303-000
 0910608063000

Unit Price

13
CAP, HANDLE CLP BOLT<br />CAP
CAP, HANDLE CLP BOLT
CAP

09250-06004-000   0925006004000

0925006004000

Unit Price

14
DISCONTINUE

47350-38A00-13Z  

4735038A0013Z
Not available
14
DISCONTINUE

47350-38A00-24D  

4735038A0024D
Not available
15
47360-38A01-YAY

47360-38A00-13Z  

4736038A0013Z
Not available
16
SCREW

02142-05104-000  

02142-0510A-000
 0214205104000

Unit Price

17
SCREW

02112-04254-000  

02112-0425B-000
 0211204254000

Unit Price

18
PROTECTOR(80X80X2)

33652-38A10-000  

33652-07D00-000
 3365238A10000

Unit Price

19
MOLDING

68241-38A10-000  

68241-04X50-300
 6824138A10000

Unit Price

20
TAPE, FRAME HEAD COVER

47358-38A00-000   4735838A00000

4735838A00000

Unit Price

21
UNION BOLT

09360-06015-000  

09360-06007-000
 0936006015000

Unit Price

22
BOLT

01517-06105-000  

01550-0610B-000
 0151706105000

Unit Price

23
TACH GEAR WASHER<br />GASKET REFER TO FIG.35 (F-3) FOR MODE
TACH GEAR WASHER
GASKET REFER TO FIG.35 (F-3) FOR MODE

09168-06004-000   0916806004000

0916806004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
