Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI INTRUDER 750 1987

CRANKCASE COVER

Item numbers

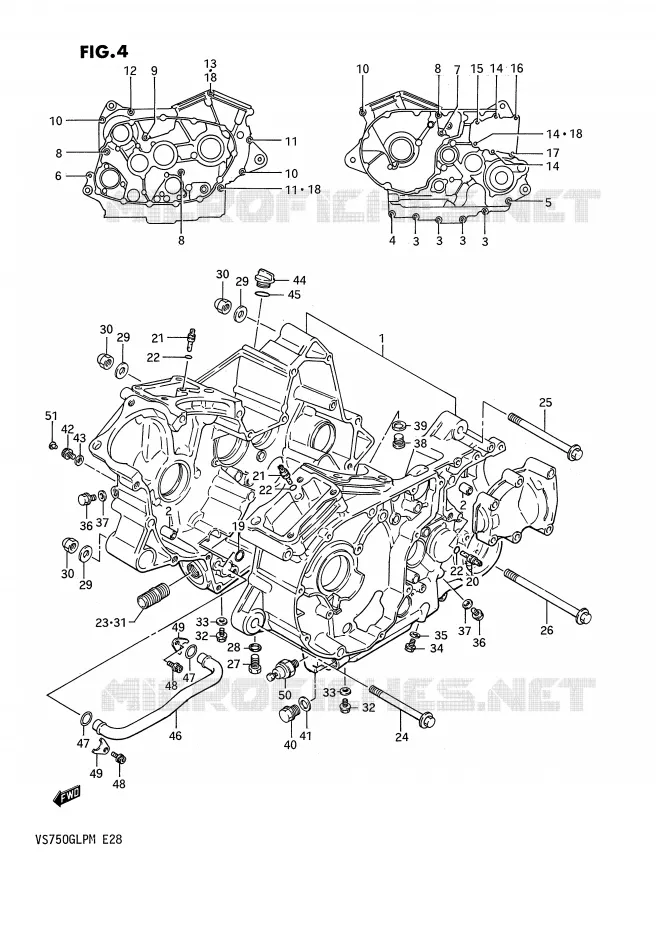

CRANKCASE Suzuki MOTO 750 INTRUDER 1987 VS750GLPH(E28)
2
2
1
CRANKCASE SET

11300-38893-000   1130038893000

1130038893000
Not available
1
DISCONTINUE

11300-38895-000  

1130038895000
Not available
2
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

3
BOLT

01517-06408-000  

01550-06407-000
 0151706408000

Unit Price

4
.BOLT

01517-08358-000   0151708358000

0151708358000
Not available
5
.BOLT, RH

01517-08558-000   0151708558000

0151708558000
Not available
6
BOLT

01517-08608-000  

01550-0860B-000
 0151708608000

Unit Price

7
.BOLT

01517-08758-000   0151708758000

0151708758000
Not available
8
BOLT

01517-08958-000  

01550-08957-000
 0151708958000

Unit Price

9
BOLT,ENG MOUNT<br />BOLT (8X120)
BOLT, ENG MOUNT
BOLT (8X120)

09103-08109-000   0910308109000

0910308109000

Unit Price

10
BOLT (8X95)

09103-08164-000   0910308164000

0910308164000

Unit Price

11
DISCONTINUE
BOLT (8X105)

09103-08165-000   0910308165000

0910308165000
Not available
12
BOLT (8X120)

09103-08166-000   0910308166000

0910308166000
Not available
13
BOLT (8X160)

09103-08167-000   0910308167000

0910308167000
Not available
14
BOLT

01517-08408-000  

0151708408000
Not available
15
BOLT

01517-08508-000  

01550-08507-000
 0151708508000

Unit Price

16
BOLT (8X55)

09103-08162-000   0910308162000

0910308162000
Not available
17
BOLT (8X65)

09103-08163-000   0910308163000

0910308163000
Not available
18
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

19
O RING(D:1.9, ID:12.6)

09280-13007-000  

09280-12009-000
 0928013007000

Unit Price

20
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

21
JET,OIL<br />JET, OIL GALLERY
JET, OIL
JET, OIL GALLERY

09493-28010-000   0949328010000

0949328010000

Unit Price

22
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

23
UNION, OIL FILTER

16591-05A00-000   1659105A00000

1659105A00000
Not available
24
BOLT (10X125)

09103-10141-000   0910310141000

0910310141000

Unit Price

25
BOLT(10X130)

09103-10065-000  

09103-10237-000
 0910310065000

Unit Price

26
BOLT (10X150)
BOLT (10X150)

09103-10078-000   0910310078000

0910310078000

Unit Price

27
BOLT

01107-12208-000  

01500-1220B-000
 0110712208000

Unit Price

28
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
29
WASHER

08322-11104-000  

08322-0110B-000
 0832211104000

Unit Price

30
NUT

09159-10052-000   0915910052000

0915910052000

Unit Price

31
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

32
BOLT

01517-08128-000  

01550-08127-000
 0151708128000

Unit Price

33
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

34
PLUG
PLUG, OIL GALLERY

09247-10008-000   0924710008000

0924710008000

Unit Price

35
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

36
BOLT

01517-06108-000  

01550-0610B-000
 0151706108000

Unit Price

37
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
38
PLUG<br />PLUG, OIL GALLERY
PLUG
PLUG, OIL GALLERY

09248-16008-000   0924816008000

0924816008000

Unit Price

39
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

40
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

41
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

42
PLUG, OIL GALLERY

07120-08127-000   0712008127000

0712008127000
Not available
43
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

44
PLUG, ENG OIL FILLER

09259-20009-000  

09259-20007-000
 0925920009000

Unit Price

45
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

46
PIPE, OIL GALL
PIPE, OIL GALLERY

11451-38A00-000   1145138A00000

1145138A00000

Unit Price

47
O RING(D:3.1, ID:14.8)
O RING

09280-15008-000   0928015008000

0928015008000

Unit Price

48
SCREW

07120-06128-000  

07120-06127-000
 0712006128000

Unit Price

49
CLAMP, OIL PIPE
CLAMP

11461-38A00-000   1146138A00000

1146138A00000

Unit Price

50
SWITCH ASSY, OIL PRESSURE

37820-33200-000  

37820-33D11-000
 3782033200000

Unit Price

51
CAP
CAP

09250-06011-000   0925006011000

0925006011000

Unit Price
