Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GEAR LEVER

FRONT DRIVE SHAFT FOR SUZUKI KINGQUAD 750 2011

REAR WHEEL AXLE

Item numbers

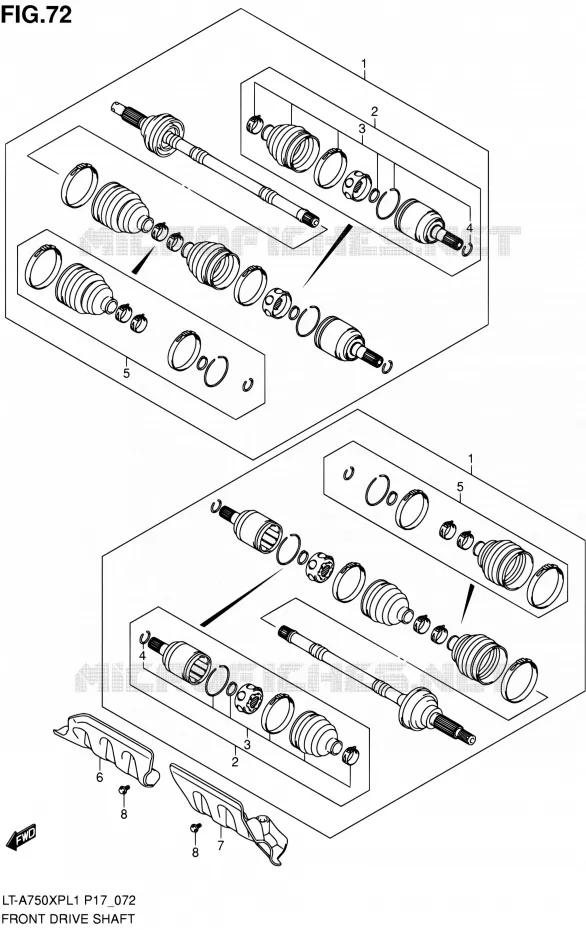

FRONT DRIVE SHAFT Suzuki QUAD 750 KINGQUAD 2011 LT-A750XP L1 (P17,P24)
1
1
2
2
3
3
4
4
5
5
6
7
8
8
1
SHAFT ASSY, FR DRIVE

54901-31G30-000  

54901-31G31-000
 5490131G30000

Unit Price

2
JOINT SET

54933-31G20-000  

54933-31G21-000
 5493331G20000

Unit Price

3
BOOT SET, INNER

54931-31G12-000  

54931-31G13-000
 5493131G12000

Unit Price

4
...CIRCLIP

54925-19B01-000   5492519B01000

5492519B01000

Unit Price

5
BOOT SET

54930-31G20-000  

54930-31G21-000
 5493031G20000

Unit Price

6
54903-31G01
PROTECTOR, DRIVE SHAFT RH

54903-31G00-000   5490331G00000

5490331G00000
Not available
7
54904-31G01
PROTECTOR, DRIVE SHAFT LH

54904-31G00-000   5490431G00000

5490431G00000
Not available
8
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT DRIVE SHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
