REAR SUSPENSION ARM

STEERING LINKAGE - HUB FOR SUZUKI KINGQUAD 750 2011

STEERING COLUMN

Item numbers

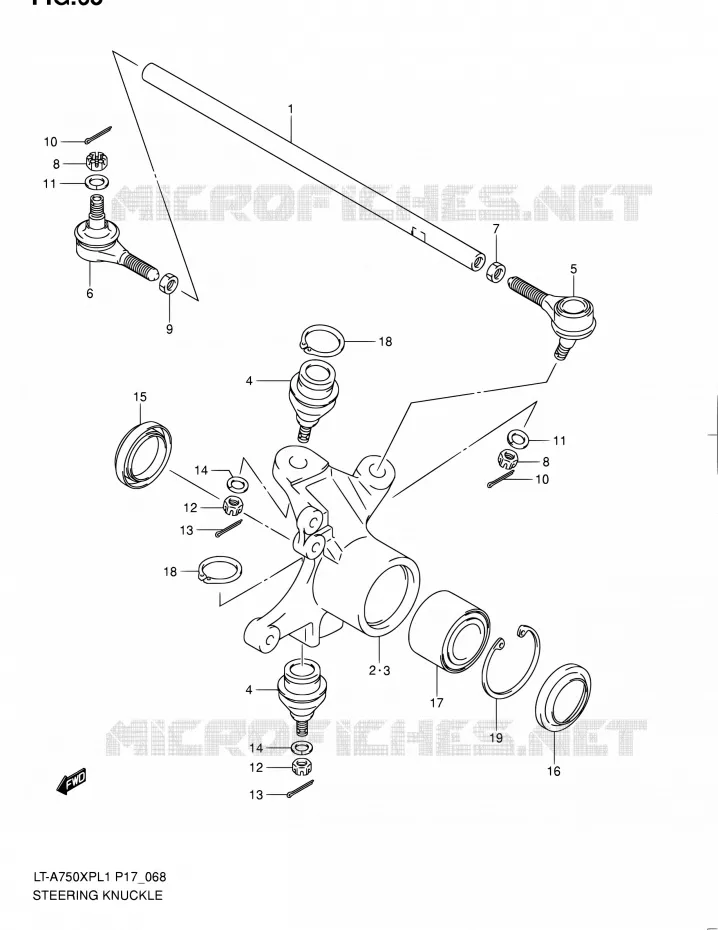

STEERING LINKAGE - HUB Suzuki QUAD 750 KINGQUAD 2011 LT-A750XP L1 (P17,P24)
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
1
TIE ROD, STEERING

51281-31G40-000   5128131G40000

5128131G40000

Unit Price

2
KNUCKLE, STEERING, R
KNUCKLE, STEERING RH

51231-31G20-000   5123131G20000

5123131G20000

Unit Price

3
KNUCKLE, STEERING, L
KNUCKLE, STEERING LH

51241-31G20-000   5124131G20000

5124131G20000

Unit Price

4
END, KNUCKLE STEERING

51210-31G10-000   5121031G10000

5121031G10000

Unit Price

5
END, ROD, R
ROD, END RH

51260-45G00-000   5126045G00000

5126045G00000

Unit Price

6
END, ROD, L
ROD, END LH

51270-45G00-000   5127045G00000

5127045G00000

Unit Price

7
NUT, TIE ROD (RH THREAD)

51283-09F00-000   5128309F00000

5128309F00000

Unit Price

8
NUT
NUT

08314-4010B-000   083144010B000

083144010B000

Unit Price

9
NUT

09140-12035-000   0914012035000

0914012035000

Unit Price

10
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

11
WASHER (10.5X19X2)
WASHER (10.5X19X2)

09160-10082-000   0916010082000

0916010082000

Unit Price

12
NUT
NUT

08314-4010B-000   083144010B000

083144010B000

Unit Price

13
PIN
PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

14
WASHER (10.5X19X2)
WASHER (10.5X19X2)

09160-10082-000   0916010082000

0916010082000

Unit Price

15
SEAL
OIL SEAL (38X55X8)

09283-38012-000   0928338012000

0928338012000

Unit Price

16
SEAL, HUB OUTER
OIL SEAL (38X55X6)

09285-38002-000   0928538002000

0928538002000

Unit Price

17
BEARING, FR HUB

51259-31G00-000  

51259-31G10-000
 5125931G00000

Unit Price

18
CIRCLIP

08331-3130A-000  

08331-31309-000
 083313130A000

Unit Price

19
08331-41559
CLIP

08331-4155A-000  

083314155A000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING LINKAGE - HUB of your Suzuki of KINGQUAD. Let us know if you have any questions.
