CAMSHAFT - VALVES

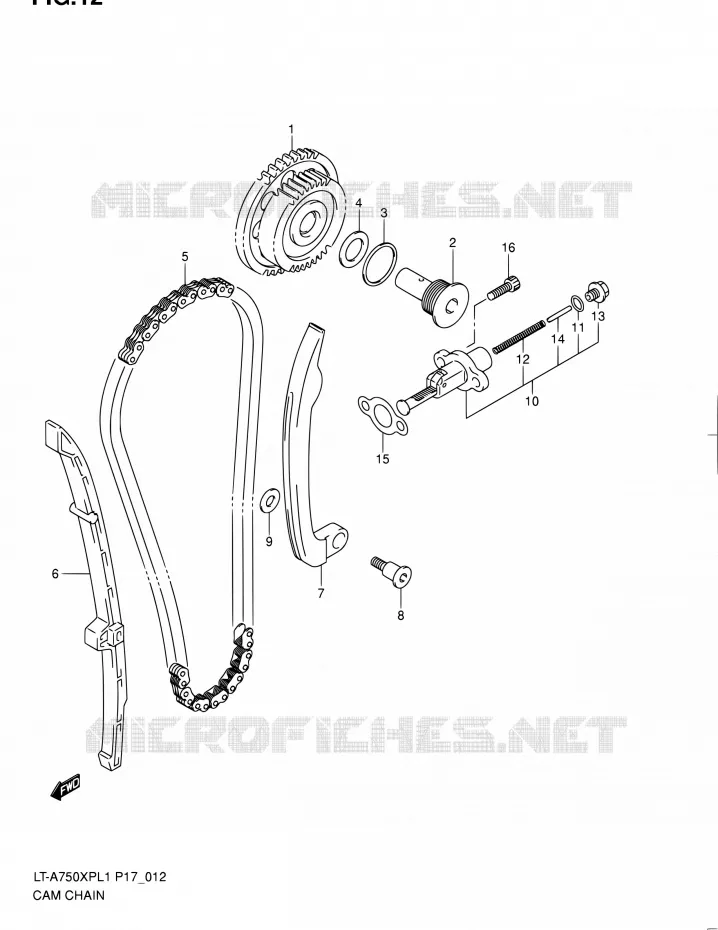

TIMING FOR SUZUKI KINGQUAD 750 2011

THROTTLE BODY

Item numbers

GEAR, CAM CHAIN IDLER

12750-31G00-000 1275031G00000

$163,97

Unit Price

SHAFT, IDLER NO.2
SHAFT, CAM CHAIN IDLER GEAR

12755-02F01-000 1275502F01000

$55,97

Unit Price

GASKET
GASKET (26.5X30.5X1)

09168-26001-000 0916826001000

$9,97

Unit Price

SHIM (15X24X0.9)

09181-15164-000 0918115164000

$5,97

Unit Price

SHIM (15X24X1)

09181-15166-000 0918115166000

$5,97

Unit Price

SHIM (15X24X1.1)

09181-15172-000 0918115172000

$5,97

Unit Price

SHIM (15X24X1.2)

09181-15176-000 0918115176000

$5,97

Unit Price

SHIM (15X24X1.3)

09181-15181-000 0918115181000

$5,97

Unit Price

SHIM (15X24X1.4)

09181-15182-000 0918115182000

$5,97

Unit Price

CHAIN, CAMSHAFT DRIVE

12760-31G00-000 1276031G00000

$135,97

Unit Price

GUIDE, CAM CHAIN

12771-31G00-000 1277131G00000

$43,97

Unit Price

TENSIONER, CAM CHAIN

12811-31G00-000

12811-31G01-000

$75,97

Unit Price

BOLT, CAM CHAIN TENSIONER

12812-31G00-000

Not available

WASHER

08211-08202-000 0821108202000

$2,97

Unit Price

ADJUSTER ASSY, TENSIONER

12830-19B02-000 1283019B02000

$104,97

Unit Price

.O RING

12832-02A00-000 1283202A00000

$4,97

Unit Price

.SPRING

12833-19B00-000 1283319B00000

$4,97

Unit Price

.PLUG

12834-19B00-000 1283419B00000

$18,97

Unit Price

.BAR

12835-19B00-000 1283519B00000

$3,97

Unit Price

GASKET, TENSIONER ADJUSTER

12837-19B10-000 1283719B10000

$3,97

Unit Price

BOLT

07130-0620A-000

07130-0620B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of KINGQUAD. Let us know if you have any questions.
